System design
multi EA 4000 Version 01.16 37
Connections
The connections are located on the rear of the automatic TIC solids module.
1 mains switch
2
gas connection for oxygen at the TIC reactor
3
mains supply module with mains switch and fuse
holder
4
connection "COM module" for connection to the
C/S module
5
connection "valve module" for connection to the
C/S module
6 connection "valve HT" for connection to the
multi EA 4000
5
connection "COM HT" for connection to the
multi EA 4000
8
change-over valve
9
connection for the waste hose to drain the conden-
sate

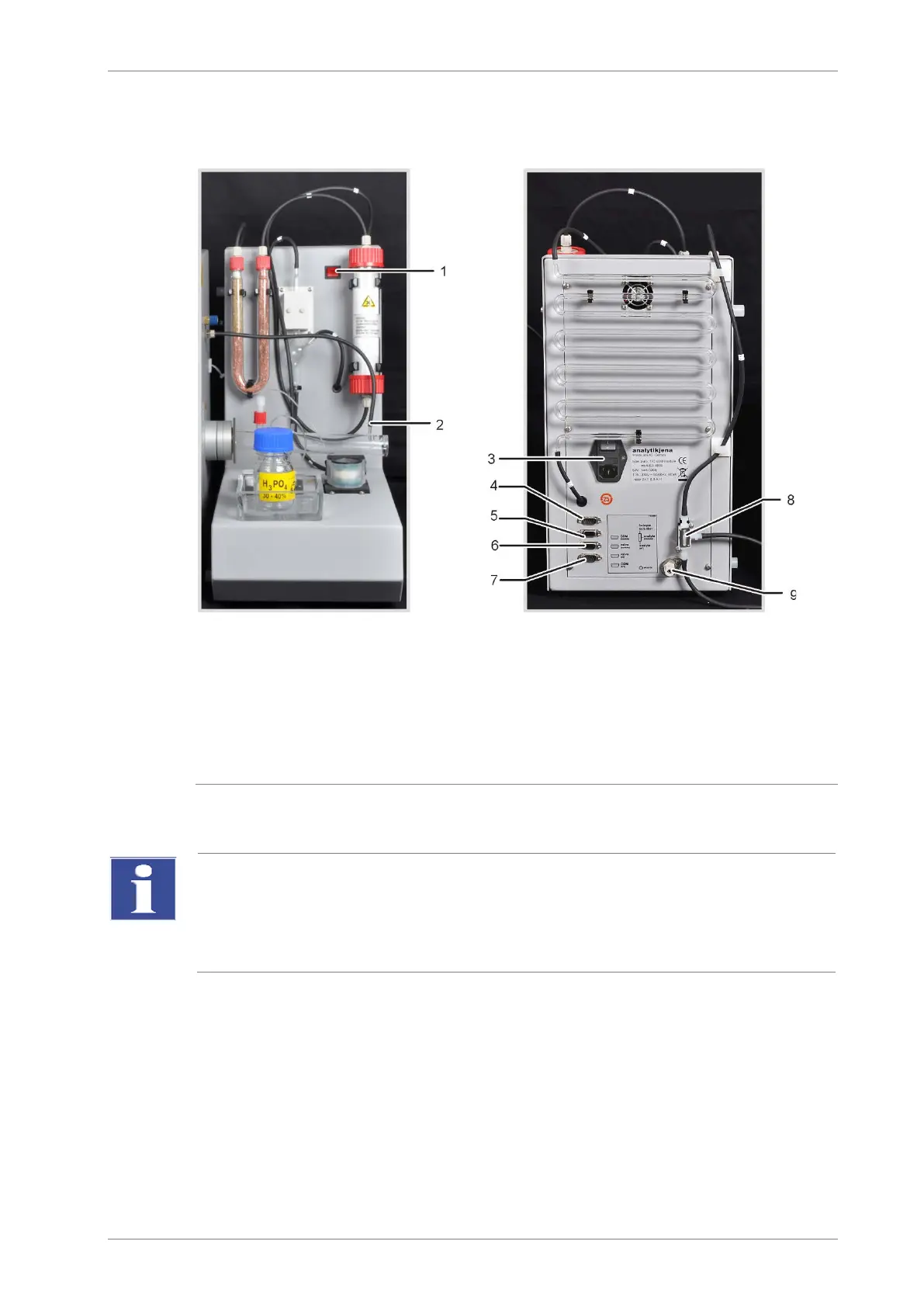

Fig. 23 Connections at the automatic TIC solids module
IMPORTANT
The automatic TIC solids module is equipped with two mains switches. Because the switch
at the mains supply module below the condensate coil is poorly accessible, there is a second
one at the front panel. Both mains switches must be switched on during operation. To switch
the device off it is sufficient to actuate the switch on the front panel.
