8.2.4 Replacing the halide trap
Halide traps are used in the following measurement arrangements:
 TC measurement at the basic device multi EA 4000
 Cl measurement in the Cl module
 TIC measurement in the corresponding TIC solids modules
CAUTION
Damage to optical and electronic components (detectors, flow sensors) from aggressive
combustion products if the copper wool in th
e halogen trap is used up!
Replace the complete filling of the halogen trap as soon as half of the copper wool or the
brass wool is discolored.

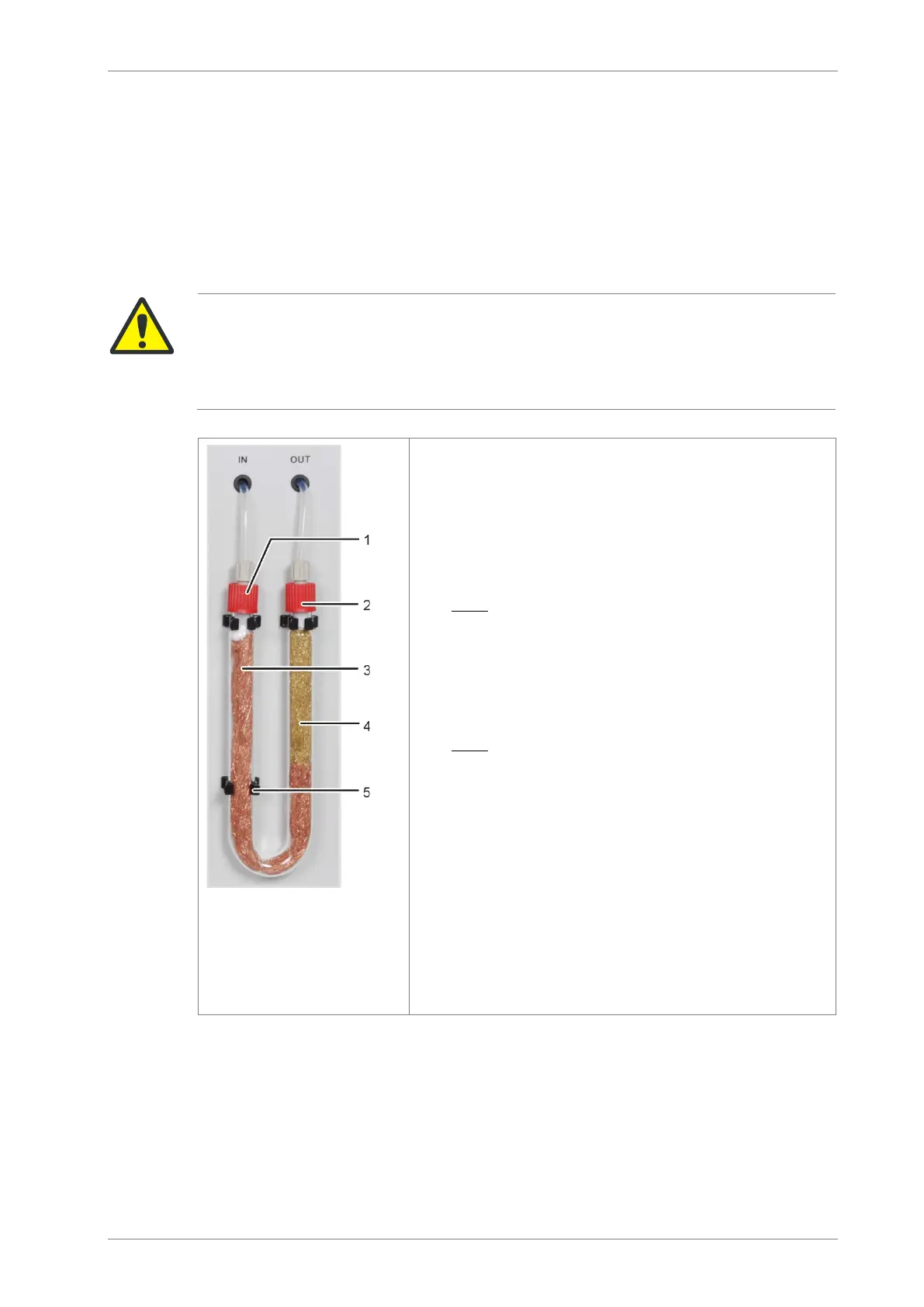

1 gas inlet
2 gas outlet
3 copper wool
4 brass wool
5 clamp
1. Pull the U tube out of the holder.
2. Unscrew the red union nuts from the U tube and pull
the U tube out of the clamps (3).
3. Pull out the depleted copper or brass wool from the U-
tube with a tweezers or a small hook.
4. Check the U-tube for cracks.
Note:
Only reuse a fully intact U tube!
5. If required, flush the U-tube with ultrapure water and
leave to dry completely.
6. Fill the U-tube with new copper and brass wool using
tweezers or a small hook.
Note:
Replace the complete content of the U tube. When fill-
ing the halogen trap make sure that the copper and
brass wool is not compacted too much and no larger
empty spaces are created in the U-tube.
7. Cover the copper and brass wool with cotton wool.
8. Press the filled U tube carefully into the clamps.
9. Connect the gas inlet to the branch with copper wool
and the gas outlet to the branch with brass wool.
