System design
multi EA 4000 Version 01.16 41
1 drying tube
2
water traps
3
halide trap

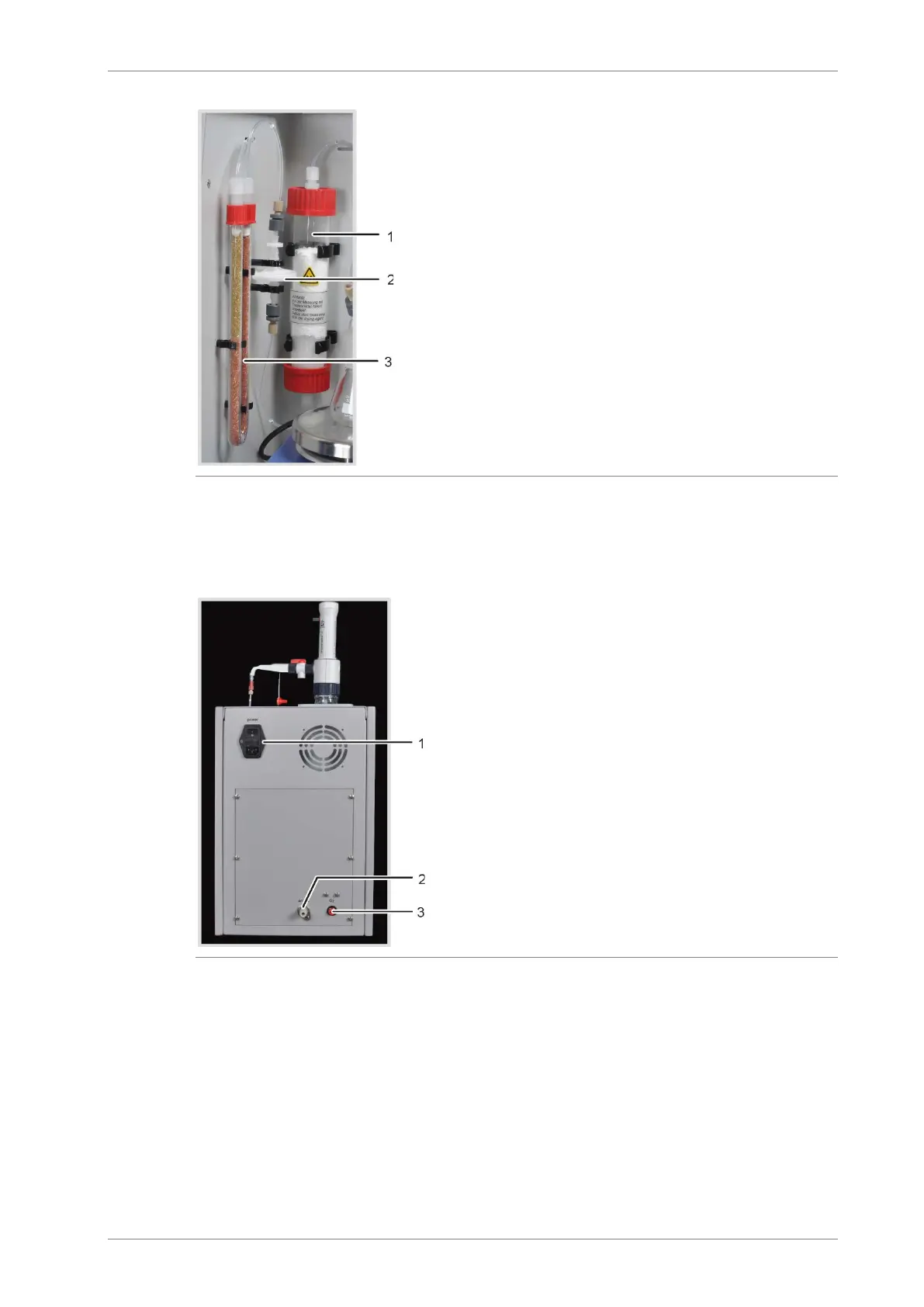

Fig. 28 Components for measuring gas drying and cleaning at the manual TIC solids
module
Connections
1 mains supply module with mains switch and fuse
holder
2
measuring gas outlet "analyte"
3
carrier gas connection "O
2
"
Fig. 29 Connections at the manual TIC solids module
