7.3.3 Oil replacing
Make sure that the machine is on a flat area, prepare suitable oil drain tanks, unscrew oil drain plugs.
Wait for the total oil drain.
AXLE CENTRAL BODY
The different rooms of the axle are linked together and the level plug shows the correct oil level.
Pour oil through the filling plugs until the oil comes out of the level plug.

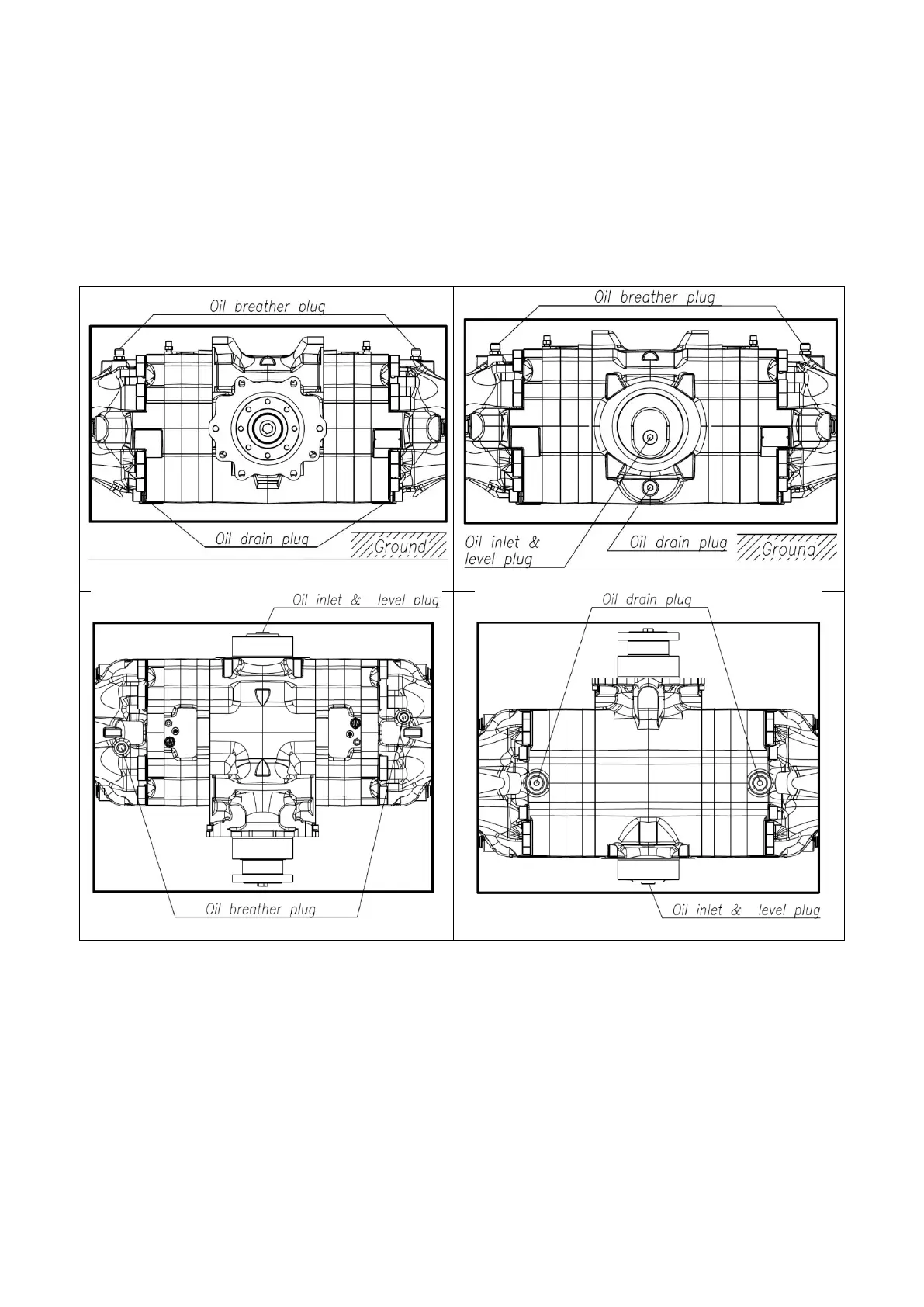

Rear view
Front view
Top view
Bottom view
