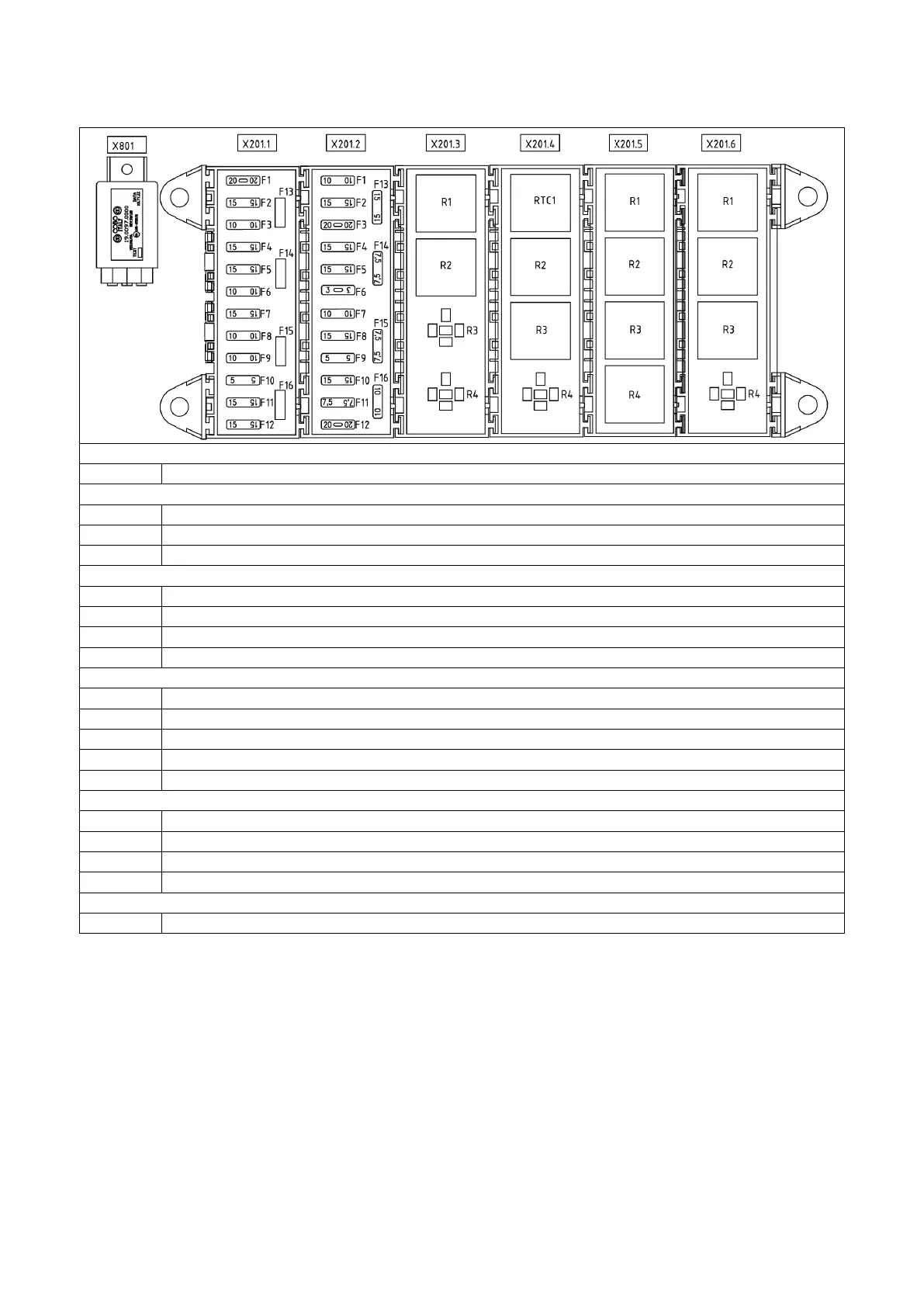

7.20.2 D754IE3 fuses box / Extended version
DESCRIPTION OF THE RELAYS
Nr
Function
X201.3
R1
Sprayer fan clutch
R2
Sprayer fan enable
X201.4
RTC1
Alternator W signal - Clucthes enable
R2
A/C compressor
R3
Engine stop
X201.5
R1
Chemicals pump enable
R2
Chemicals pump clutch
R3
Dump valve
R4
Dump valve
X201.6
R1
AC Fan - 1 speed
R2
AC Fan - 2 speed
R3
AC Fan - 3 speed
X801
Flashers
