Self-propelled sprayer ATOM
7.10 HYDRAULIC CIRCUIT
Check frequently hydraulic components and hoses to avoid damages and cuts, check also that all fittings are
tightened and there are no leaks.
In case of worn out of parts, replace immediately with genuine spare parts.
Do not exceed the maximum tightening torque for hydraulic fittings.
The machines uses hydraulic oil for the hydrostatic transmission and steering.

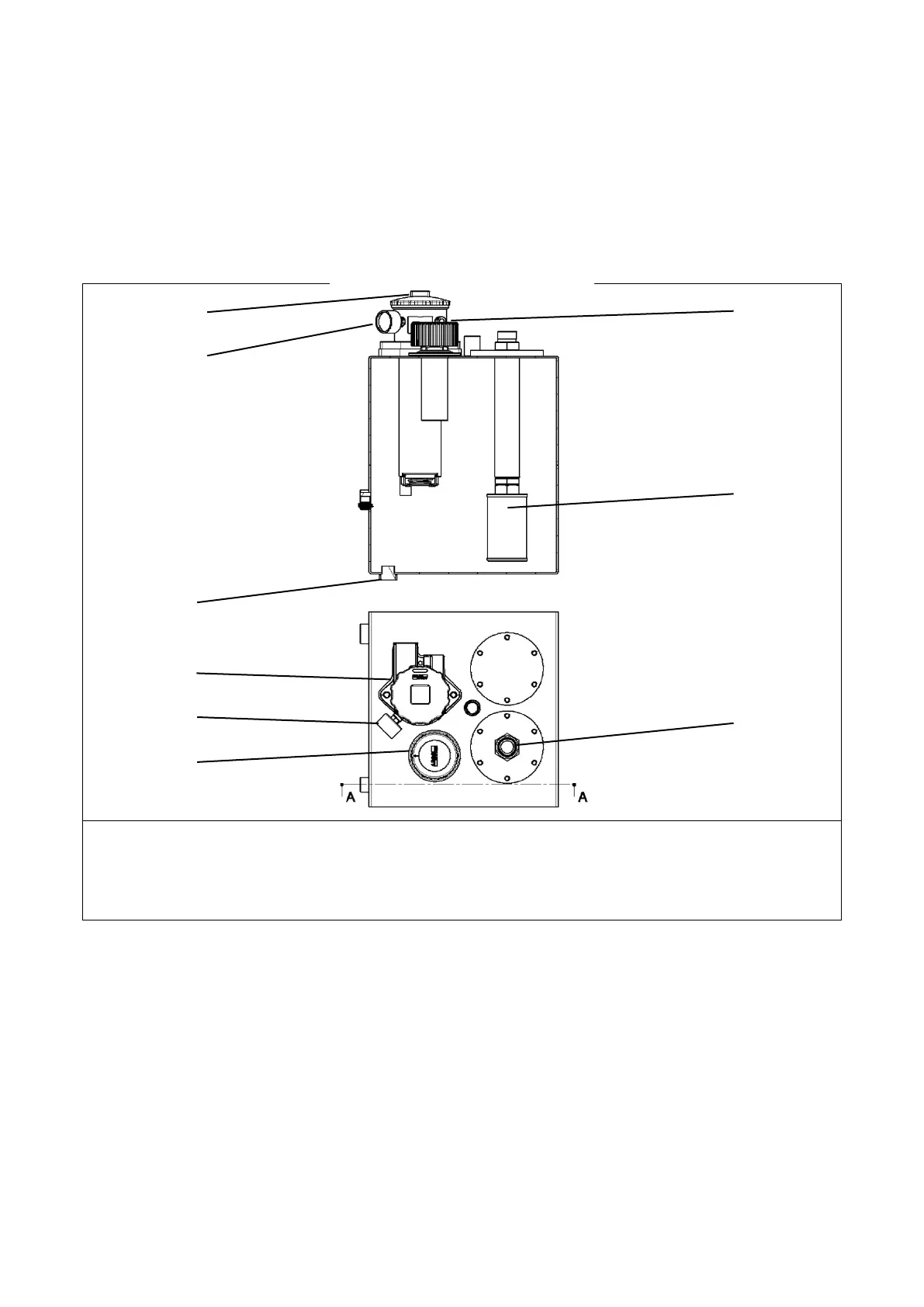

The following drawing shows the tank and the filters.
1) Main suction/return filter
2) Pressurized filling cap
3) Suction filter
4) Drain plug
5) Clogging indicator
