ANDREOLI ENGINEERING Operator’s Manual
Self-propelled sprayer ATOM
60/166

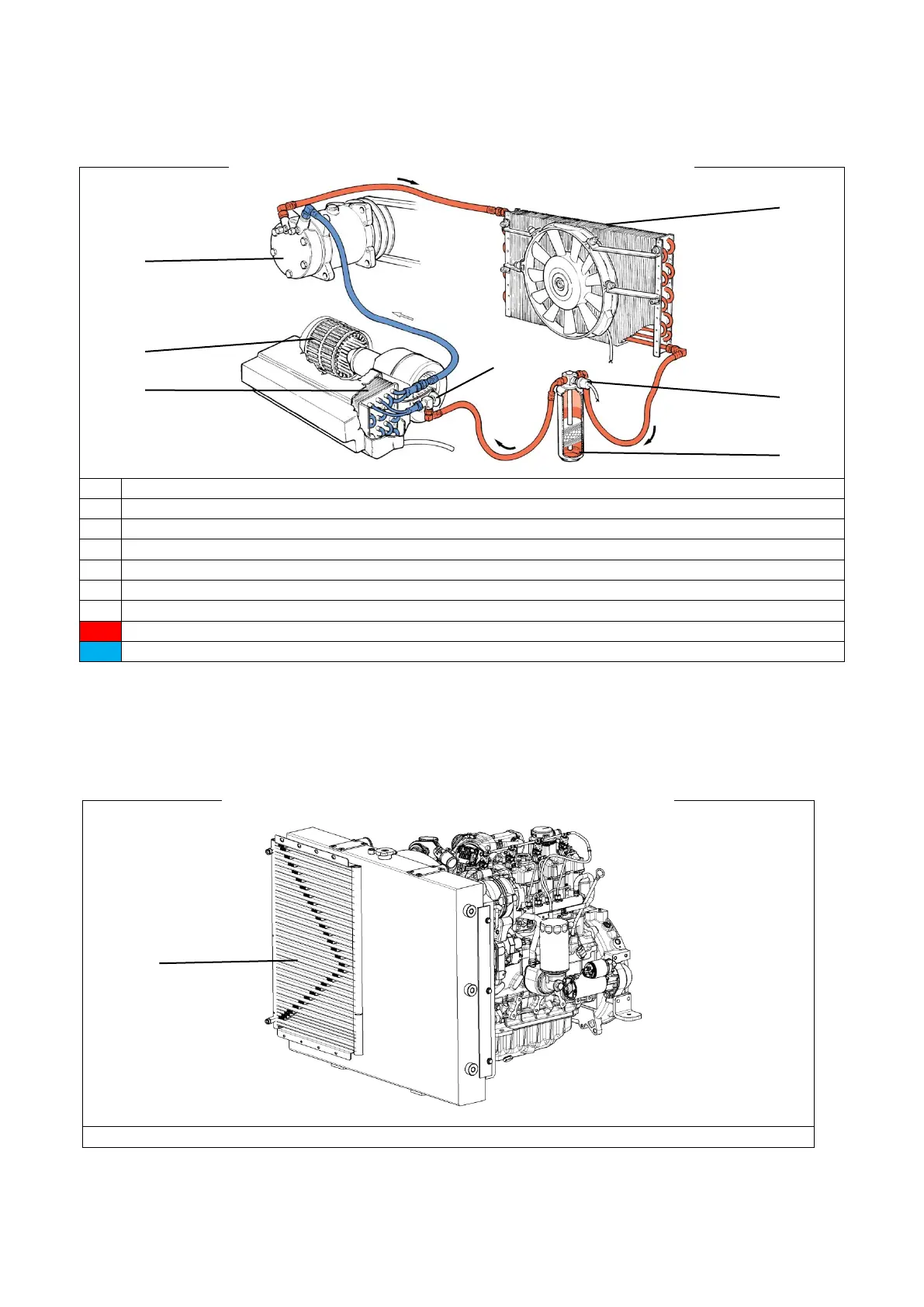

3.12.4 A/C System layout
The following drawing explains the A/C system layout installed on the machine:
1)
Compressor
2)
Condenser
3)
Filter
4)
Expansion Valve (Cab)
5)
Fan motor (Cab)
6)
Evaporator (Cab)
7)
Pressure sensor
Hi pressure
Low pressure
3.12.5 A/C condenser
Clean carefully the condenser of the air conditioning equipment; it is located in front of the main cooler (see
following picture):
1) A/C condenser
1
2
5
6
4
3
7
1
