7.13.2 Motorized sections valves / Dump valve

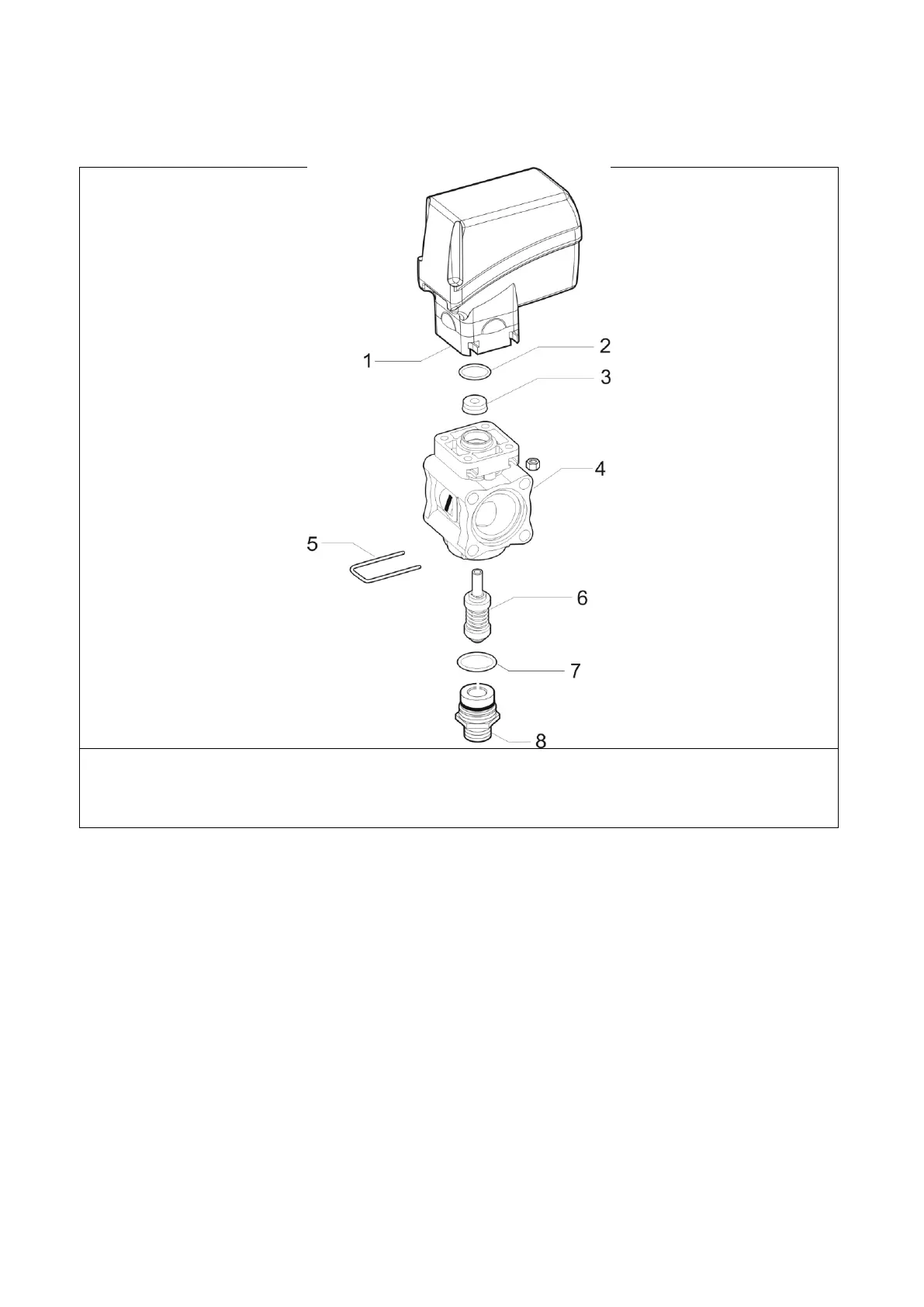

These valves act through a ratiomotor.
1) Ratiomotor
4) Body
6) Plug
8) Seat
This type of valve can be also used as a dump valve, draining all flow when sections valves are closed.
