ANDREOLI ENGINEERING Operator’s Manual
Self-propelled sprayer ATOM
139/166

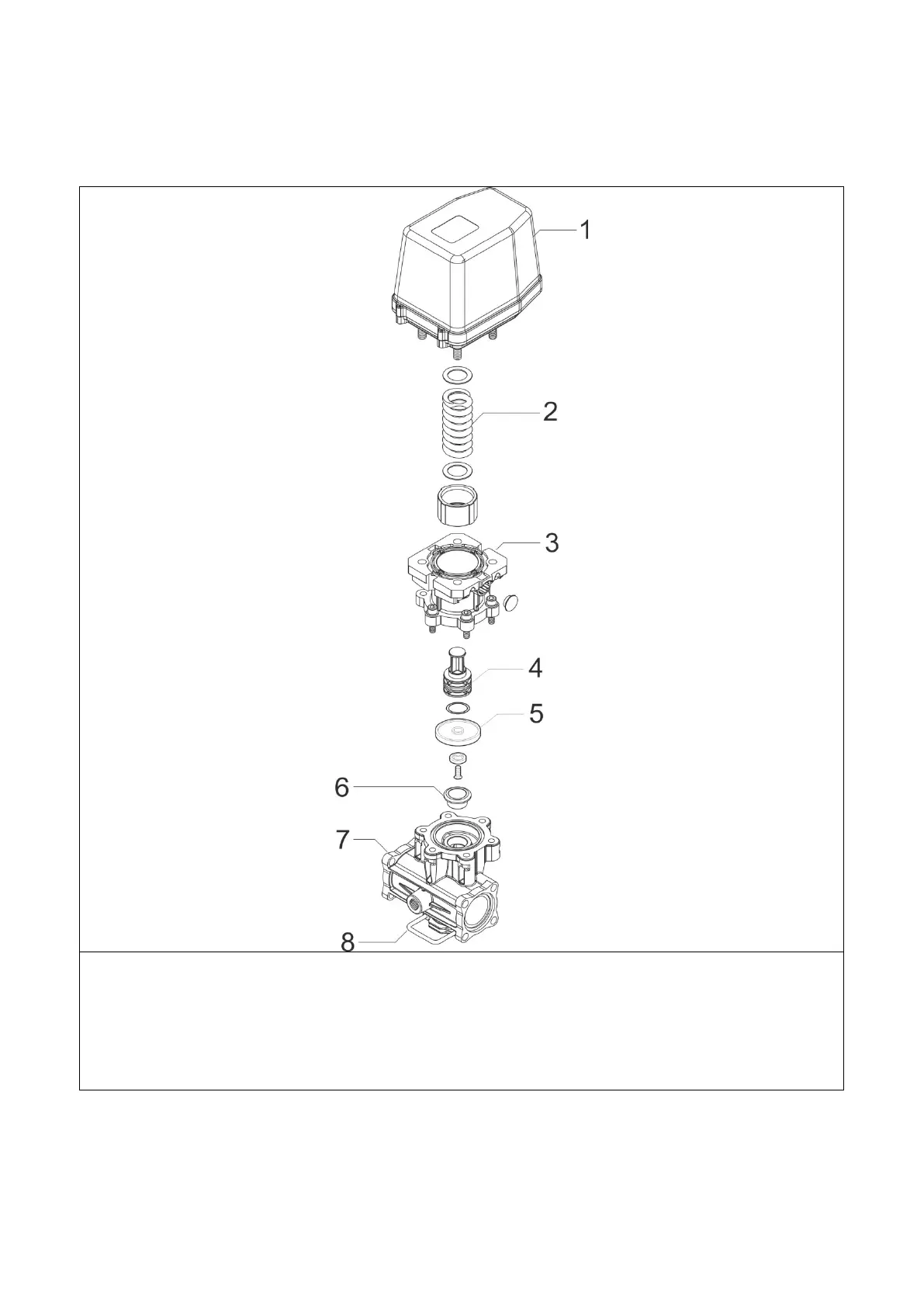

7.13.3 Standard electric pressure regulator
The electric pressure regulator controls the quantity of fluid that is discharged into the tank, thus regulating
the pressure of the chemicals circuit.
1) Ratiomotor
2) Spring
3) Body top
4) Plug
5) Diaphragm seal
6) Seat
7) Body bottom
