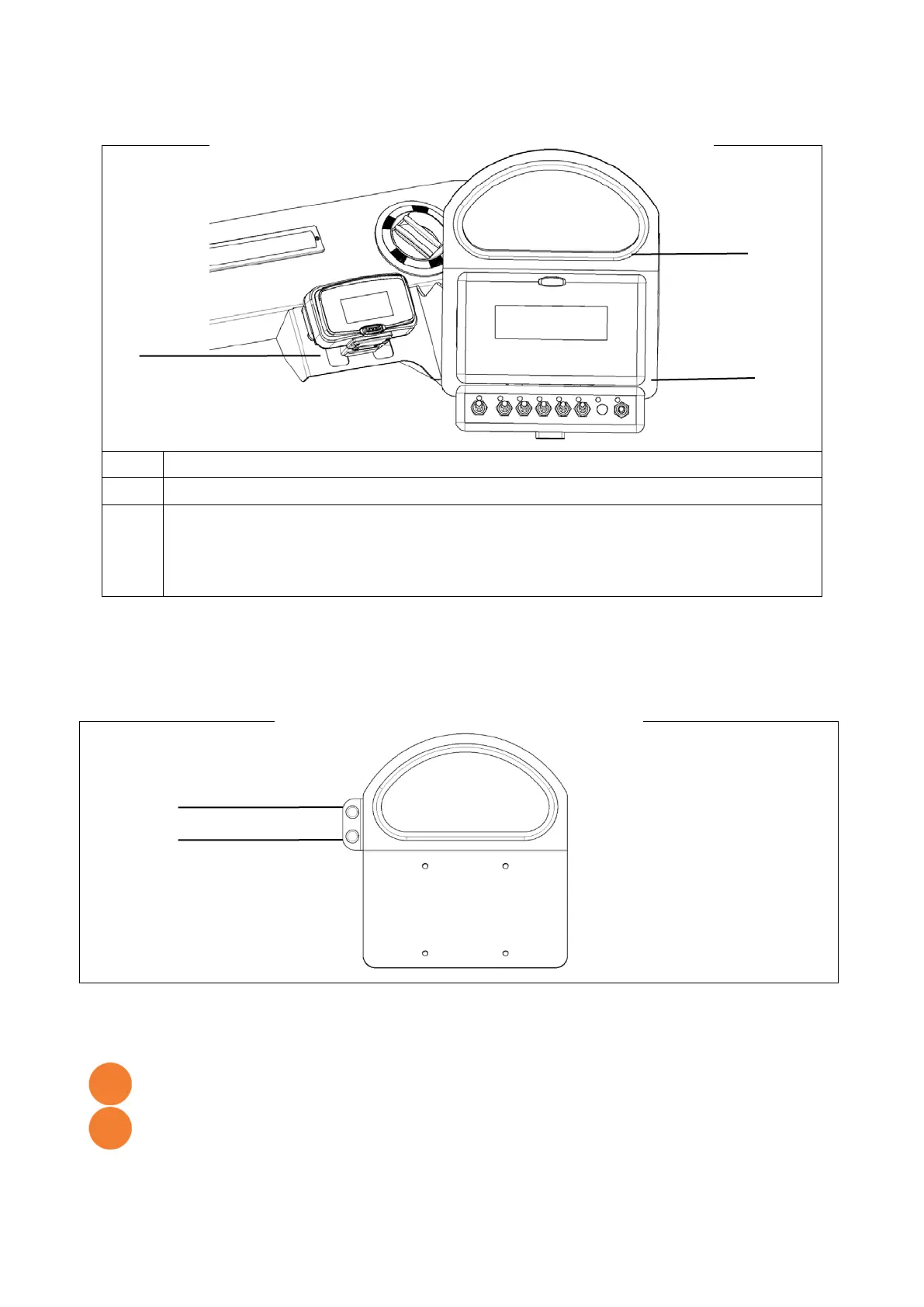

3.11.3 Front dashboard
3.11.4 Front/Back axle wheels alignment lights
Axles are equipped with sensors, wich detect the central position of steer rams and consequently the straight
position of wheels.
On the dashboard, L22 light turns on whenever front axle wheels are straight; L23 light turns on whenever
back axle wheels are straight.
L22
 Front axle wheels straight
L23
 Back axle wheels straight
1)
Display for tank level and spraying pressure
2)
Main instrument
3)
Available for:
Automatic spray rates controller
Display for back cameras
Optional display (spray rates, etc.)
1
2
3
L22
L23
