3.1.6 Cab pneumatic suspensions

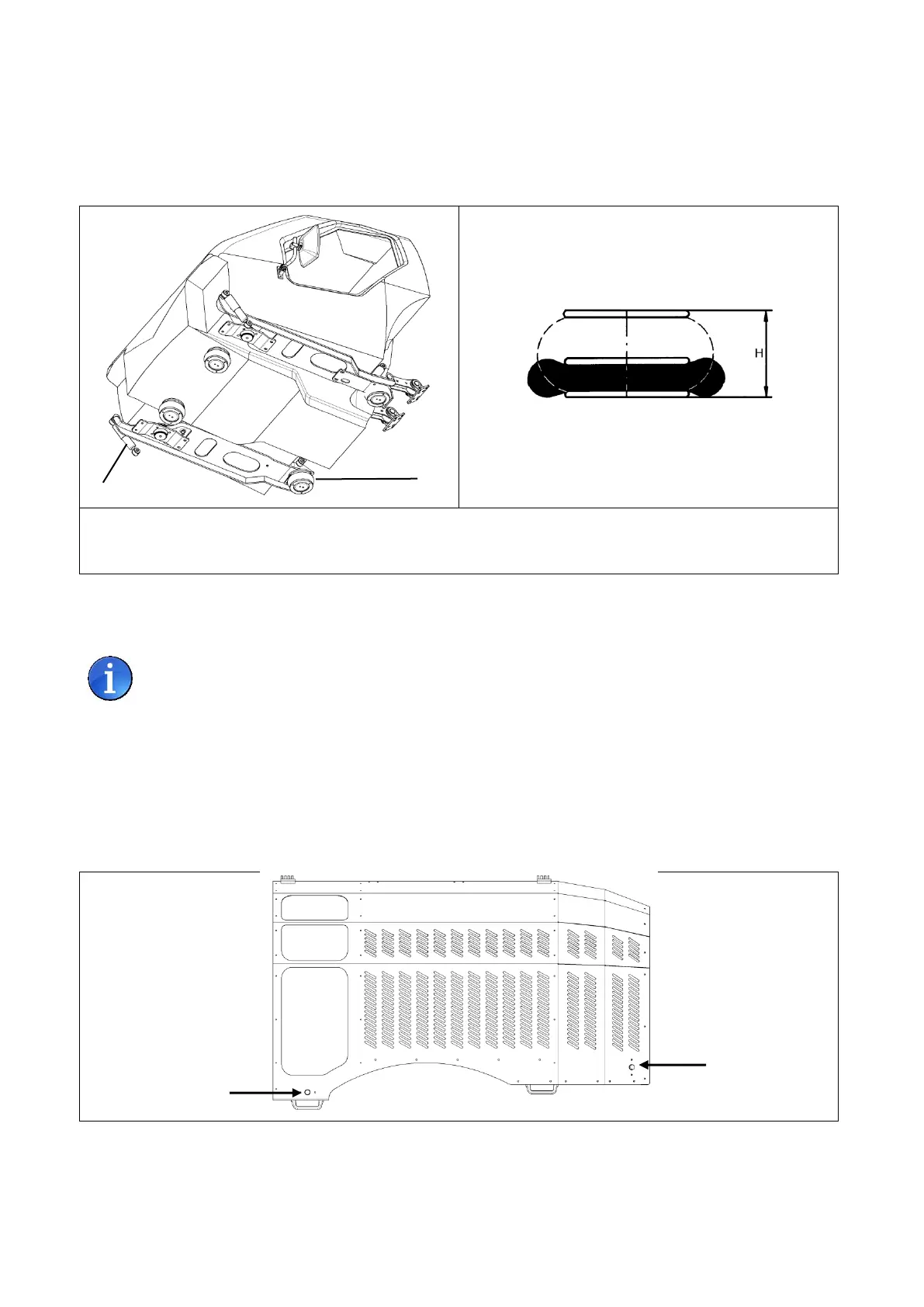

The cab is equipped with pneumatic suspensions system.
Cab has 4 air bags and is linked to the chassis through 4 shock absorbers and 2 rigid rods.
Air bags have valves to let you check and regulate the pressure, as the ones normally fitted on tires.
1) Air bags
2) Shock absorbers
H) Air bags working height
Set the pressure of each air bag in order to set its height (H) at a value of about 80 – 90 mm.
Each air bag has to be inflated separately from the others.
3.2 ENGINE COVERS
Engine covers are equipped with locks:
All locks can be opened or closed by keys.
Periodically check the pressure of the air bags.
Never use the machine if one of the air bags is completely flat. It may be damaged.
Minimum H height is of about 60 mm (2.36 in).
Never exceed maximum H height of 90 mm (3.54 in).
Never exceed the maximum pressure of 8 bar (116 PSI).
