ANDREOLI ENGINEERING
Operator’s Manual
Self-propelled sprayer ATOM

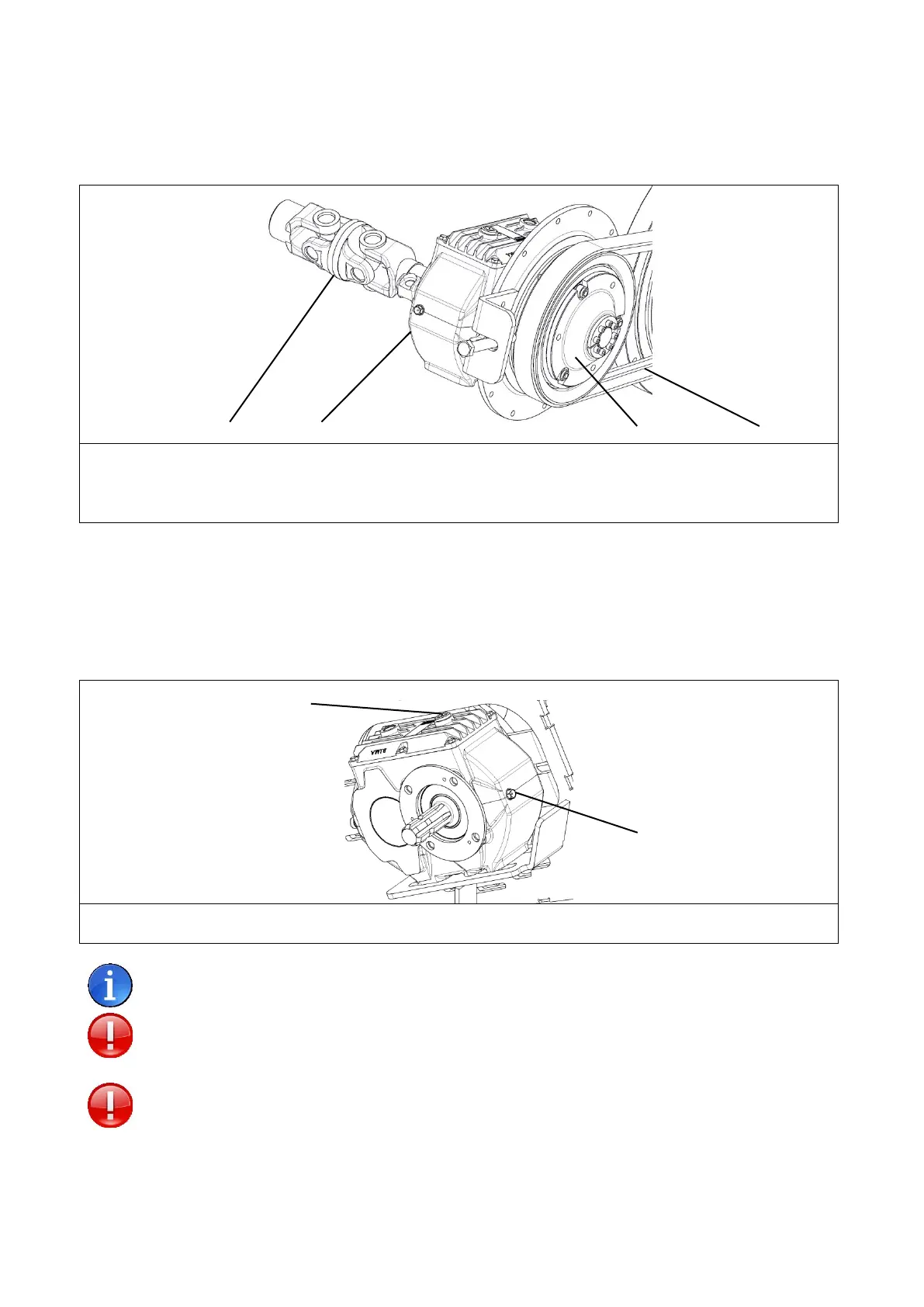

7.4 GEARBOX FOR CHEMICALS PUMP
The pump is driven by a gearbox and a cardan shaft.
The gearbox is driven by an electric clutch.
1) Gearbox for chemicals pump
2) Clutch
3) Belt
4) Cardan shaft
To change the oil in the gearbox:
Remove breather and drain plugs.
Suck old oil.
Fill with new oil. Oil level should be the axis of top shaft.
If gear box is removed from its original position for service and is kept horizontal, you can use plug 2) as oil
level.
1) Breather
2) Drain plug
Use oil type 80W90, quantity: 1.5 kg | 3.3 pounds.
Exhaust oil must be recycled and not wasted in the environment. You MUST collect it through
authorised centres according to the laws in force in the Country.
All service operations MUST be done with engine stopped.
Wait some minutes for cooling of components.
