Andreoli Engineering ATOM 1000 - Tank Level Sensor

ANDREOLI ENGINEERING Operator’s Manual
Self-propelled sprayer ATOM
67/166
3.13.4 Tank level sensor
Main tank is equipped with an electronic level sensor.
It is placed at the bottom of the tank, on the right side.

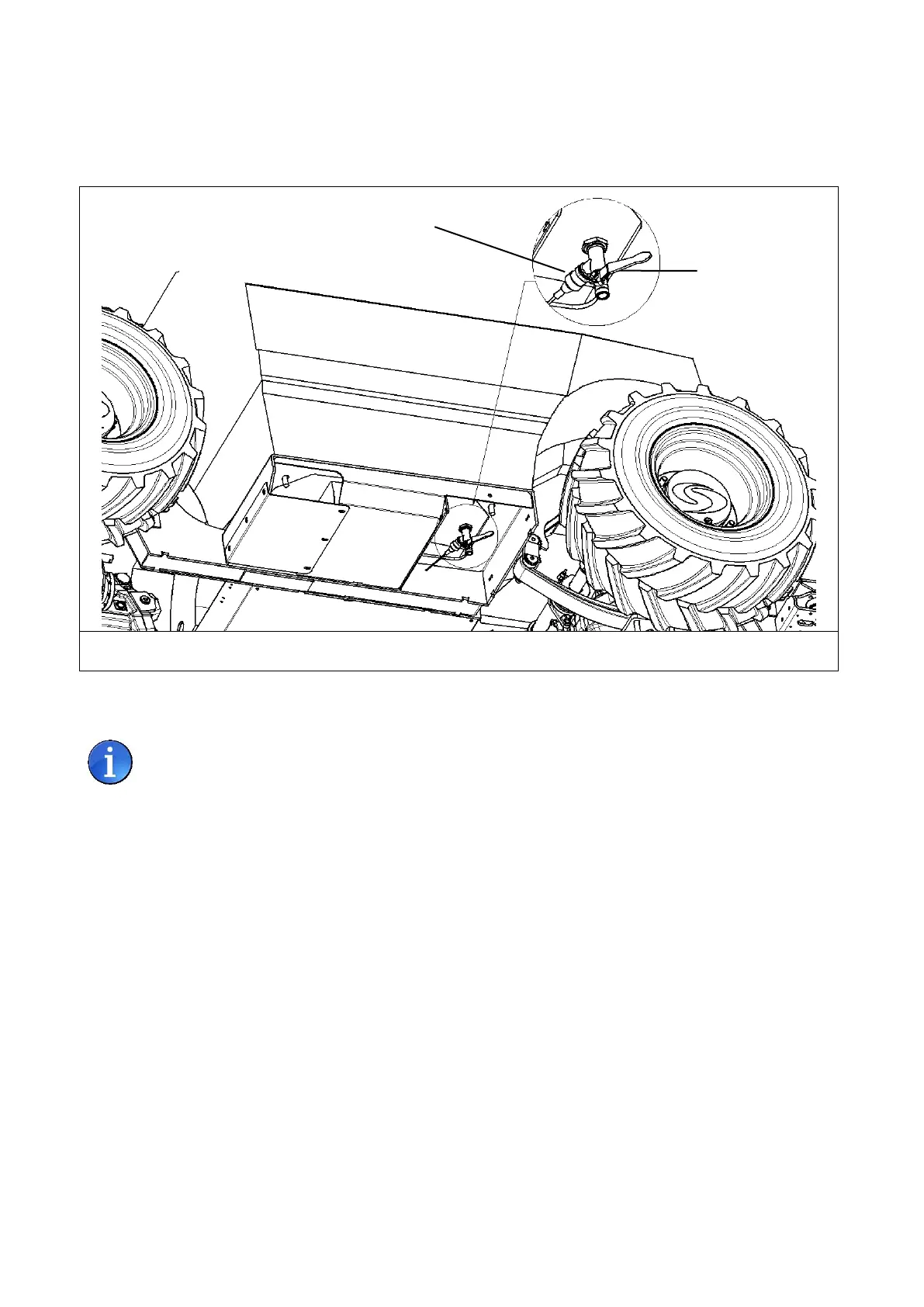

1) Tank level sensor
2) Drain tap
Under the sensor there is a drain manual tap, wich is used to drain chemicals residues out of sensor.
At the end of each spraying operation it is necessary to clean the tank level sensor.
Follow this procedure:
 Main tank must be empty
 Open the drain tap (2)
 Put some clean water inside main tank and let it out of drain tap
 Continue this flushing for some seconds
 Close drain tap (2)
2
1
