3.13.14 Valves
Chemicals circuit is equipped with a pressure regulator and 2 or more sections valves, controlling nozzles
manifolds.
Flowmeters and pressure sensors can be placed close to sections valves.
Sections valves can be solenoid type or motorized type.

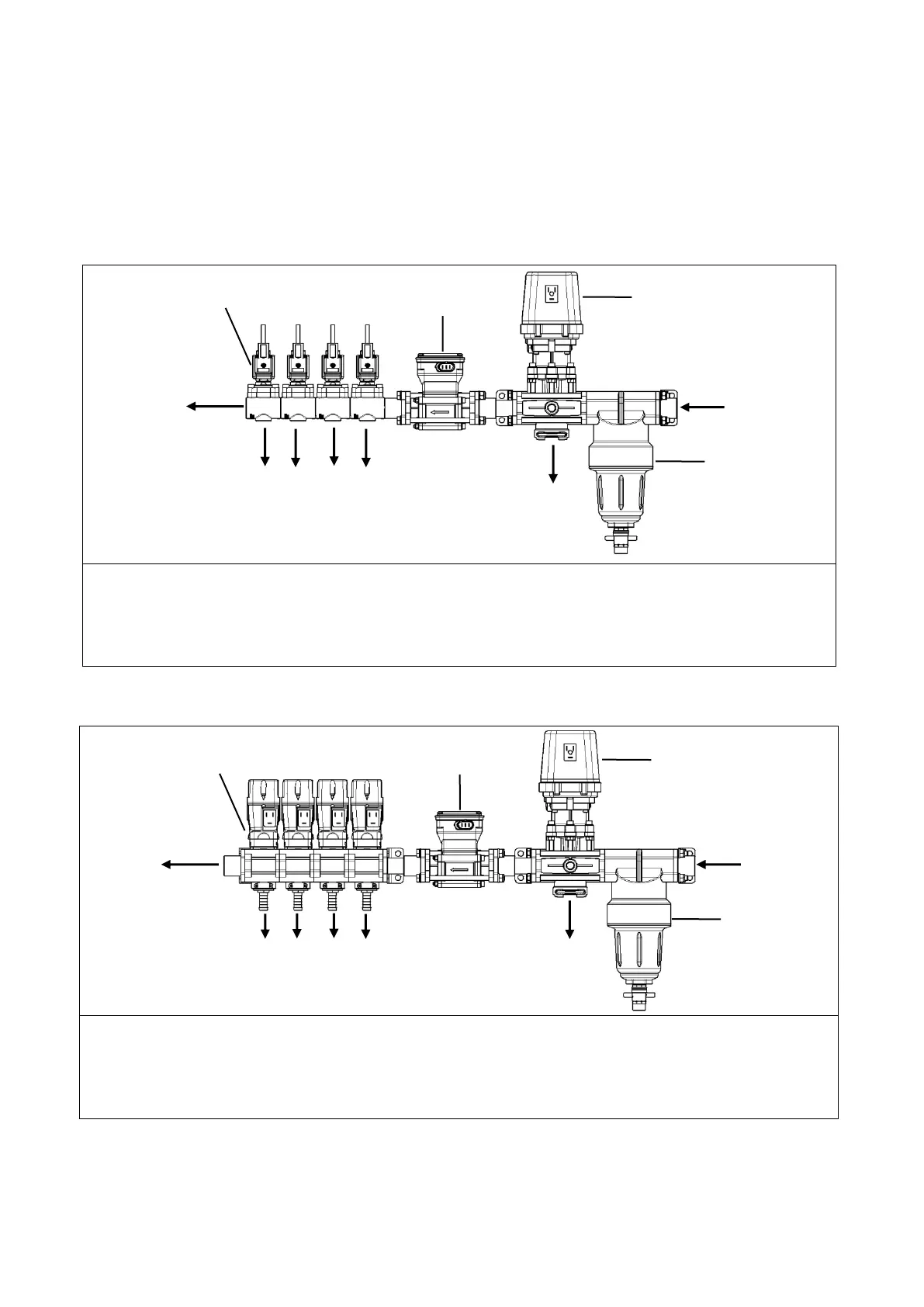

Example with solenoid valves:
1) Standard pressure regulator for manual control (activated by remote switch)
2) Flowmeter – used for automatic spray rates controller or spray rates monitor
3) Solenoid type sections valves
4) Pressure filter
Example with motorized valves:
1) Standard pressure regulator for manual control (activated by remote switch)
2) Flowmeter – used for automatic spray rates controller or spray rates monitor
3) Motorized type sections valves
4) Pressure filter
