Andreoli Engineering ATOM 1000 - Page 81

ANDREOLI ENGINEERING Operator’s Manual
Self-propelled sprayer ATOM
81/166

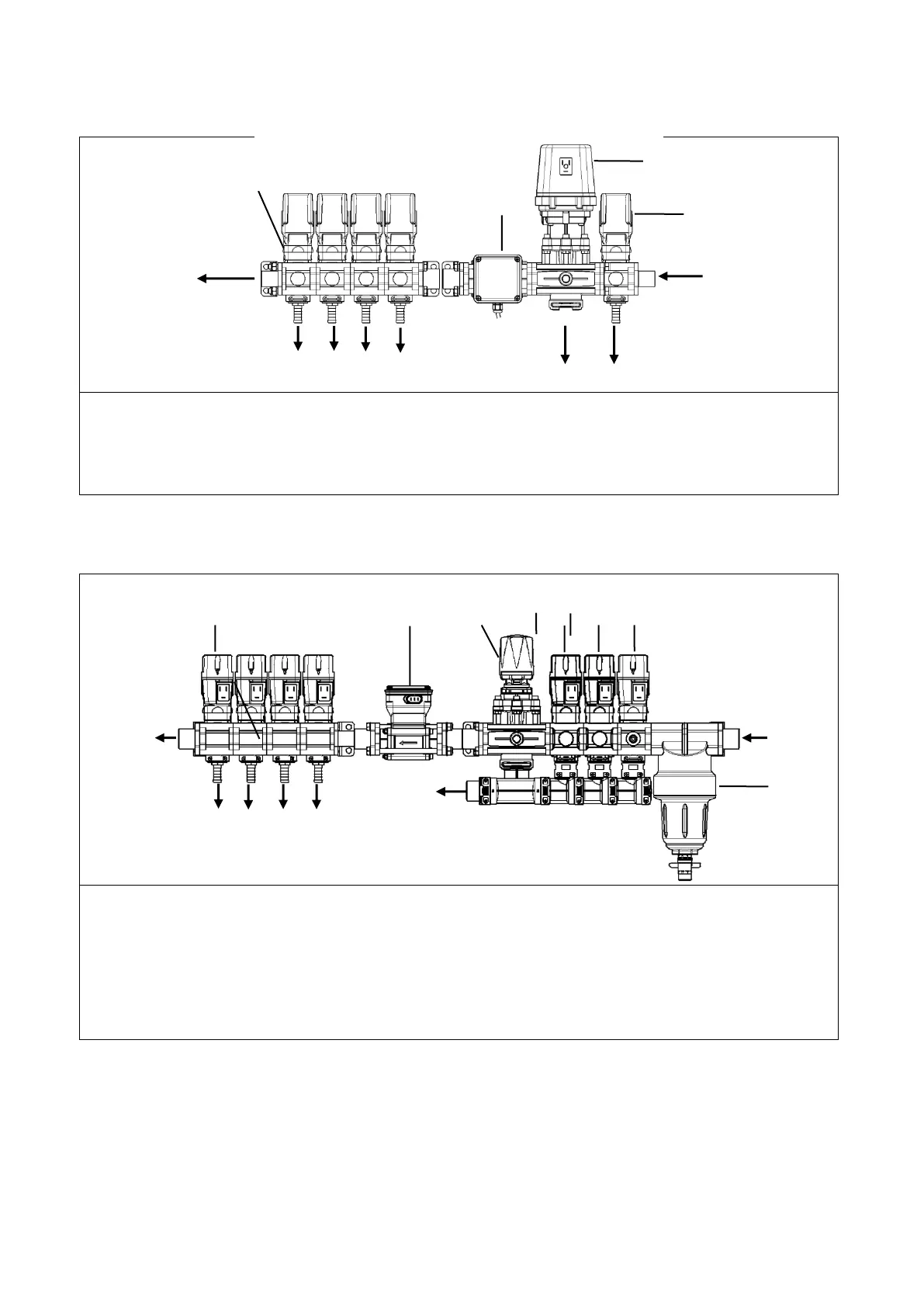

Example with motorized valves and dump valve:
1) Standard pressure regulator for manual control (activated by remote switch)
2) Flowmeter – used for automatic spray rates controller or spray rates monitor
3) Motorized type sections valves
4) Dump valve
Example with motorized valves and fast pressure regulator for automatic controller:
1) Fast pressure regulator for automatic controller
2) Dump valve
3) Safety max pressure valve
4) Pressure filter
5) Flowmeter
6) Motorized type sections valves
