ANDREOLI ENGINEERING Operator’s Manual
Self-propelled sprayer ATOM
151/166
26
15
+15 Services
Windscreen wiper
Windscreen washing pump
27
15
+30 Battery
Warning lights
Main instrument
Steer column
28
10
+30 Battery
Radio
Lighter

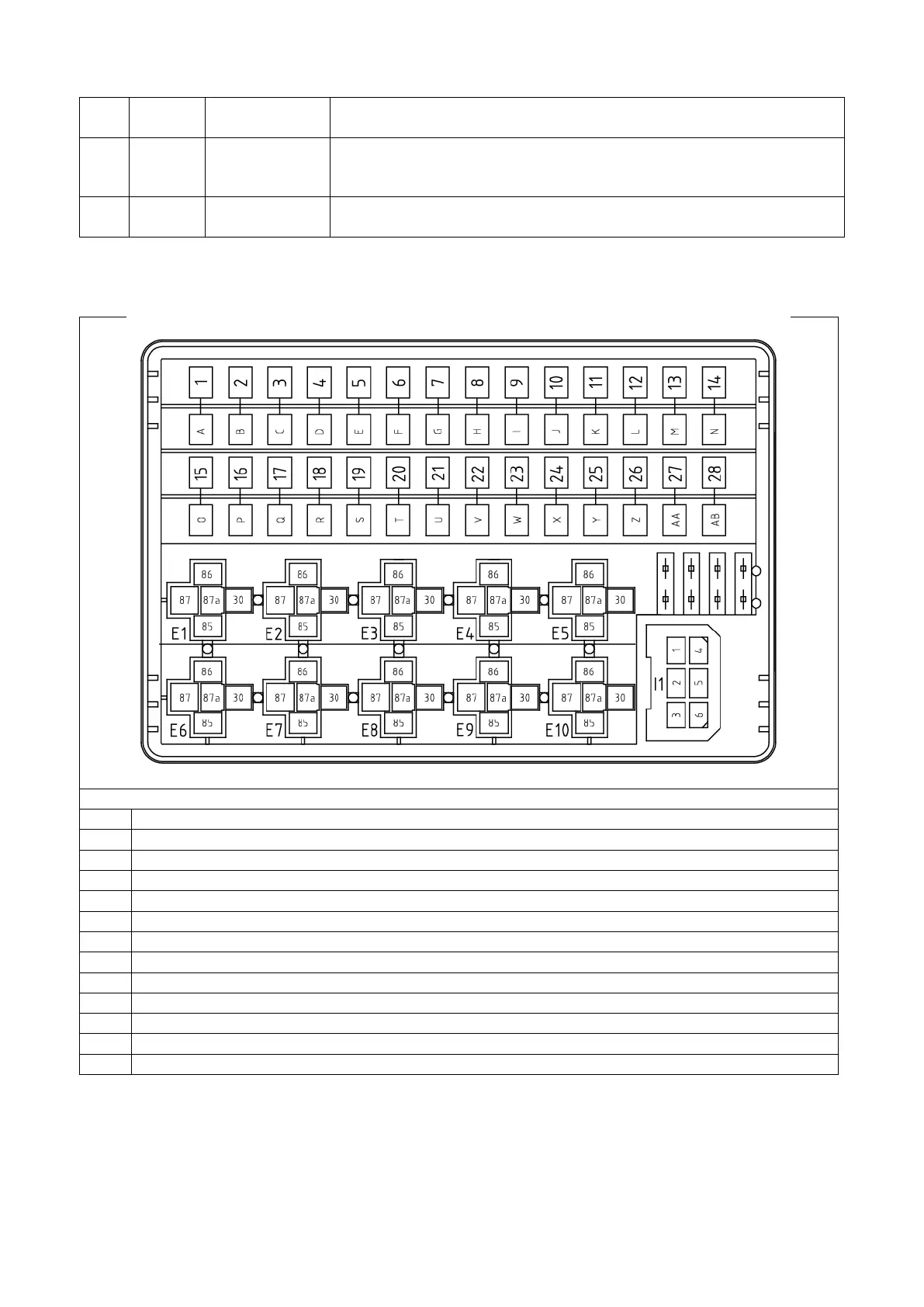

7.20.1 D754IE3 fuses box / Compact version
DESCRIPTION OF THE RELAYS
Nr
Function
E1
Sprayer fan clutch
E2
Chemicals pump clutch
E3
Alternator W signal - Clucthes enable
E4
Dump valve
E5
A/C fans
E6
A/C compressor
E7
Engine stop solenoid
E8
Sprayer fan clutch enable
E9
Chemicals pump clutch enable
E10
Dump valve
I1
Flashers
