3.13.2 Chemicals tank

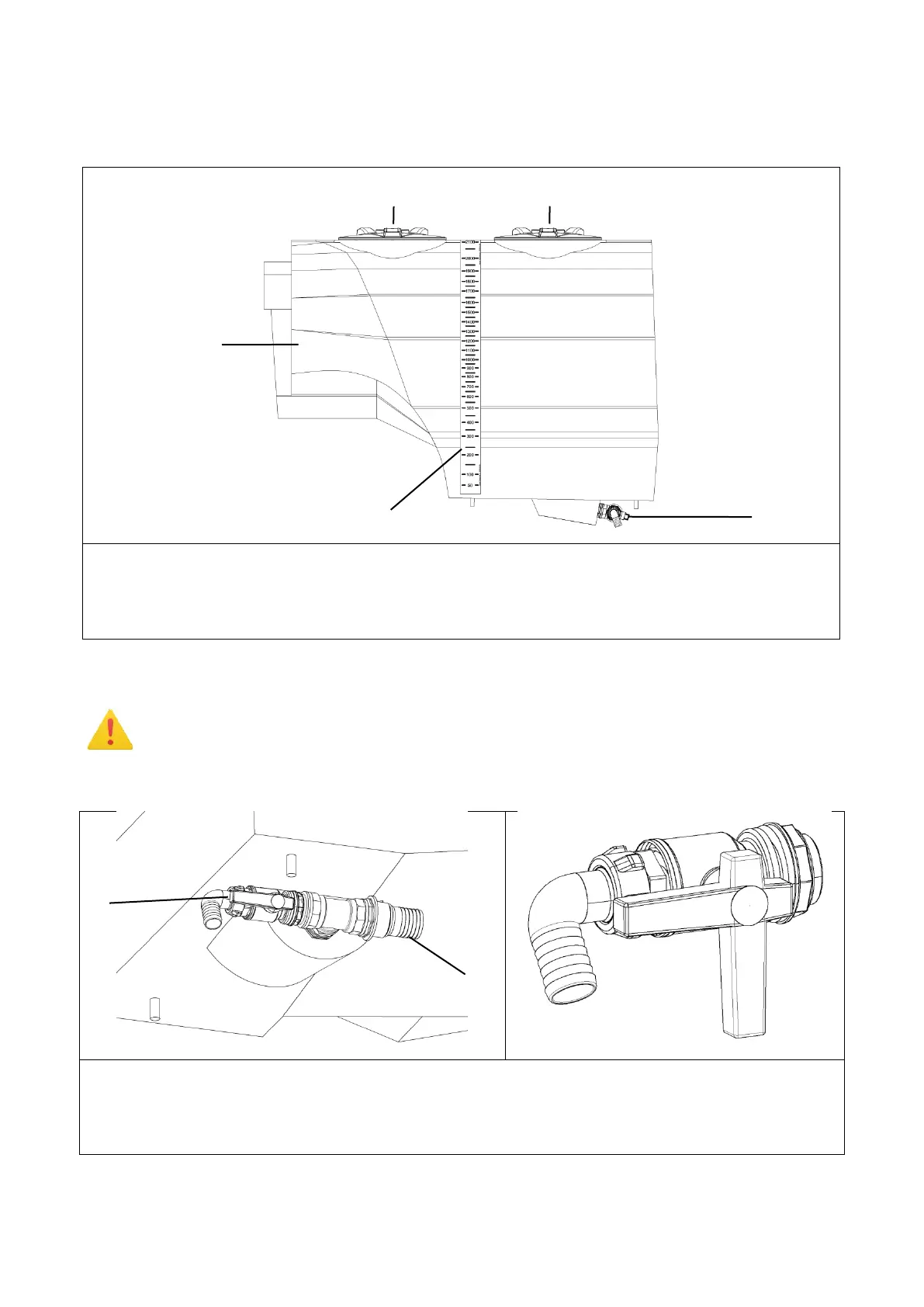

Main tank for chemicals has 2 lids, equipped with basket filters in plastic or stainless steel.
1) Main tank for chemicals
2) Tank lid
3) Nominal tank level indicator
4) Suction / Drain
The tank can be filled through the lids.
To empty the tank open the ball valves placed under the tank on the two sides:
1) Drain ball valve
2) Suction
A) Open
B) Closed
It is absolutely forbidden entering the tank.
