ANDREOLI ENGINEERING
Operator’s Manual
Self-propelled sprayer ATOM
7.16 TYRE REPLACING
Follow this procedure.
Place the machine on a flat area. Stop the machine, turn off the engine, remove ignition key.
Put grip wedges to lock the wheels.
Use a lifter correctly dimensioned to lift the machine fully loaded.

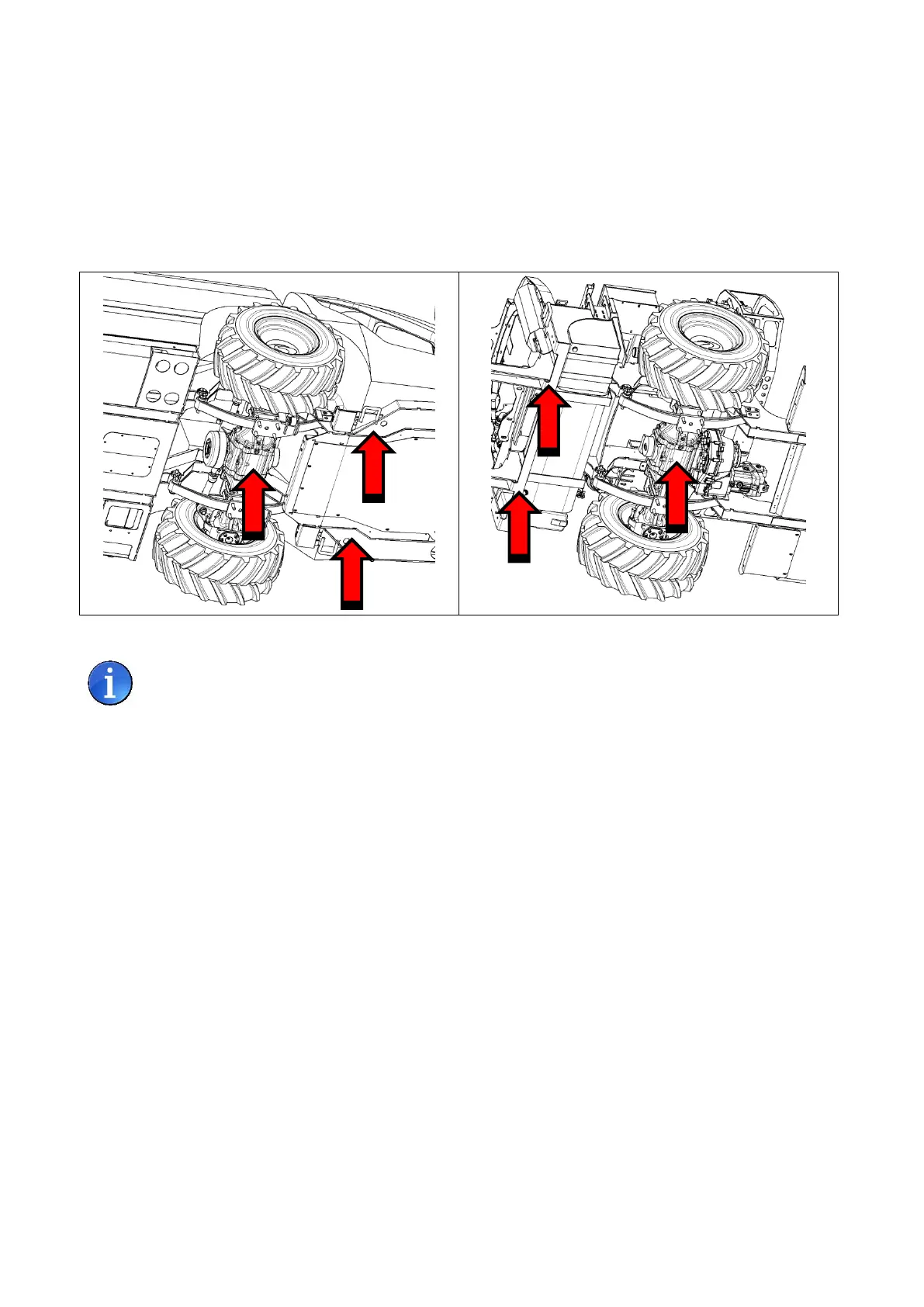

Place the lifter in the points indicated below.
Remove the nuts and replace the tyre.
Tighten the nuts firmly.
Lower the machine and check the inflation pressure of the tires.
Recommended inflation pressure is generally shown on the side of the tyre.
Check periodically the tightening of the nuts of the tires.
Tyre replacing is a dangerous operation, that may cause risks in consideration of the weight of the
machine.
To avoid serious risks, tyres replacement MUST be performed by expertised and qualified staff.
