ANDREOLI ENGINEERING Operator’s Manual
Self-propelled sprayer ATOM
49/166
3.11.3 Display for tank level and pressure
The machine is equipped with a digital display wich shows information about tank level and pressure of
chemicals circuit.
Switching on: turn on the ignition key, press button (2).
Switching off: keep pressed button (2).
The display shows following information:
 Tank level
 Percentage bar of tank level
 Pressure of chemicals circuit at the sections valves (measurement point closest to the nozzles).
By pressing button (3) it is possible to view each information in extended mode.
The display reads the signals coming from:
 Pressure sensor for chemicals circuit (4-20 mA; 0-60 bar)
 Pressure sensor for tank level (4-20 mA; 1-190 mbar)

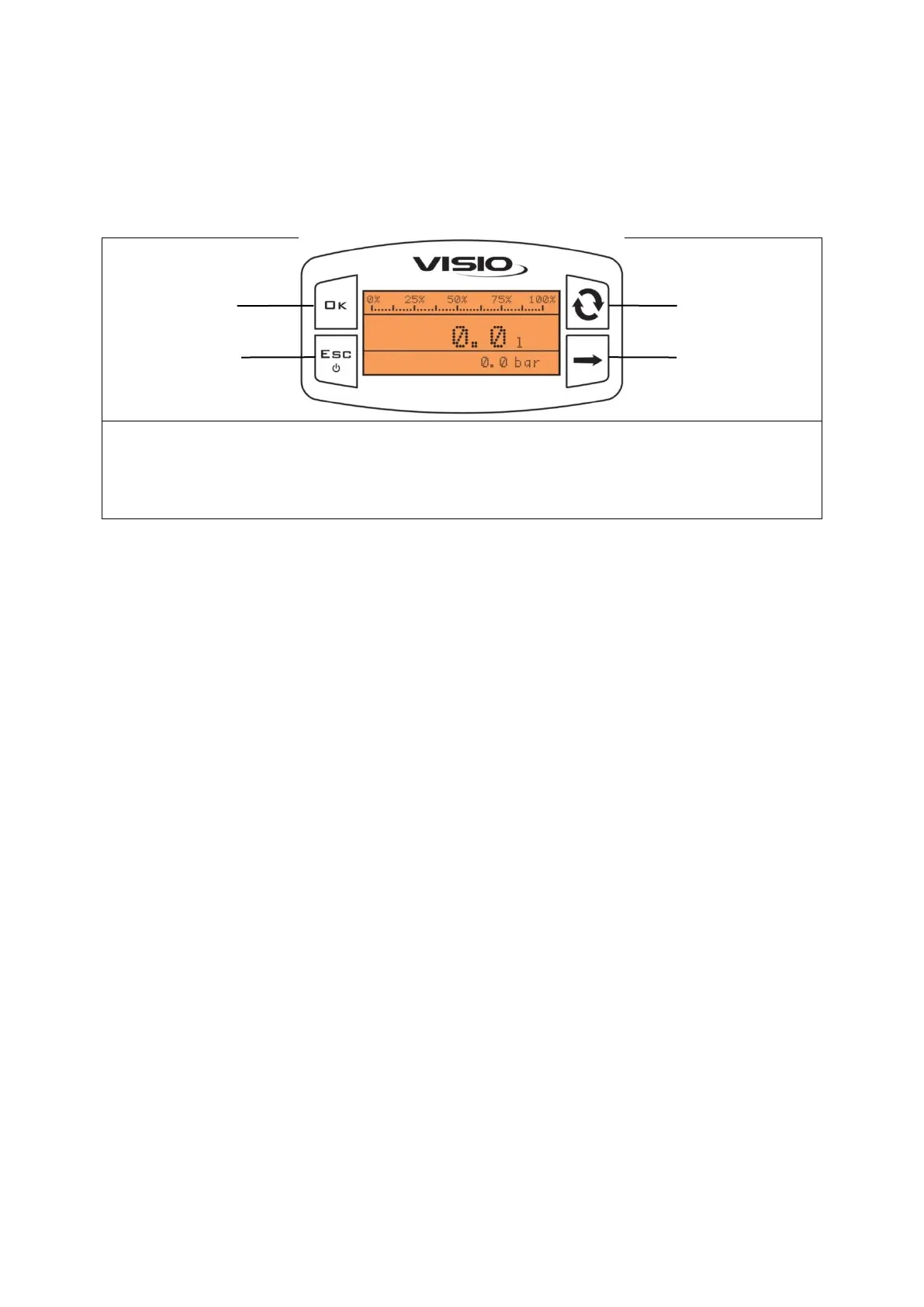

1) Confirm / Save
2) On / Off / Back to previous menu
3) Modify values
4) Scroll through digits
1
2
3
4
