3.13 CHEMICALS EQUIPMENT
3.13.1 Chemicals circuit layout

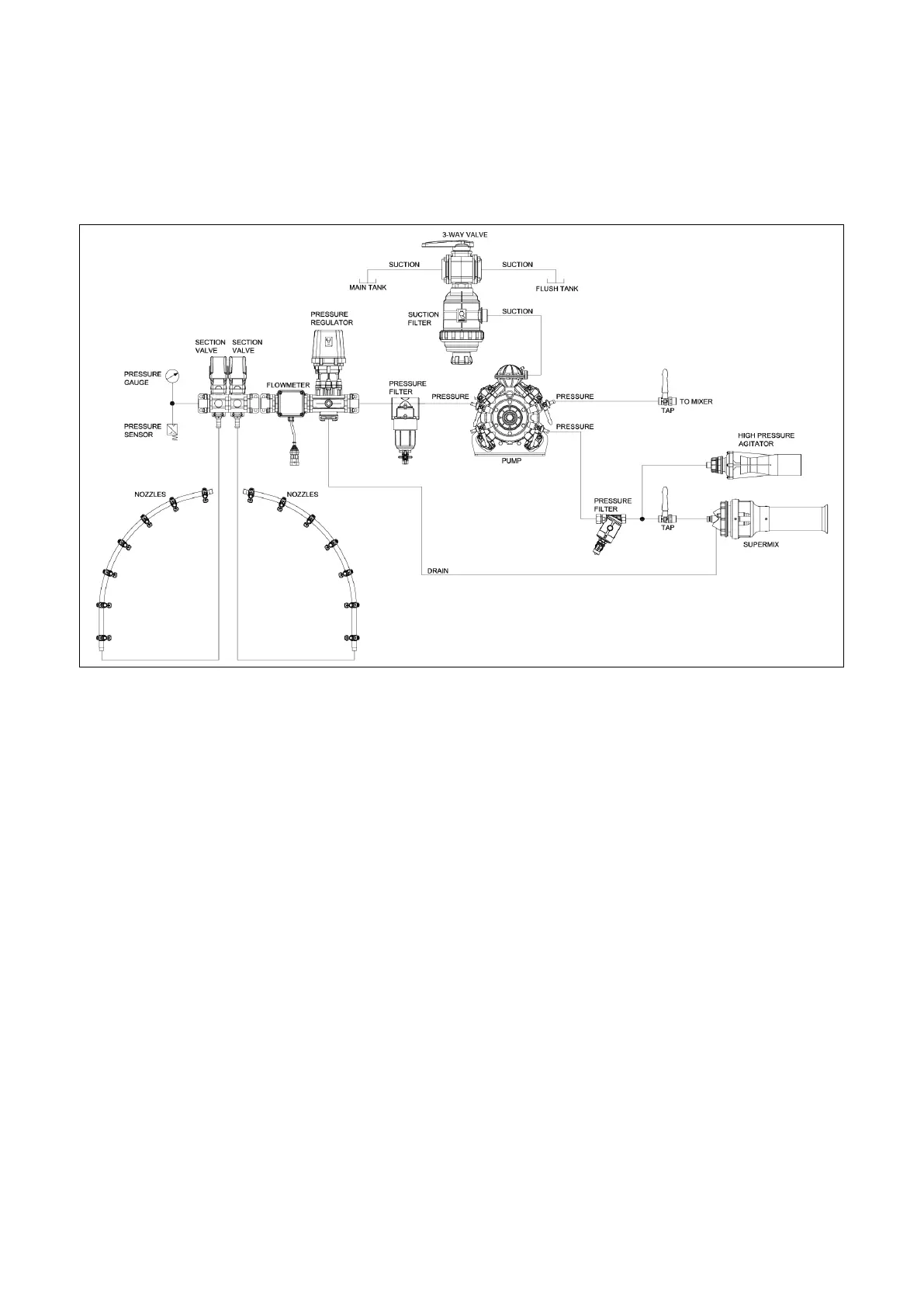

The following drawing shows an example of standard chemicals circuit layout.
3-way valve allows suction line selection between main tank and flush tank.
Suction filter protects the pump.
Pressure filters protect valves and nozzles of agitators.
