ANDREOLI ENGINEERING Operator’s Manual
Self-propelled sprayer ATOM
68/166

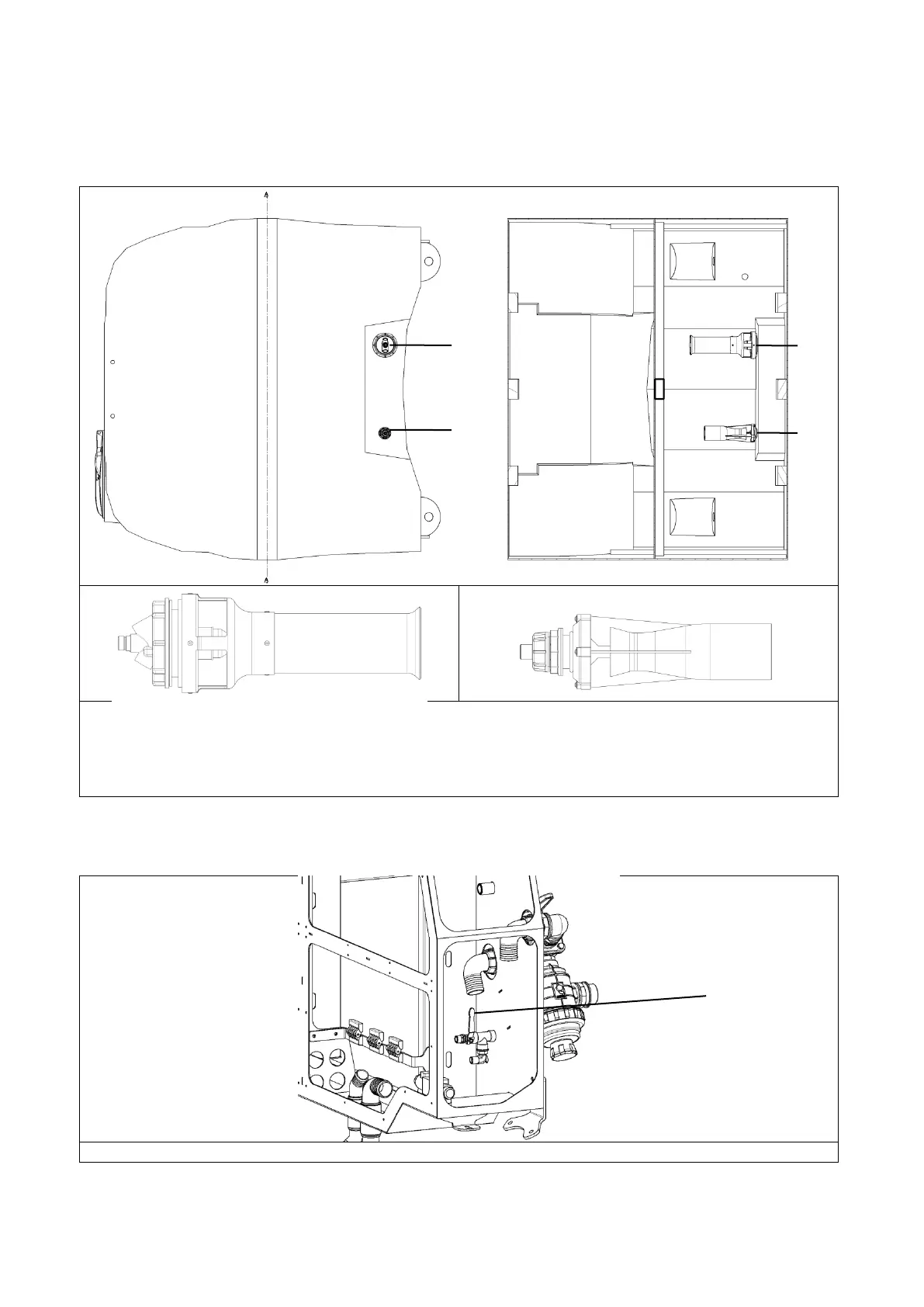

3.13.5 Chemicals tank agitators – Standard chemicals circuit layout
With standard chemicals circuit layout, main tank is equipped with 1 Supermix agitator and 1 high pressure
agitator.
1) Supermix agitator
2) High Pressure agitator
A) High pressure inlet
B) Low pressure inlet
Supermix agitator (1) has a high pressure inlet (A), controlled by a manual tap, and a low pressure inlet (B)
which collects the drain ports of pressure regulator valve and dump valves.
1) Manual tap for Supermix agitator
A
B
B
A
1
2
1
2
1
