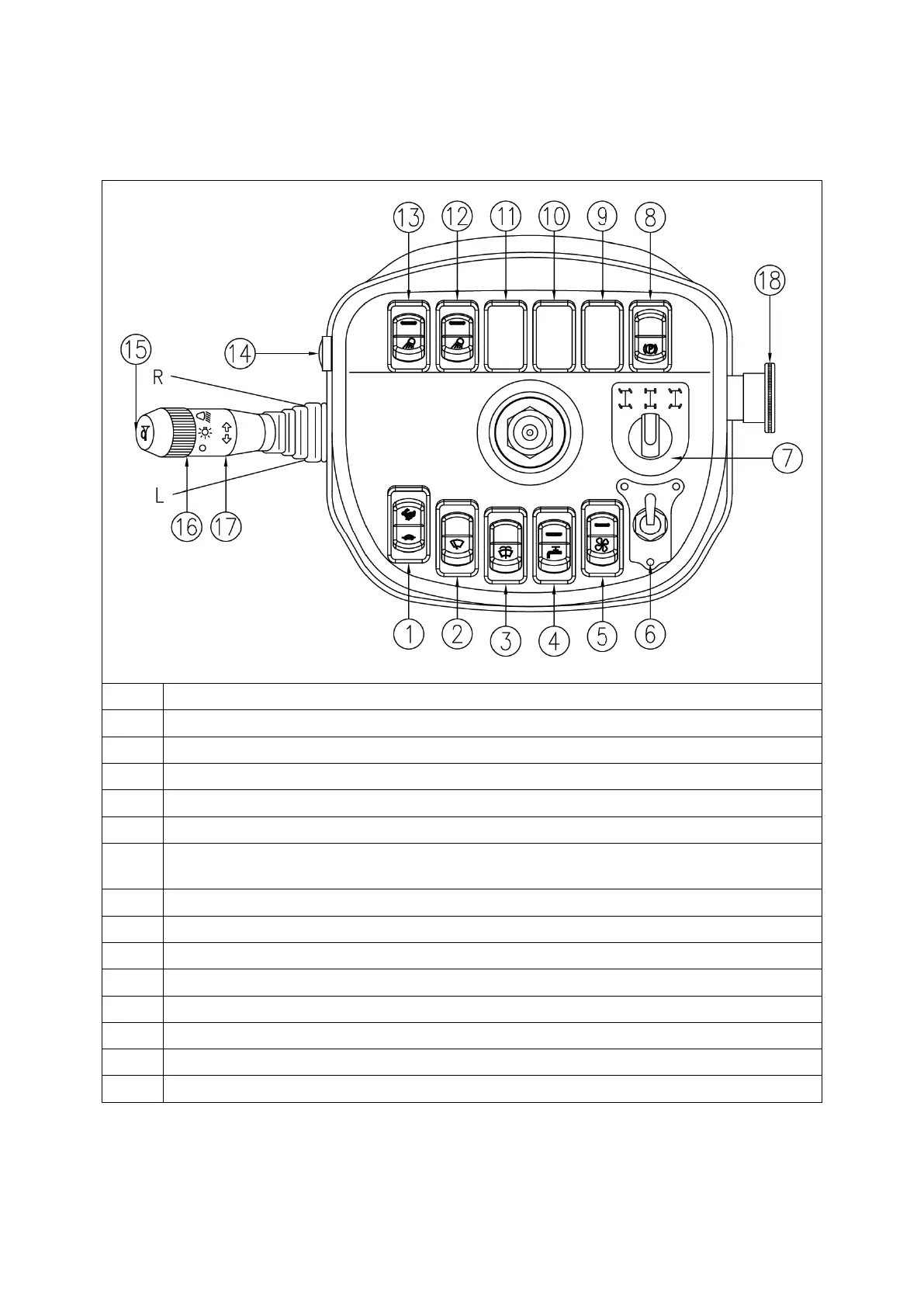

3.11 CONTROLS AND INSTRUMENTS
3.11.1 Steering coloumn
1)
Hydraulic speed slow / fast
2)
Windscreen wiper
3)
Windscreen wash pump
4)
Enable Chemicals pump
5)
Enable Sprayer fan
6)
Chemicals circuit pressure regulation (+/-)
7)
Steer mode selection: 4 steering wheels (work mode), 2 steering wheels (road mode), 4
steering wheels in phase (lateral shift , crab steer)
8)
Hydraulic parking brake switch
12)
Differential lock switch
13)
Work lights
14)
Instrument set up – browse the instrument windows
15)
Klaxon
16)
Driving beams, crossing beams
17)
Flashers
18)
Emergency stop button
