ANDREOLI ENGINEERING Operator’s Manual
Self-propelled sprayer ATOM
46/166
3.11.6 LCD Display on main instrument

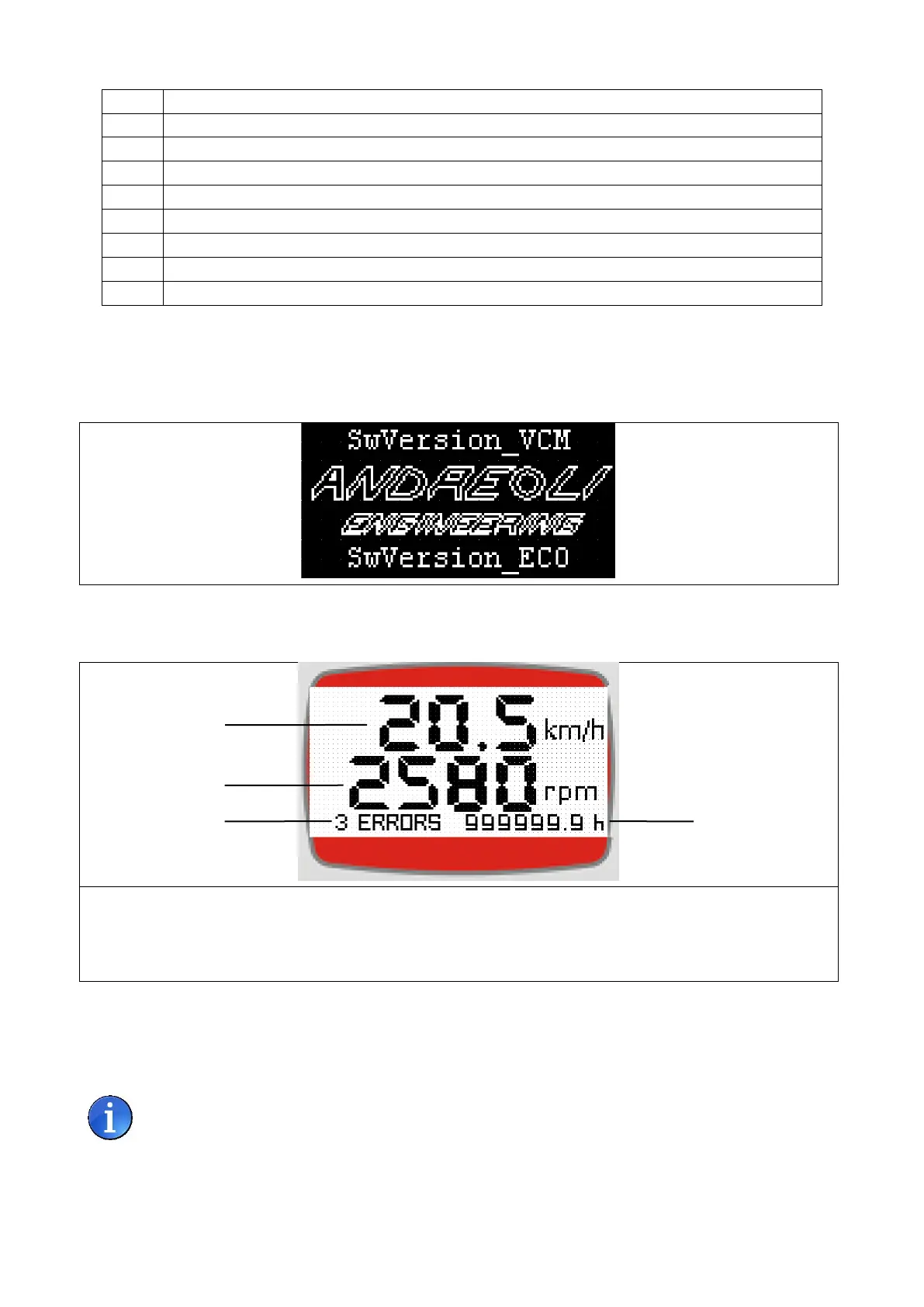

The STARTUP screen shows the software version of the main instrument (ECO):
The HOME screen shows the following information:
1) Speed
2) Engine revs
3) Engine hours
4) Engine errors
When the engine ECU detects at least 1 error, the display shows the ERRORS screen, showing “ENGINE
ERRORS” with the number of engine errors and their codes.
If more than 1 error are detected, the display shows each of them cyclically every 3 seconds.
L17)
DPF Clogged Lamp – Regeneration request
L18)
Engine failure – EDC Red Stop Lamp
L19)
WIF – Water in Fuel
L20)
Direction indicator left
L21)
Direction indicator right
S1)
Fuel level gauge
S2)
LCD display
S3)
Engine water temperature indicator
Even when errors are detected, you can always go back to the HOME screen, pushing the
button on the steer column (see 13.1.1, pos. 14).
By pushing again the button you go back to the ERRORS screen.
3
1
2
4
