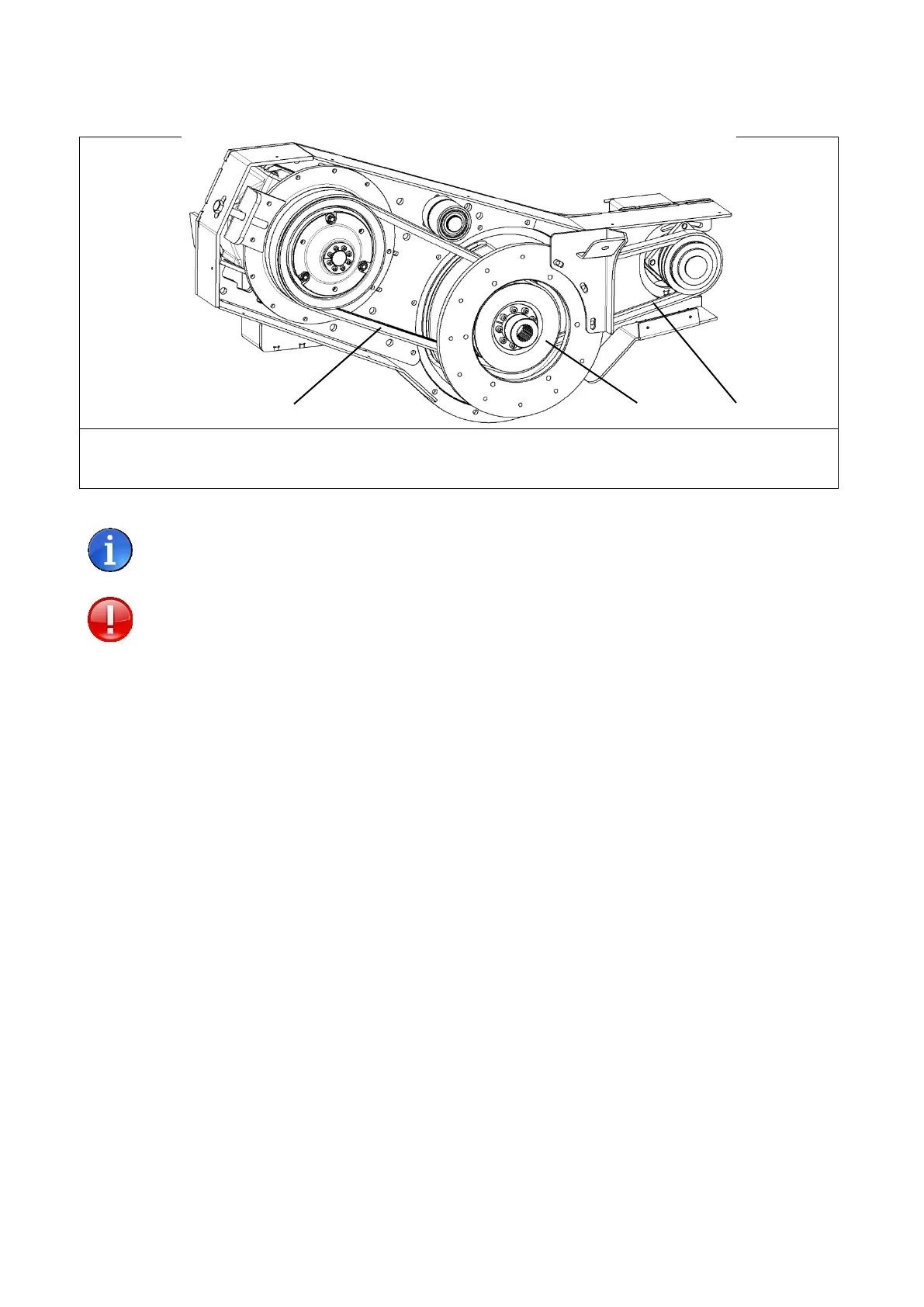

Now you can access the drive pulley (6) and replace belts (7) and (8).
6) Drive pulley
7) Chemicals pump drive belt
8) A/C compressor drive belt
Chemicals pump drive belt type: XPB 1650/2 – Twin type: 2 grooves B section.
A/C compressor drive belt type: XPA 1320/2 – Twin type: 2 grooves A section.
Group hydraulic pump + fan drive box is heavy.
Use proper tools and lifting devices to move heavy components.
6
7
8
