Self-propelled sprayer ATOM
32/166

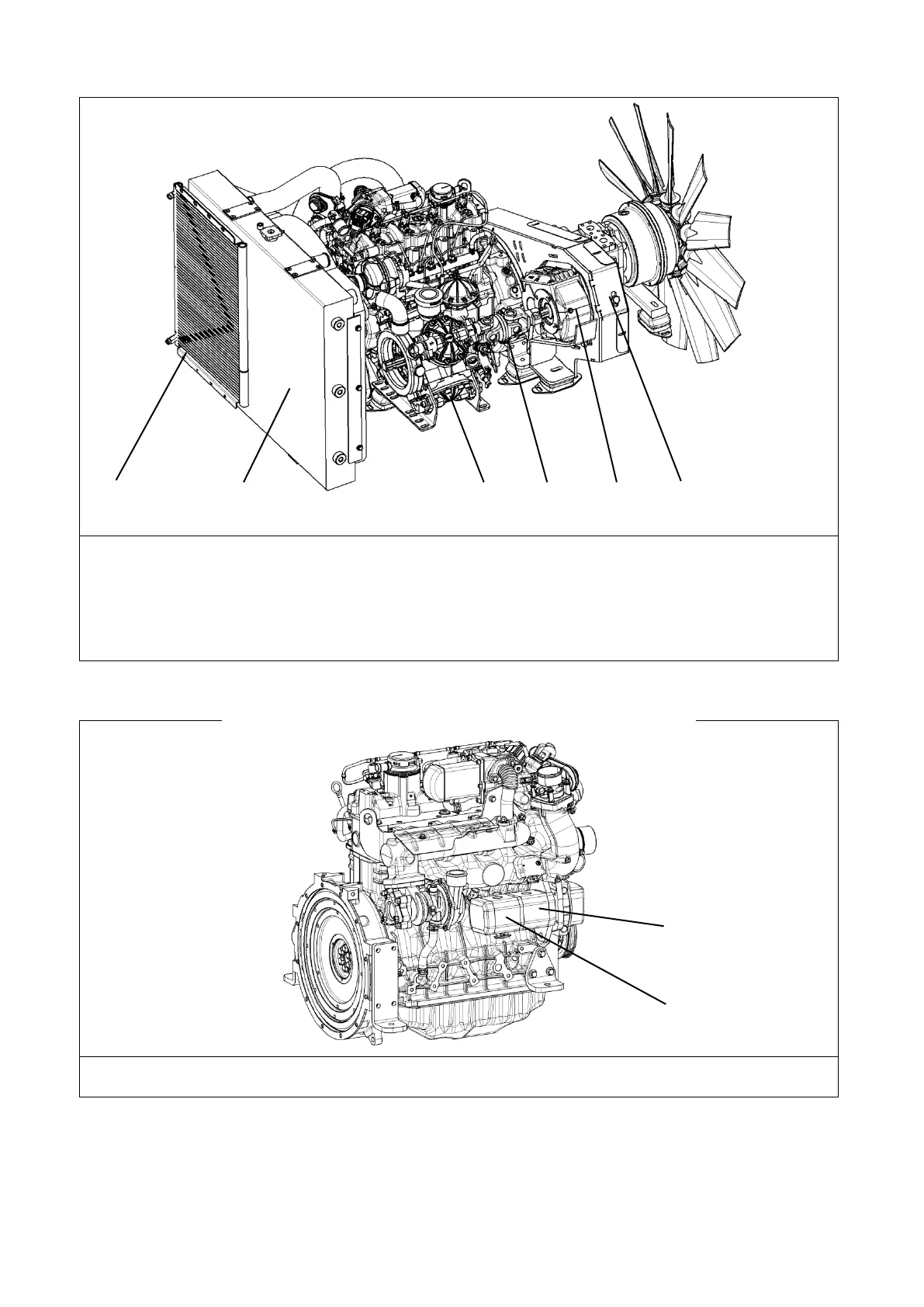

1) Chemicals pump
2) Cardan shaft
3) Gear box for chemicals pump
4) Clucth for chemicals pump
5) Main cooler
6) A/C condenser
Gear pumps for hydraulic services are connected to engine PTO:
1) Gear pump for steering
2) Gear pump for extra hydraulic services (optional)
1
2
3
4
6
5
2
1
