NOTE: The number of switches and lights installed may vary depending on the type of equipment requested.
Mechanical Hi/Low gear
A) Work speed – I - slow
B) Road speed – II - fast
C) Neutral
NOTE: when the Hi/Low lever is neutral position it is possible to tow the machine.

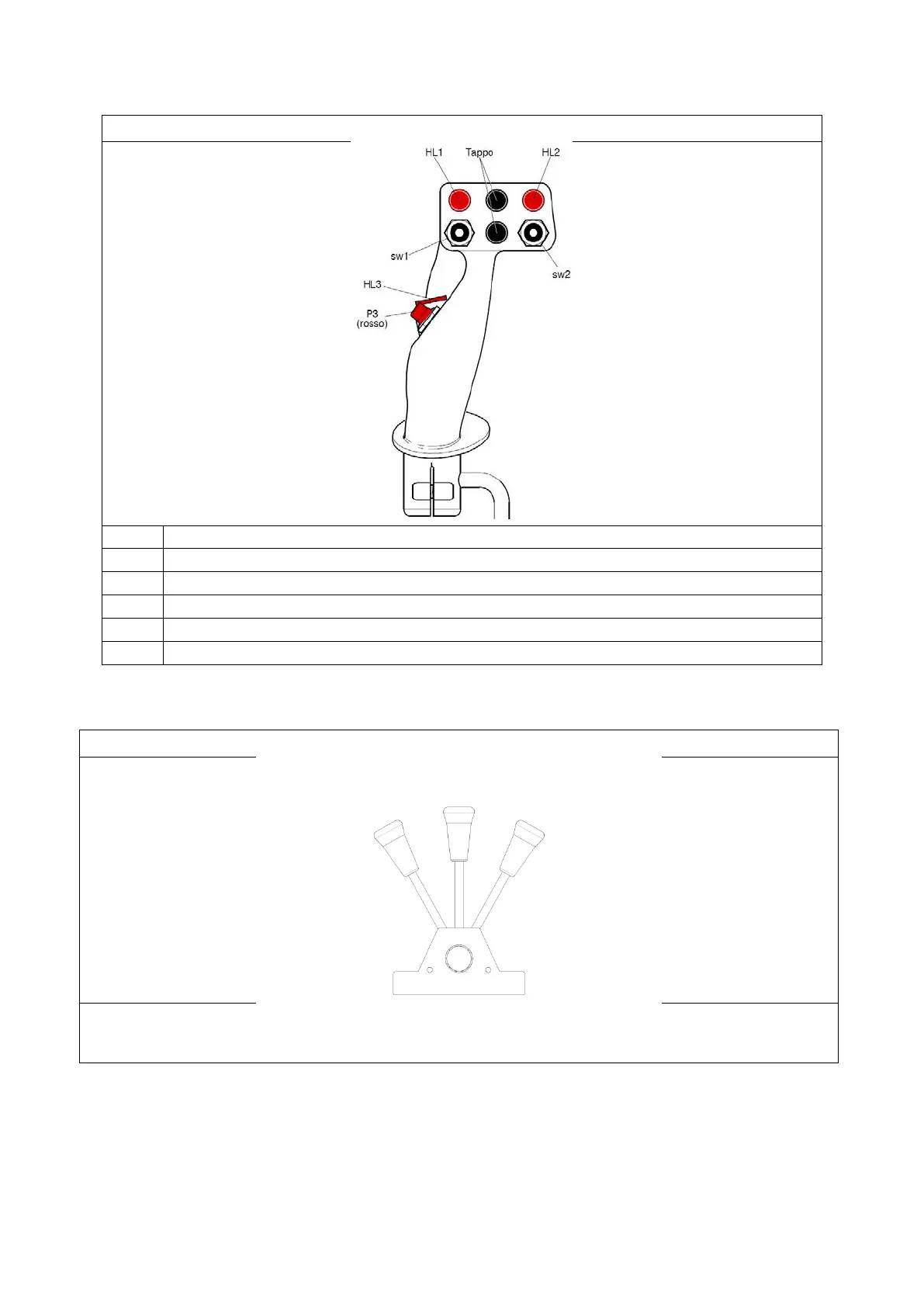

Main Joystick
HL1)
Left nozzle section ON light
SW1)
Left nozzle section switch
HL2)
Right nozzle section ON light
SW2)
Right nozzle section switch
HL3)
Total shut-off light (DUMP)
P3)
Total shut-off push button (DUMP): it turns ON/OFF all sections controlled by SW1 and SW2
A
B
C
