9-10
Section 9 Mechanical Configuration

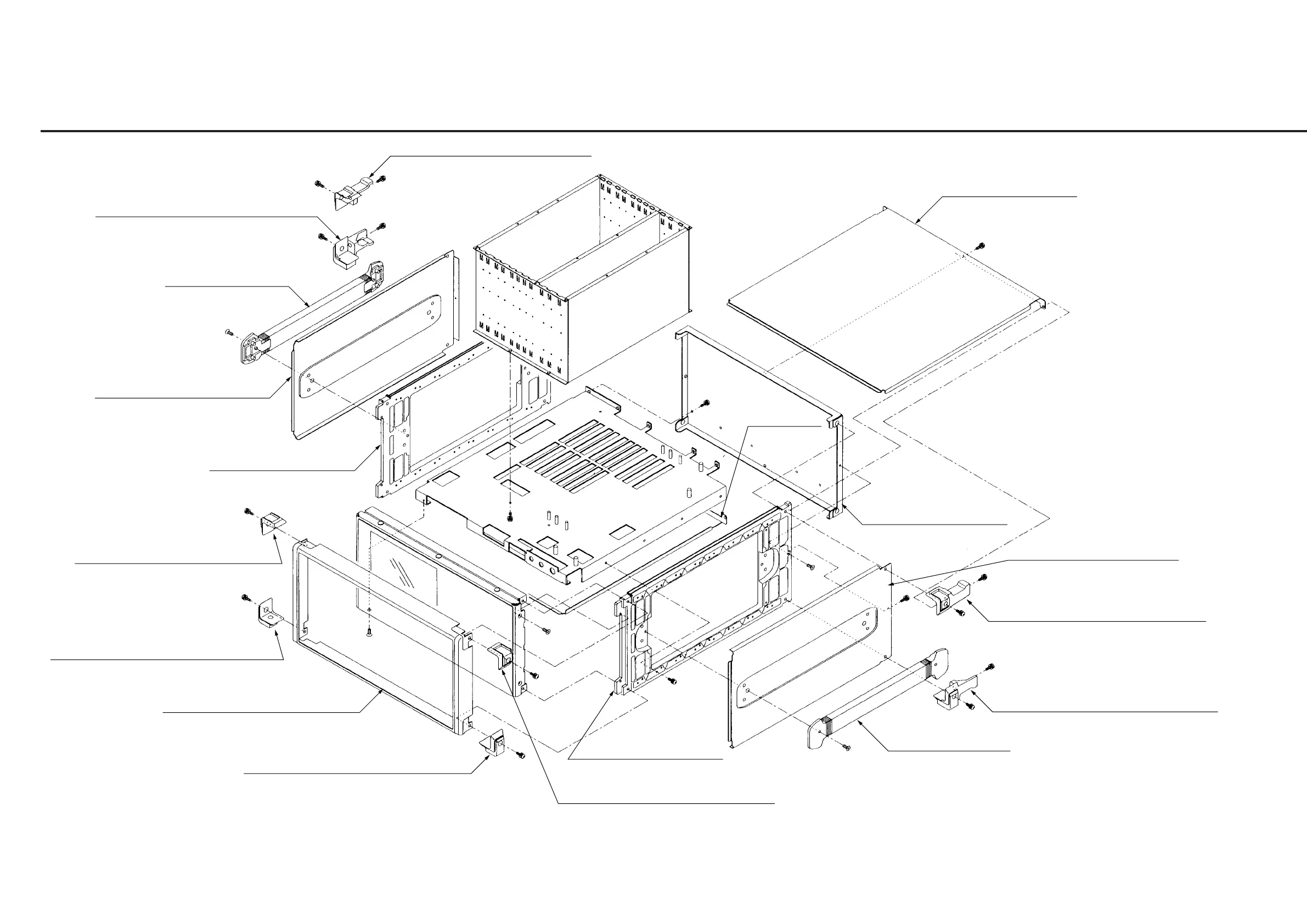

Fig. 9-8 Chassis Disassembly
[35] 32E11804 Foot, Rear Left Side Top
[36] 32E11803B Foot, Rear Left Side Bottom
[41] 339E32669 Handle
[60] 332B37786B Cover, Left Side
[61] 332B38349 Side Frame
[40] 32E11801B Foot, Front Left Side Bottom
[42] 32E11763 Front Decorative Frame
[39] 32E11802 Foot, Front Left Side Top
[37] 32E11801 Foot, Front Right Side Bottom
[38] 32E11802B Foot, Front Right Side Top
[61] 332B38349 Side Frame
[41] 339E32669 Handle
[34] 32E11803 Foot, Rear Right Side Bottom
[33] 32E11804B Foot, Rear Right Side Top
[32] 332B37786 Cover, Right Side
[43] 323B14518 Rear Panel
[31] 33B37421
Cover, Bottom
[30] 33B32676 Cover, Top
To Next Page
