Section 5 Total Adjustment
5-4
(3) YTO main coil span adjustment

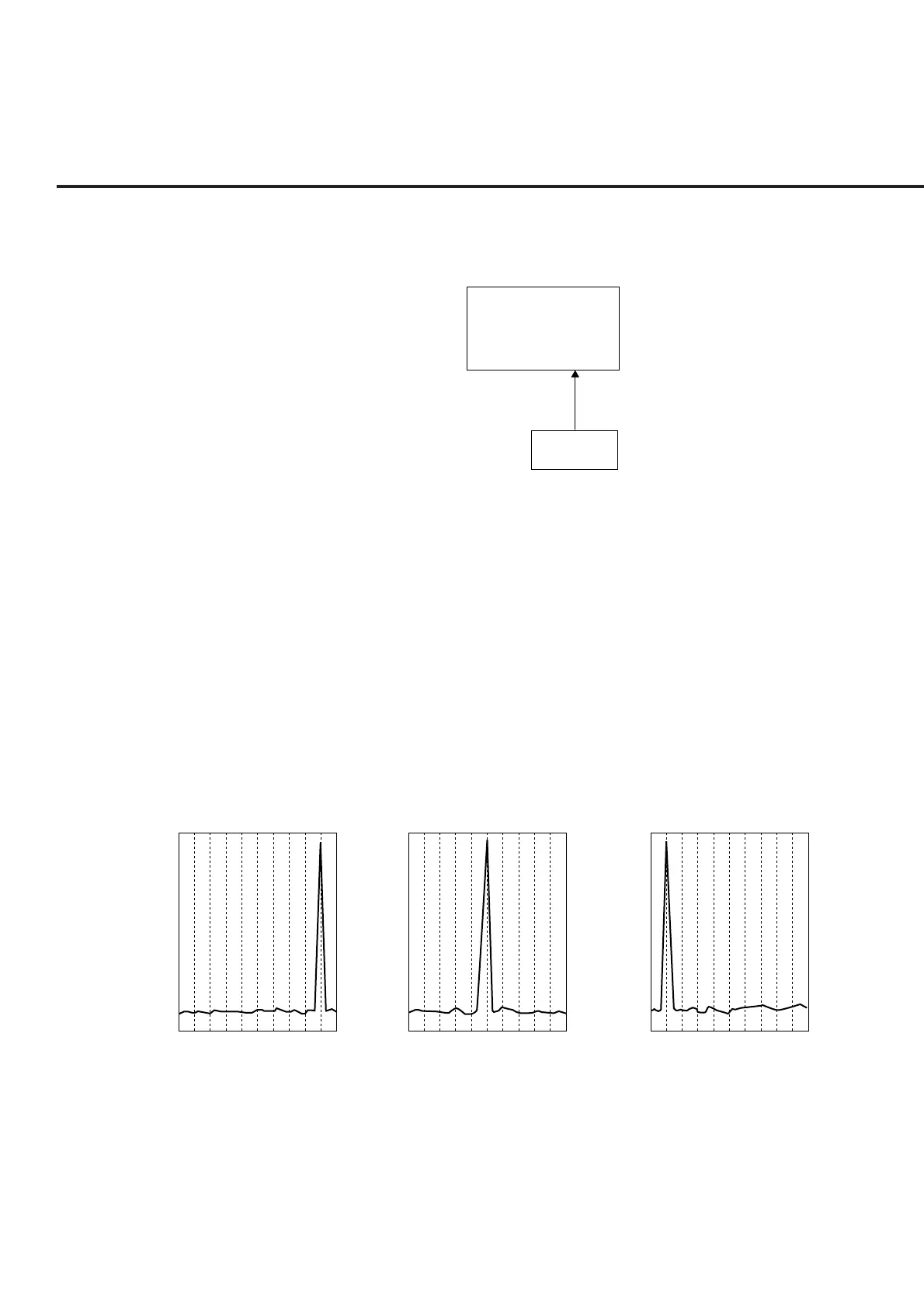

Connection figure
MT8802A
SG
[1] Setting
MT8802A: Set to the spectrum analyzer.
Center FREQ.=1000 MHz
Span Freq.=1000 MHz
SG: OUTPUT FREQ.=1000 MHz+X Hz
[2] Adjustment
Set X = 400 MHz and use the A1002 R57 to adjust the frequency on the
MT8802A measurement screen according to the marker frequency. (See
Figure C.)
[3] Confirmation
Set X = 0 or –400 MHz and confirm that the frequency is formed on the
MT8802A measurement screen as shown below. (See Figures D to E.)
Figure-C
(+400MHz)
Figure-D
(+0MHz)
Figure-E
(–400MHz)
