Section 6 Correction Software
6-40
(5) When the measurement is resumed, different connection confirmation diagrams
are displayed depending on whether the channel selector is used or not. Perform
operations in the manner described in 6.6.9 “Connection Confirmation Message
Display.” Fig. 6-35 “Example of Signal Generator Calibration Screen Display”
shows an example of a screen displayed in the process of calibration of the signal
generator.

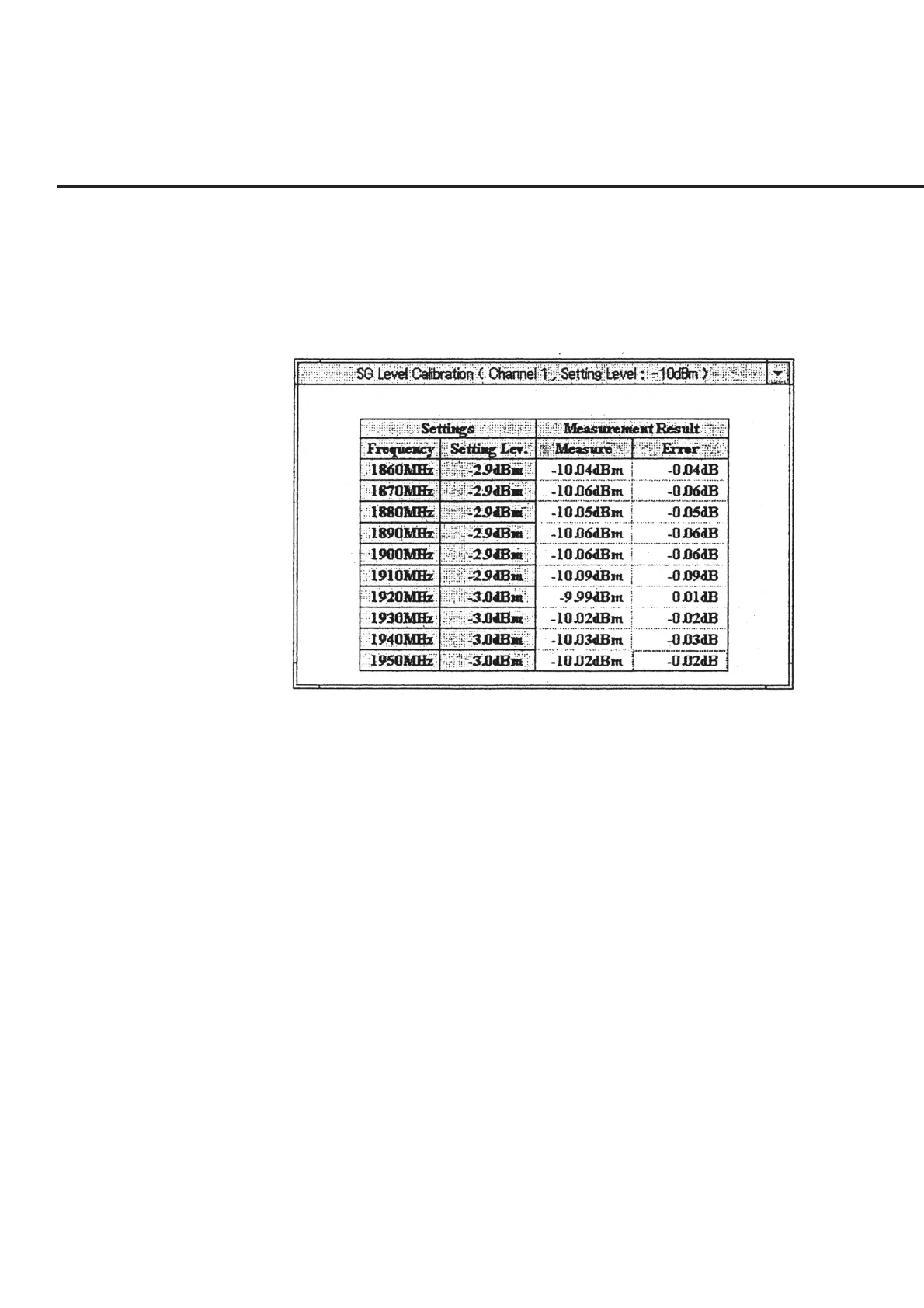

Fig. 6-35 Example of Signal Generator Calibration Screen Display
