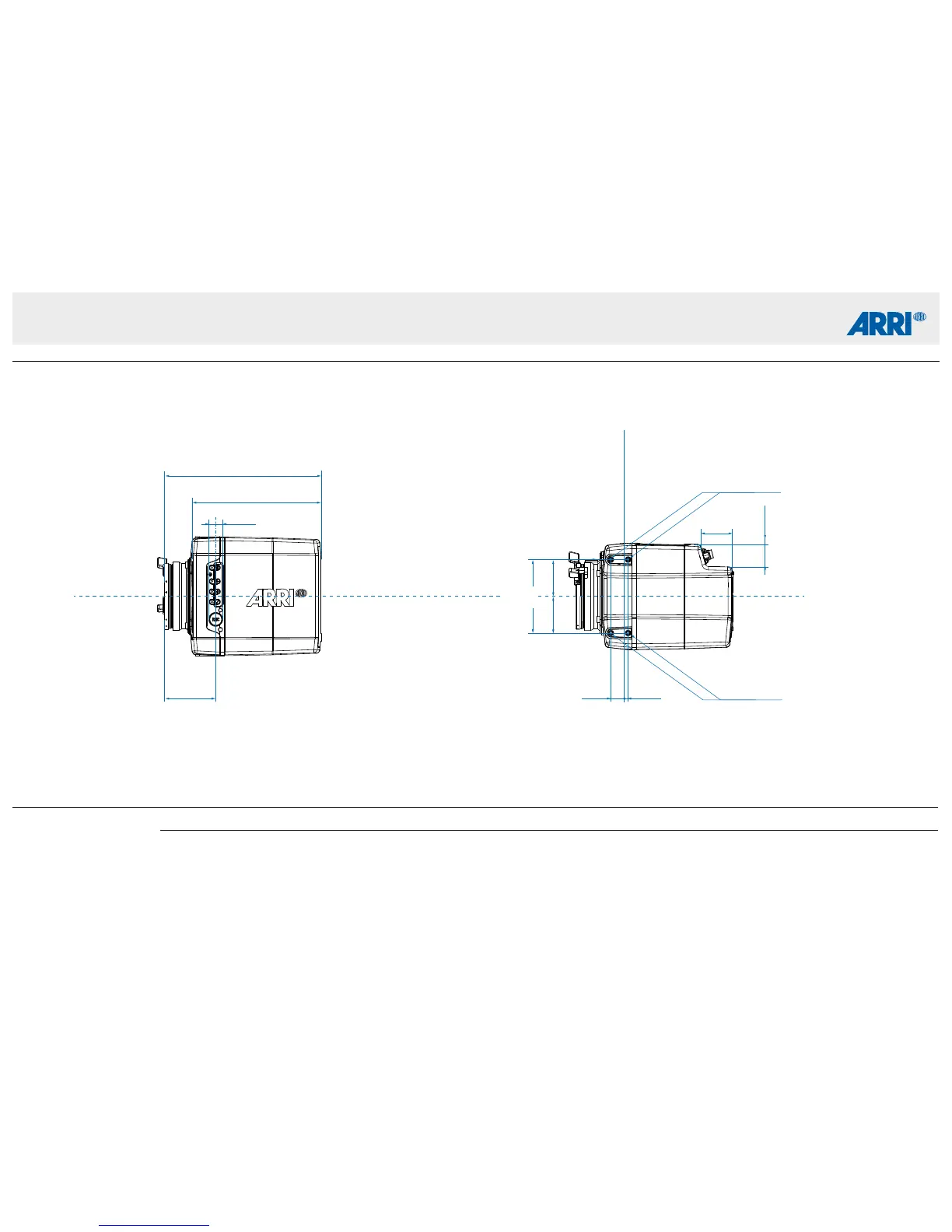

ARRI ALEXA Mini - Left and Top View Dimensions

Technical Data are subject to change without notice.CAMERA DIMENSIONS – Version 2015-08
ALEXA Mini
ALEXA Mini Length Width Height Weight
ALEXA Mini (camera body with titanium PL lens mount) 184.75 mm - 7.27” 124.83 mm - 4.91” 140 mm - 5.5” ~ 2.3 kg/5 lbs
M4 (8x) 4.4 mm deep
M4 (8x) 4.4 mm deep
Camera Top
Image Plane
Camera Left
Optical Center
151.65 mm
5.97”
16.41 mm
0.65”
16 mm
0.63”
4 mm
0.16”
43 mm
1.69”
37 mm
1.46”
27 mm
1.06”
43 mm
1.69”
(mount contact surface to camera back)
184.75 mm
7.27”
60.39 mm
2.38”
149 mm
5.87”
