Medical Device Input Module
The Medical Device Input
1
modules are used only with medical devices outfitted with Medical
Device Smart cables. The Telligence system automatically recognizes the medical device
when it is plugged into the module.
Each module sends faults and alarms from the medical device for display on staff consoles,
dome lights, mobile devices, and PCs. The module also sends medical information to an
Electronic Medical Records (EMR) system database for later use.
Note: Medical staff should check their facility’s EMR system to ensure that the medical device
is being used with the proper patient.

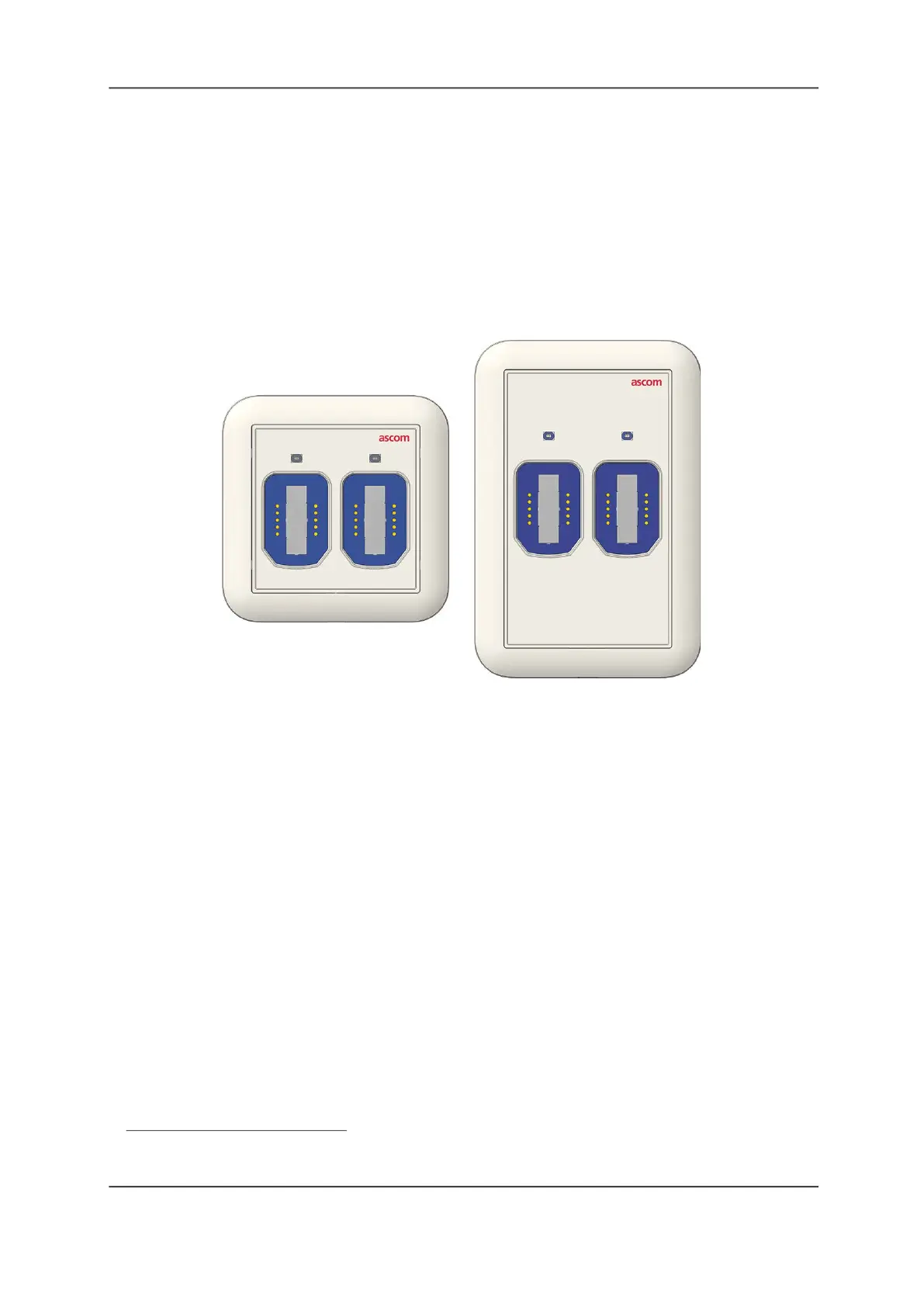

Figure 55: Medical Device Input Modules
Each Medical Device Input module contains two SafeConnect sockets. The blue magnetic
sockets use reverse polarity magnets to connect to compatible Medical Device Smart Cable
plugs. All other SafeConnect plugs use a different magnets type to connect and will not work
with this module.
Module LEDs
When handsets or other devices are connected to the module, the green LED above the
SafeConnect socket brightens to indicate a good connection, then dims to its back-lit level.
Should the module detect an unintentional disconnect, the LED illuminates red and flashes.
Medical Device Smart Cable
The Medical Device Smart cable features an Intentional Disconnect button, as shown in the
following figure.
