Digital Video Recorder
3
Chapter 2 ─ Installation
Package Contents
The package contains the following:
y Digital Video Recorder
y Power Cord
y User’s Manual (This Document)
y RAS Software CD and User’s Manual
y Rack-mount Kit
y Assembly Screws and Guide Rails for Adding Hard Disk Drives
Required Installation Tools
No special tools are required to install the DVR. Refer to the installation manuals for the other items that
make up part of your system.

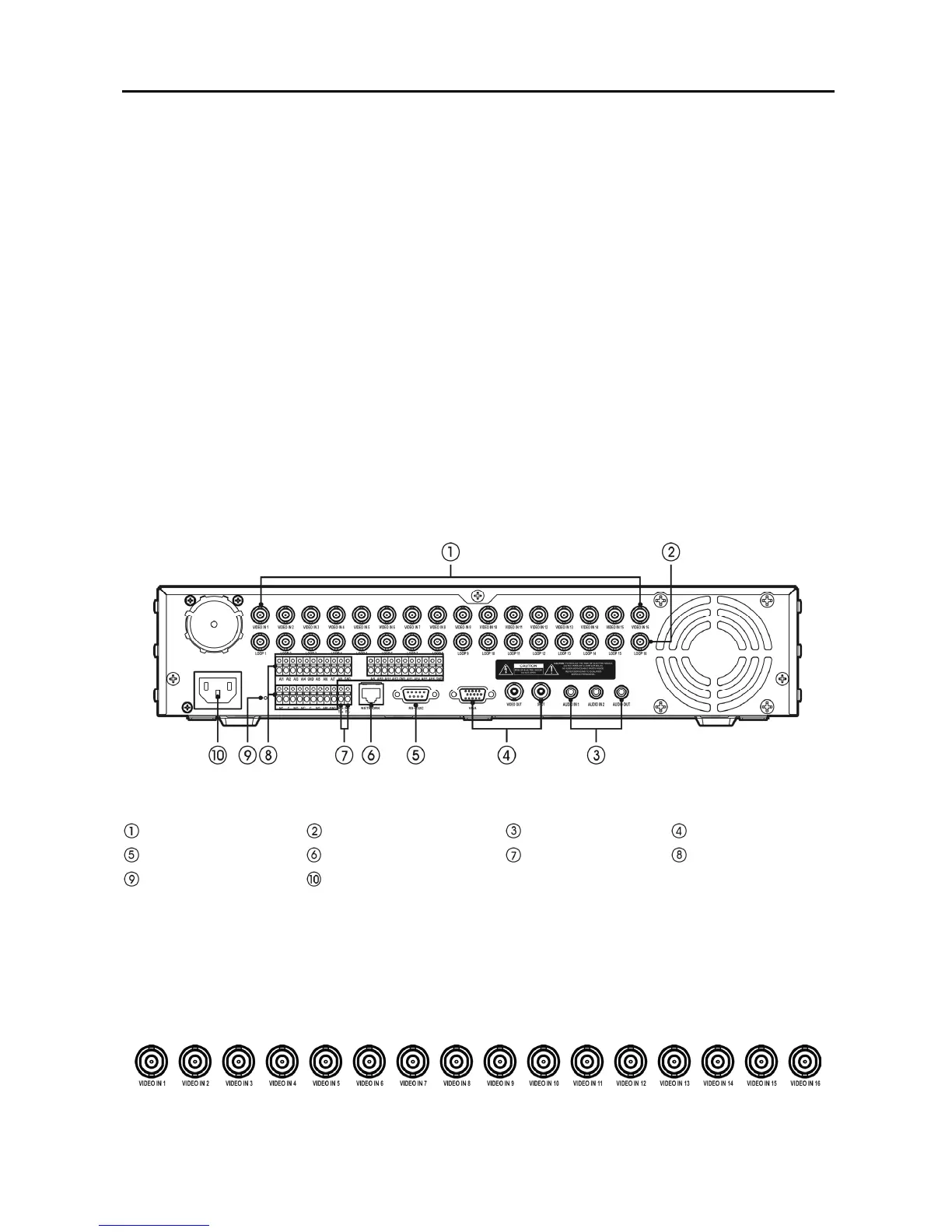

Figure 2 ─ 16-Channel DVR rear panel.
Video Input
Video Loop Through
Audio In/Out
Video Out
RS232C Port
Network Port
RS485 Port
Alarm Input/Output
Factory Reset Switch
Power Cord Connector
Your DVR can be used with either NTSC or PAL equipment.
NOTE: You cannot mix NTSC and PAL equipment. For example you cannot use a PAL camera
and an NTSC monitor.
Video Input
Connect the coaxial cables from the video sources to the BNC Video In connectors.
