Each alarm output can be given its own title by highlighting the box under the Title heading and pressing
the button. A virtual keyboard appears allowing you to enter the title.
Highlighting the boxes under the Type heading allows to set the alarm output for NO or NC (normally
open or normally closed).
Highlighting the box beside Dwell Time and pressing the
button allows you to set the dwell time of
the alarm output. Dwell times range from 5 seconds to 15 minutes.
Highlighting the Schedule tab causes the Schedule screen to display.

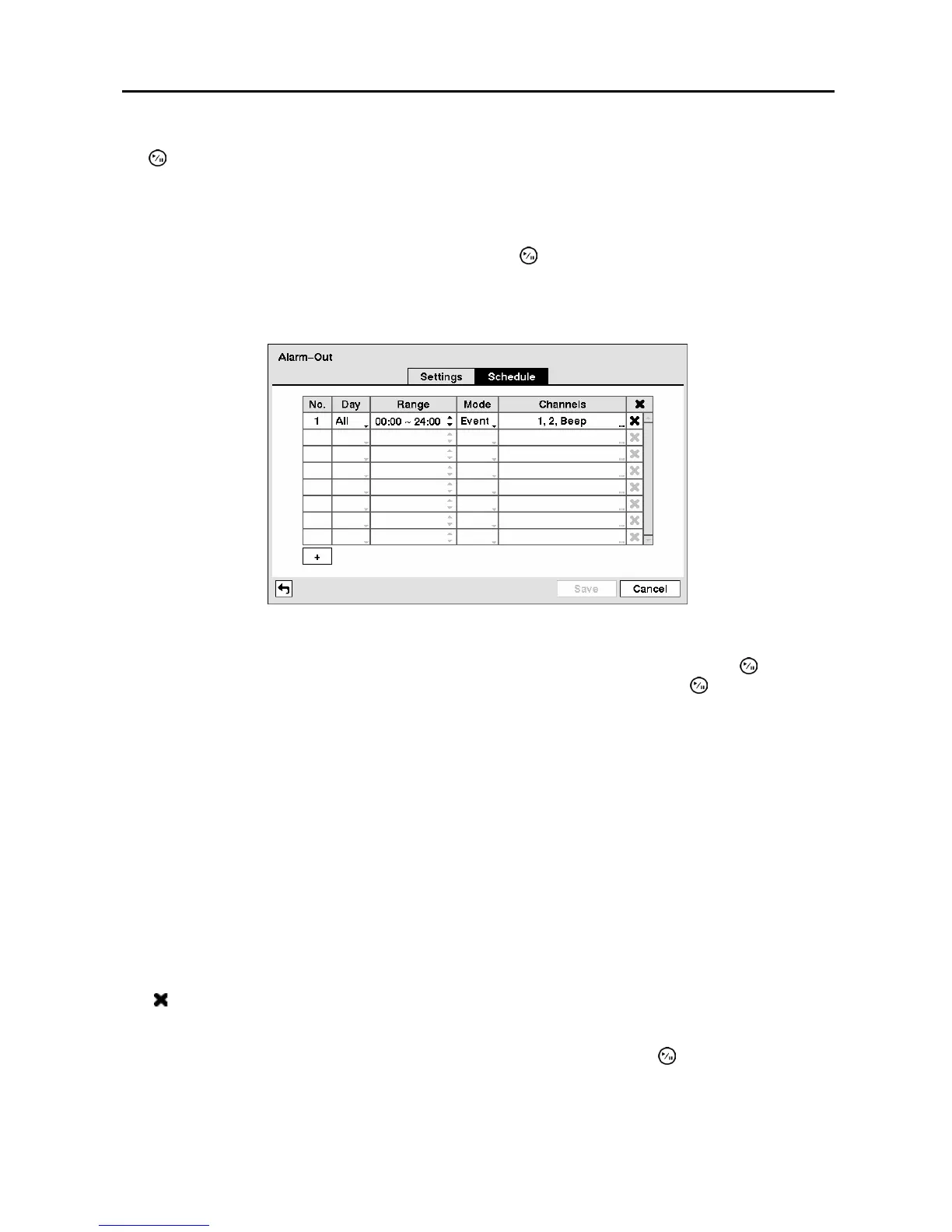

Figure 42 ─ Alarm-Out Schedule screen.
You can add and edit alarm output schedules on this screen. Highlight the + and press the button to
add a schedule. Highlighting the boxes under the Column heading and pressing the button allows you
to edit the information in those boxes.
The Day box allows you to select the days that the alarm schedule will be active. The choices are: Sun,
Mon, Tue, Wed, Thu, Fri, Sat, M~F, Hol and All.
The Range box allows you to set the time that the alarm schedule will be active in 15-minute increments
from 00:00 to 24:00.
The Mode box allows you to set how the alarm reacts during the scheduled time. When set to On, the
Alarm-Out is active during the scheduled time. When set to Event, the Alarm-Out is only active when
there is an Event during the scheduled time.
The Channels box allows you to set which alarm outputs will be active. You can also select the DVR’s
internal buzzer.
The
box allows you to delete an alarm output schedule. You will be asked to confirm whether or not
you really wish to delete the schedule.
You can save your Alarm-Out changes by highlighting Save and pressing the
button. Selecting
Cancel exits the screen without saving the changes.
