Digital Video Recorder
39

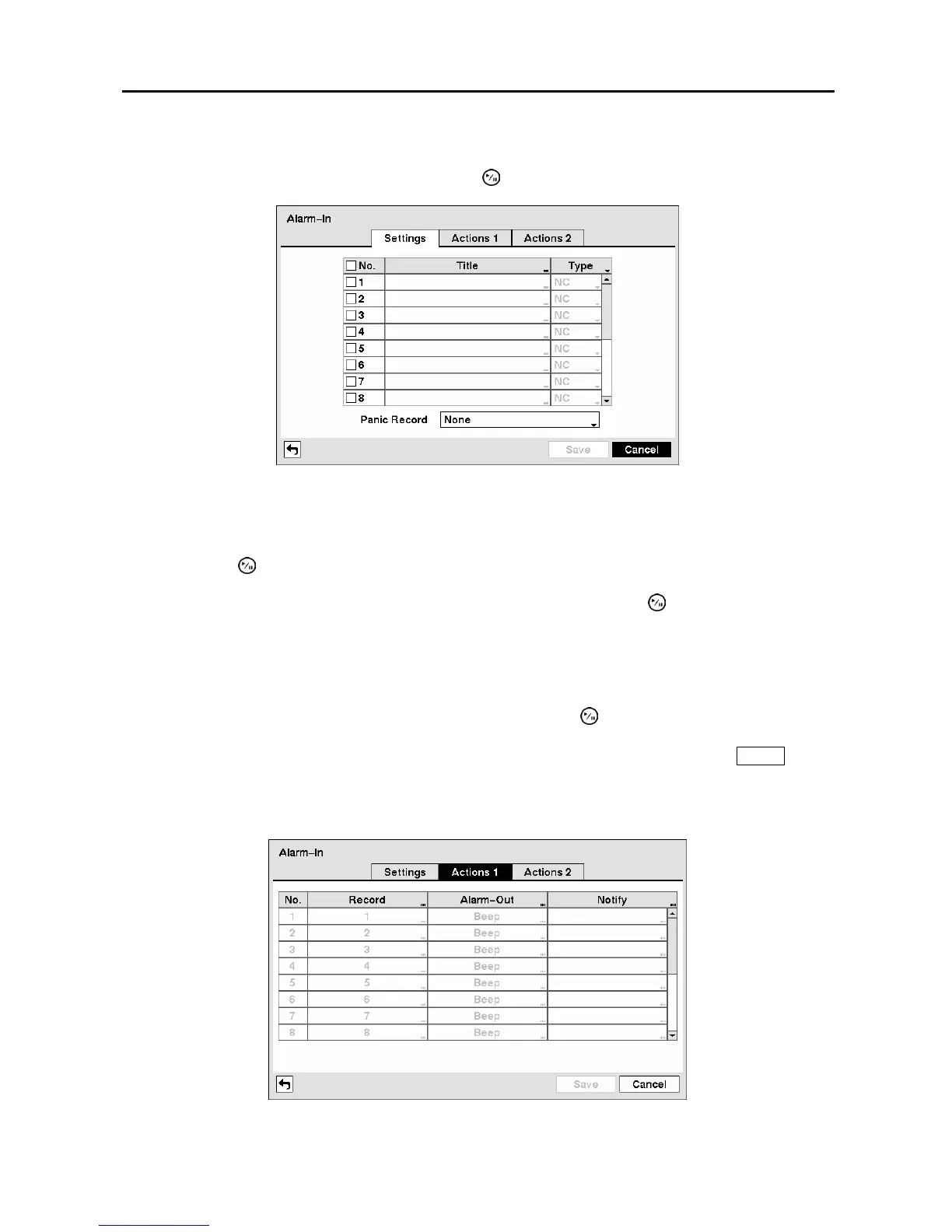

Alarm-In Screen
Highlight Alarm-In in the Event menu and press the button. The Alarm-In setup screen appears.
Figure 54 ─ Alarm-In Settings screen.
The alarm terminal strip on the back of the DVR has inputs associated with each alarm. You can set up
each input on the Alarm-In screen. You can turn each input On or Off by highlighting the alarm number
and pressing the
button.
Each input can be given a title. Highlight the desired Title box and press the button. A virtual
keyboard appears allowing you to enter a title name.
Each input can be set as NO (normally open) or NC (normally closed).
You can set up the DVR to start panic recording whenever it senses an input on one of its alarm input
connectors. Highlight the box beside Panic Record and press the
button. A list of Alarm Inputs
appears, and you can select which alarm input you want associated with panic recording. The DVR will
continue panic recording until an input on the selected alarm input is released as long as the
PANIC button
is not pressed to stop the panic recording.
Highlight the Actions 1 and Actions 2 tabs, and the Actions 1 and Actions 2 setup screens appear.
Figure 55 ─ Alarm-In Actions 1 screen.
