PTZ Mode
If a user who has PTZ Control authority logs into the system, the user can control PTZ cameras. The
DVR will control cameras with Pan, Tilt and Zoom capabilities. Press and hold the
PTZ button for two
seconds or longer to display the PTZ camera menu and enter the PTZ mode, and press the button again to
exit the PTZ mode.
You can save camera position settings as “presets” so that you can go directly to desired views.
Pressing the MENU button displays the following PTZ menu.
Select the PTZ camera you wish to control. The icon flickers on the PTZ camera
screen. You can control the camera using front panel control buttons, by setting up
presets or by selecting the expanded PTZ features. To use the front panel buttons,
press the Left and Right arrow buttons to pan left and right. Press the Up and Down
arrow buttons to tilt the camera up and down. Press the camera button 1 to zoom in,
and press the button 2 to zoom out. You can use the button 3 and button 4 to focus the
image. You can establish preset positions for PTZ cameras. Press the camera button 6
to establish Presets. You can quickly move PTZ cameras to Preset positions. Press the
camera button 5 to view an establish camera Preset position.

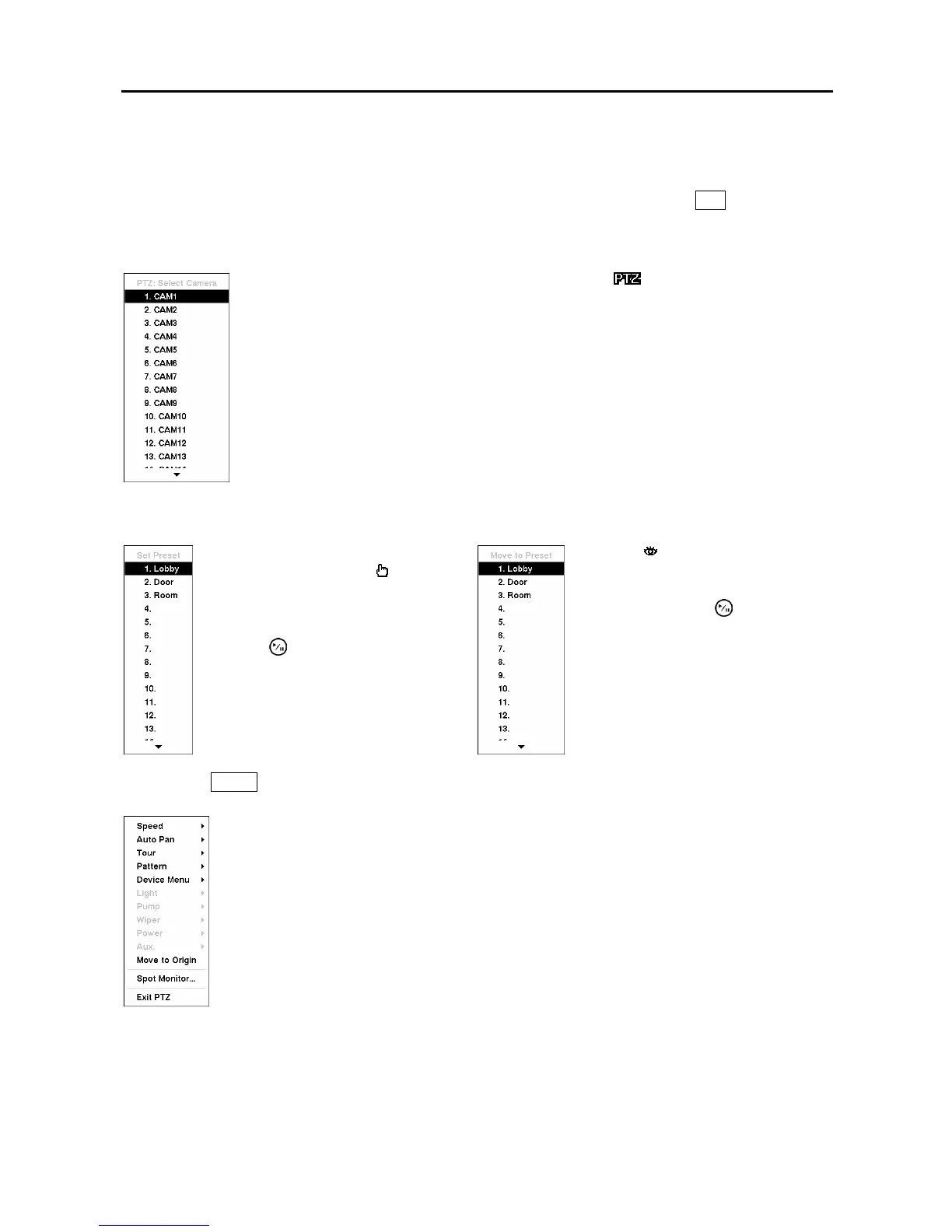

Figure 80 ─ PTZ Select Camera menu.
Once you have the camera at the
desired settings, press the
button,
and the PTZ Preset dialog box will
appear. Select the number you
want to assign to the preset and
press the
(Play/Pause) button.
Use the virtual keyboard to enter
the preset name.
Figure 81 ─ PTZ Preset screen.
Press the button to load the PTZ
preset and the Preset View dialog
box will appear. Select the desired
preset and press the
button to load
the preset.
Figure 82 ─ Preset View screen.
Set the feature you wish to control by selecting it from the menu. Refer to the camera
manufacturer’s instructions for the proper settings. Depending on the camera
specifications, some features may not be supported.
Figure 83 ─ PTZ menu.
