AudioCodes MP-124 User Manual

Version 5.8 111 September 2009
SIP User's Manual 3. Web-Based Management
¾ To configure the IP Profile settings:
1. Open the 'IP Profile Settings' page (Configuration tab > Protocol Configuration
menu > Coders And Profile Definition submenu > IP Profile Settings).

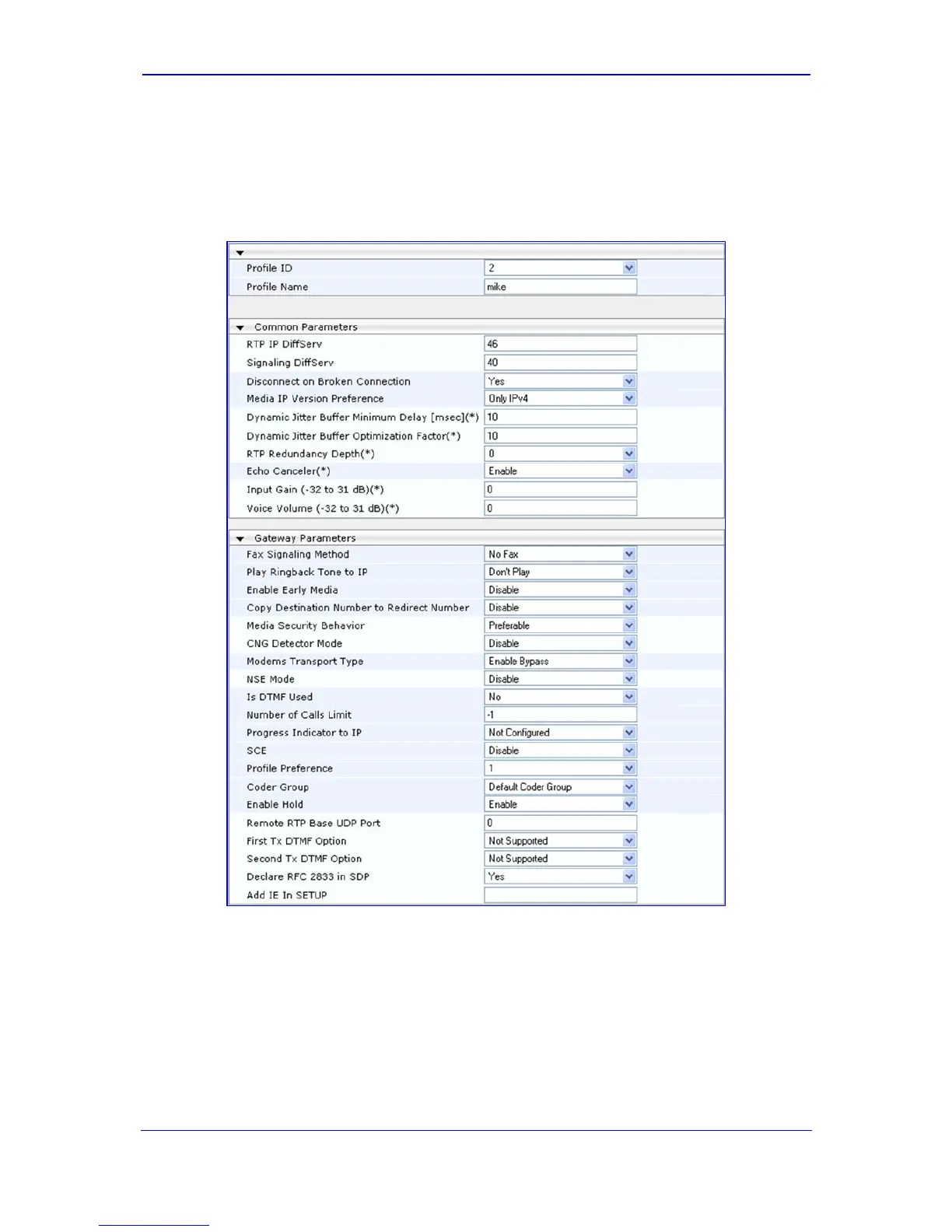

Figure 3-66: IP Profile Settings Page
2. From the 'Profile ID' drop-down list, select an identification number for the IP Profile.
3. In the 'Profile Name' field, enter an arbitrary name that allows you to easily identify the
IP Profile.

AudioCodes MP-124 Specifications

General

Model	MP-124
Category	Gateway
Analog Ports	24 FXS
Ethernet Ports	2
Protocol Support	SIP, H.323
Fax Support	T.38, G.711 pass-through
Power Supply	100-240VAC, 50-60Hz
Operating Temperature	0°C to 40°C
Voice Codecs	G.711, G.729, G.723.1, G.726
Management	SNMP
Storage Temperature	-20°C to 70°C
Humidity	10% to 90%, non-condensing
Network Interface	10/100Base-T Ethernet
