AudioCodes MP-124 User Manual

Version 5.8 179 September 2009
SIP User's Manual 3. Web-Based Management
3.5.1.4 Viewing Device Information
The 'Device Information' page displays the device's specific hardware and software product
information. This information can help you expedite troubleshooting. Capture the page and
e-mail it to AudioCodes Technical Support personnel to ensure quick diagnosis and
effective corrective action. This page also displays any loaded files used by the device
(stored in the RAM) and allows you to remove them.
¾ To access the 'Device Information' page:
 Open the 'Device Information' page (Status & Diagnostics tab > Status &
Diagnostics menu > Device Information page item).

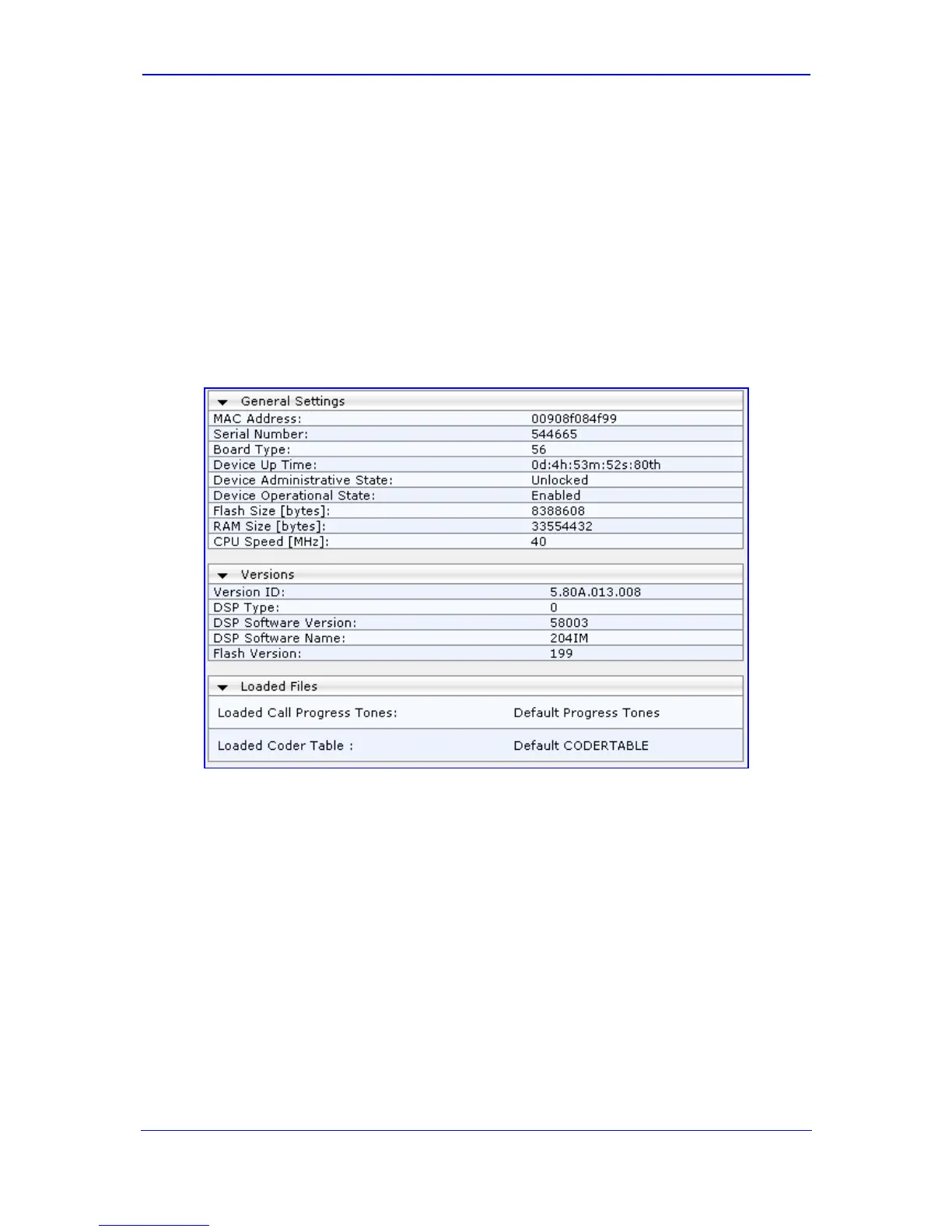

Figure 3-108: Device Information Page
The 'Board Type' field number depicts the following devices:
 MP-118 = 56
 MP-114 = 57
 MP-112 = 58
 MP-124 FXS = 3
¾ To delete a loaded file:
 Click the Delete button corresponding to the file that you want to delete. Deleting a file
takes effect only after device reset (refer to ''Resetting the Device'' on page 165).

AudioCodes MP-124 Specifications

General

Model	MP-124
Category	Gateway
Analog Ports	24 FXS
Ethernet Ports	2
Protocol Support	SIP, H.323
Fax Support	T.38, G.711 pass-through
Power Supply	100-240VAC, 50-60Hz
Operating Temperature	0°C to 40°C
Voice Codecs	G.711, G.729, G.723.1, G.726
Management	SNMP
Storage Temperature	-20°C to 70°C
Humidity	10% to 90%, non-condensing
Network Interface	10/100Base-T Ethernet
