SIP User's Manual 54 Document #: LTRT-65412
MP-11x & MP-124

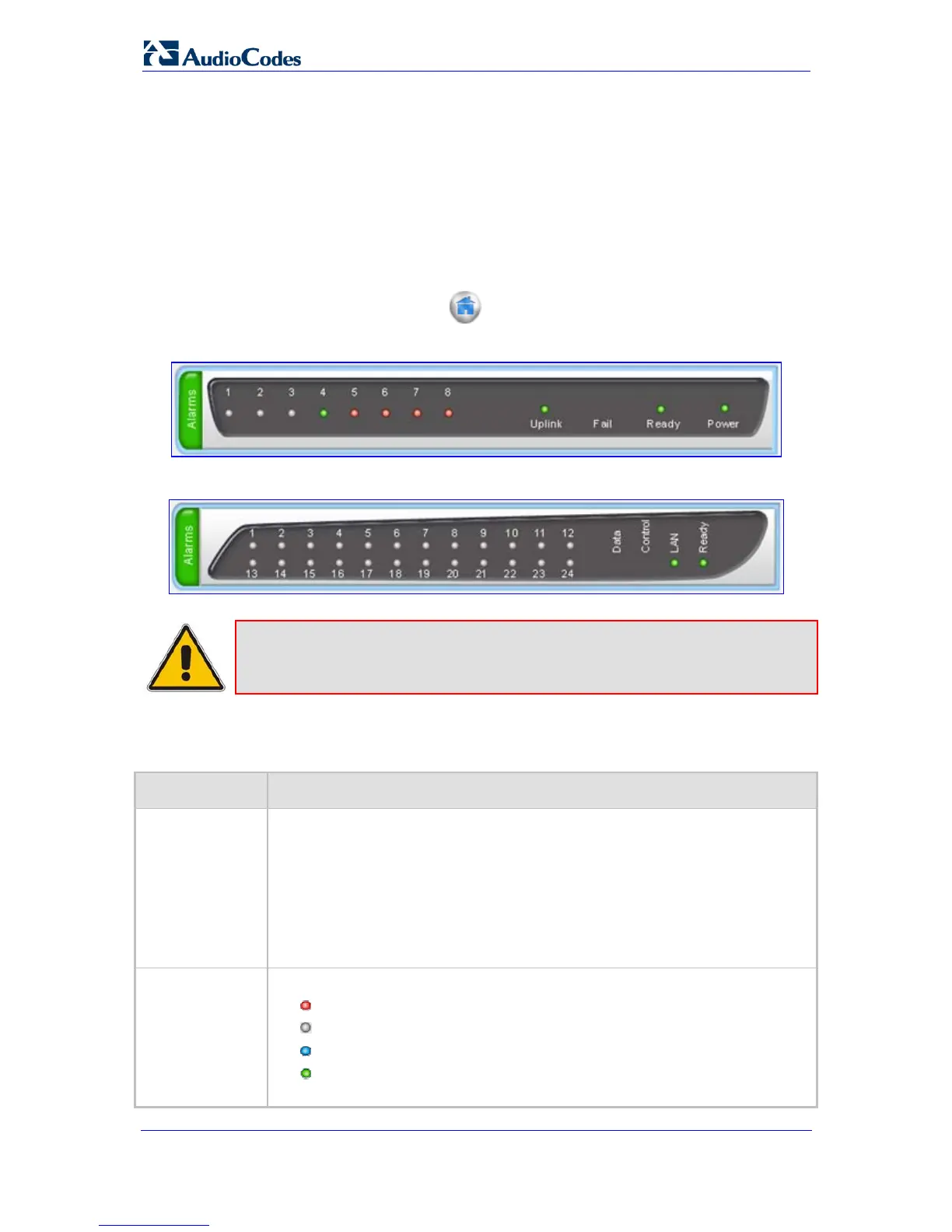

3.2 Using the Home Page
The 'Home' page provides you with a graphical display of the device's front panel,
displaying color-coded status icons for monitoring the functioning of the device. The 'Home'
page also displays general device information (in the 'General Information' pane) such as
the device's IP address and firmware version.
By default, the 'Home' page is displayed when you access the device's Web interface.
¾ To access the Home page:
On the toolbar, click the Home icon; the 'Home' page is displayed.
Figure 3-28: MP-11x Home Page
Figure 3-29: MP-124 Home Page
Note: The displayed number and type (FXO and/or FXS) of channels depends on
the device's model (e.g., MP-118 or MP-114).
The table below describes the areas of the 'Home' page.
Table 3-5: Description of the Areas of the Home Page
Label Description
Alarms
Displays the highest severity of an active alarm raised (if any) by the device:
Green = no alarms.
Red = Critical alarm
Orange = Major alarm
Yellow = Minor alarm
To view a list of active alarms in the 'Active Alarms' page (refer to Viewing Active
Alarms on page 180), click the Alarms a
rea.
Channel / Ports
Displays the status of the ports (channels):
(red): line not connected (only applicable to FXO devices)
(grey): channel inactive
(blue): handset is off-hook
(green): active RTP stream
You can also view the channel's port settings (refer to ‘Viewing Port Information‘
