SIP User's Manual 3. Web-Based Management
3.1.3 Toolbar
The toolbar provides command buttons for quick-and-easy access to frequently required
commands, as described in the table below:
Table 3-1: Description of Toolbar Buttons
Icon Button
Name
Description
Submit
Applies parameter settings to the device (refer to ''Saving
Configuration'' on page 167).
Not
e: This icon is grayed out when not applicable to the currently
opened page.
Burn
Saves parameter settings to flash memory (refer to ''Saving
Configuration'' on page 167).
Device
Actions
Opens a drop-down menu list with frequently needed commands:
Load Configuration File: opens the 'Configuration File' page for
loading an ini file (refer to ''Backing Up and Restoring
Configuration'' on page 175).
Save Configuration File: opens the 'Configuration File' page for
saving the ini file to a PC (refer to ''Backing Up and Restoring
Configuration'' on page 175).
Reset: opens the 'Maintenance Actions' page for resetting the
device (refer to ''Resetting the Device'' on page 165).
Software Upgrade Wizard: opens the 'Software Upgrade Wizard'
page for upgrading the device's software (refer to ''Software
Upgrade Wizard'' on page 171).
Home
Opens the 'Home' page (refer to ''Using the Home Page'' on page
54).
Help
Opens the Online Help topic of the currently opened configuration
page in the Work pane (refer to ''Getting Help'' on page 51).
Log off
Logs off a session with the Web interface (refer to ''Logging Off the
Web Interface'' on page 52).
Note:
If you modify parameters that take effect only after a device reset, after you
click the Submit button, the toolbar displays the word "Reset" (in red color),
as shown in the figure below. This is a reminder to later save ('burn') your
settings to flash memory and reset the device.

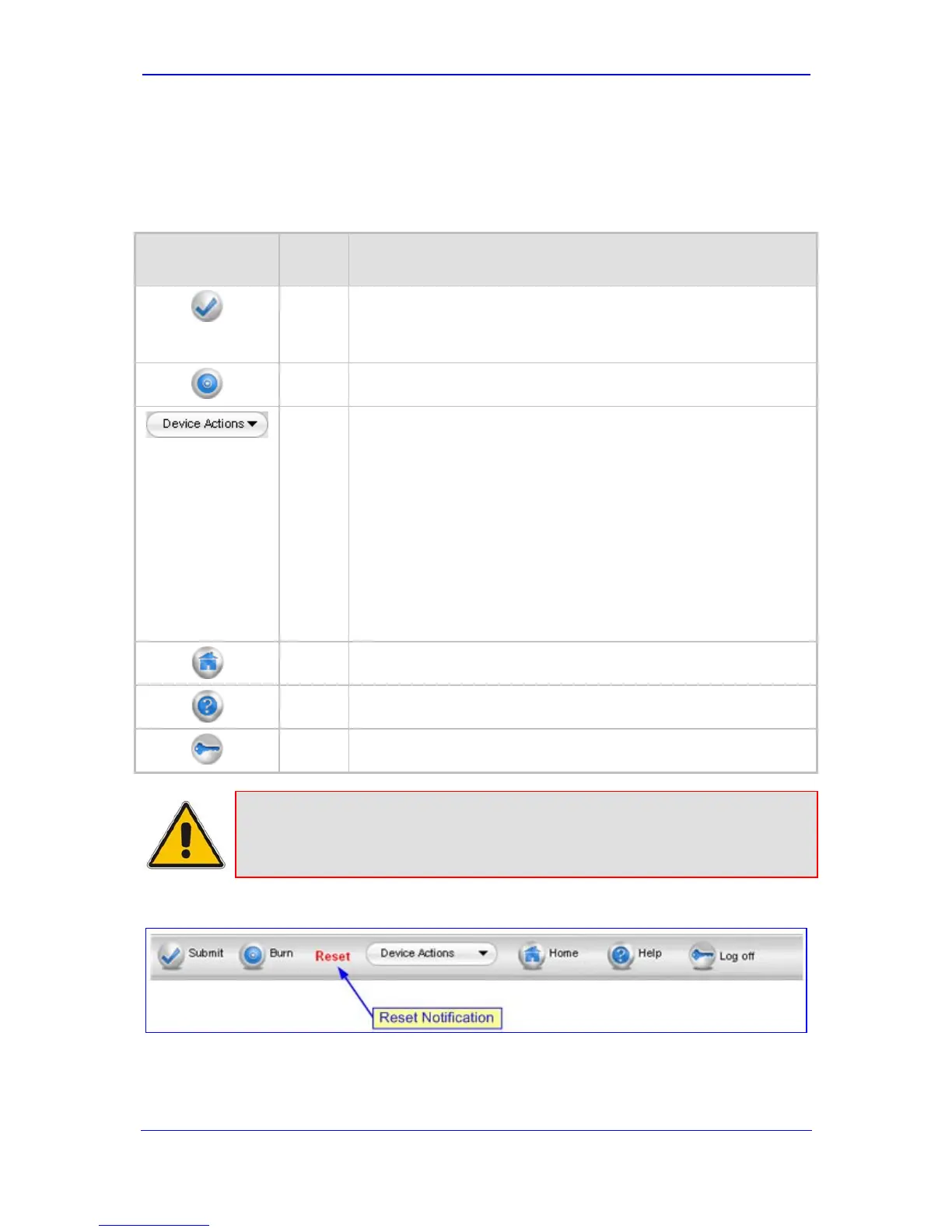

Figure 3-3: "Reset" Displayed on Toolbar
