Version 5.8 43 September 2009

SIP User's Manual 3. Web-Based Management

3.1.7.2 Accessing a Scenario

Once you have created the Scenario, you can access it at anytime by following the

procedure below:

¾ To access the Scenario:

1. On the Navigation bar, select the Scenario tab; a message box appears, requesting

you to confirm the loading of the Scenario.

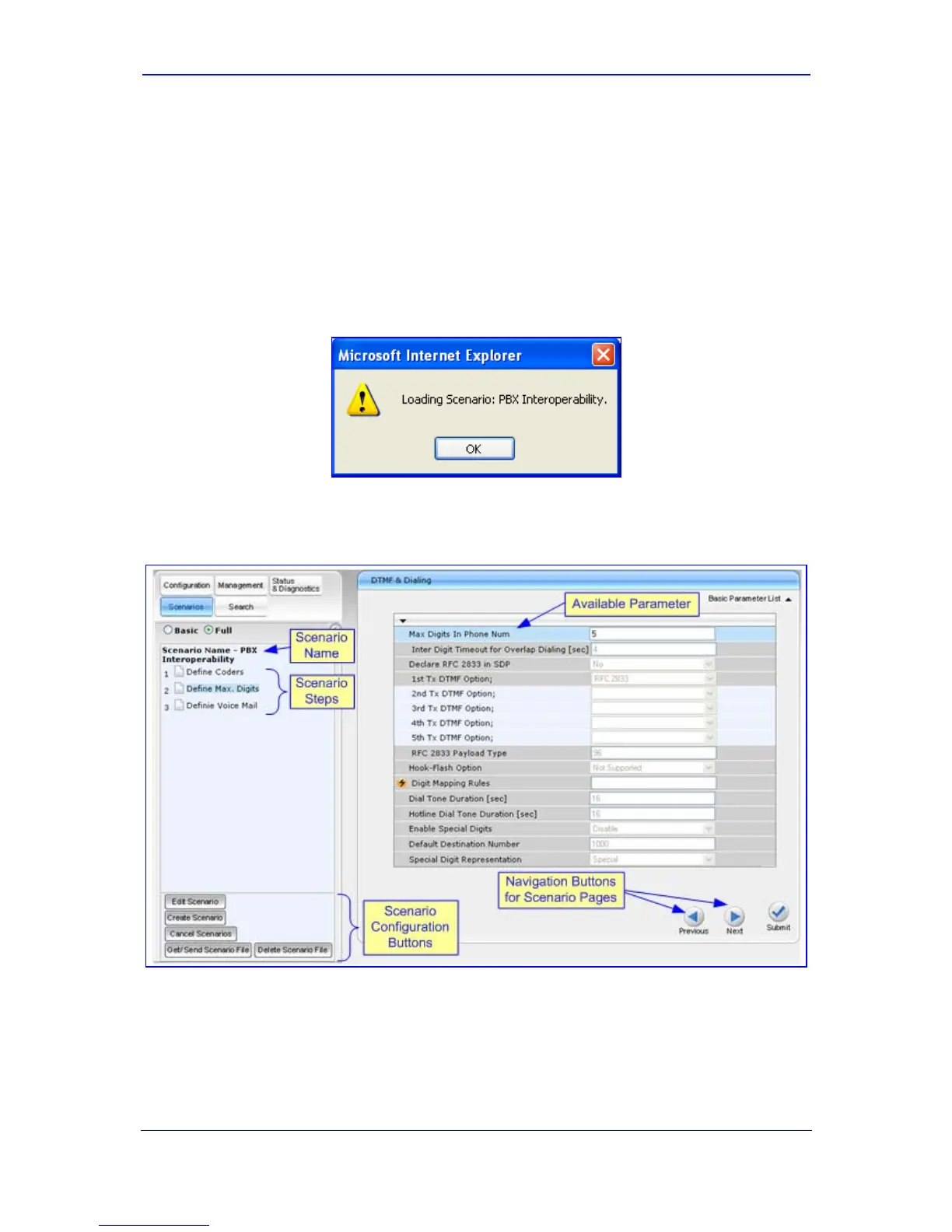

Figure 3-16: Scenario Loading Message Box

2. Click OK; the Scenario and its Steps appear in the Navigation tree, as shown in the

example figure below:

Figure 3-17: Scenario Example

When you select a Scenario Step, the corresponding page is displayed in the Work pane. In

each page, the available parameters are indicated by a dark-blue background; the

unavailable parameters are indicated by a gray or light-blue background.
