SIP User's Manual 56 Document #: LTRT-65412
MP-11x & MP-124
3.2.2 Viewing Analog Port Information
The 'Home' page allows you to view detailed information on a specific FXS or FXO analog
port such as RTP/RTCP and voice settings.
¾ To view detailed port information:
1. Click the port for which you want to view port settings; the shortcut menu appears.

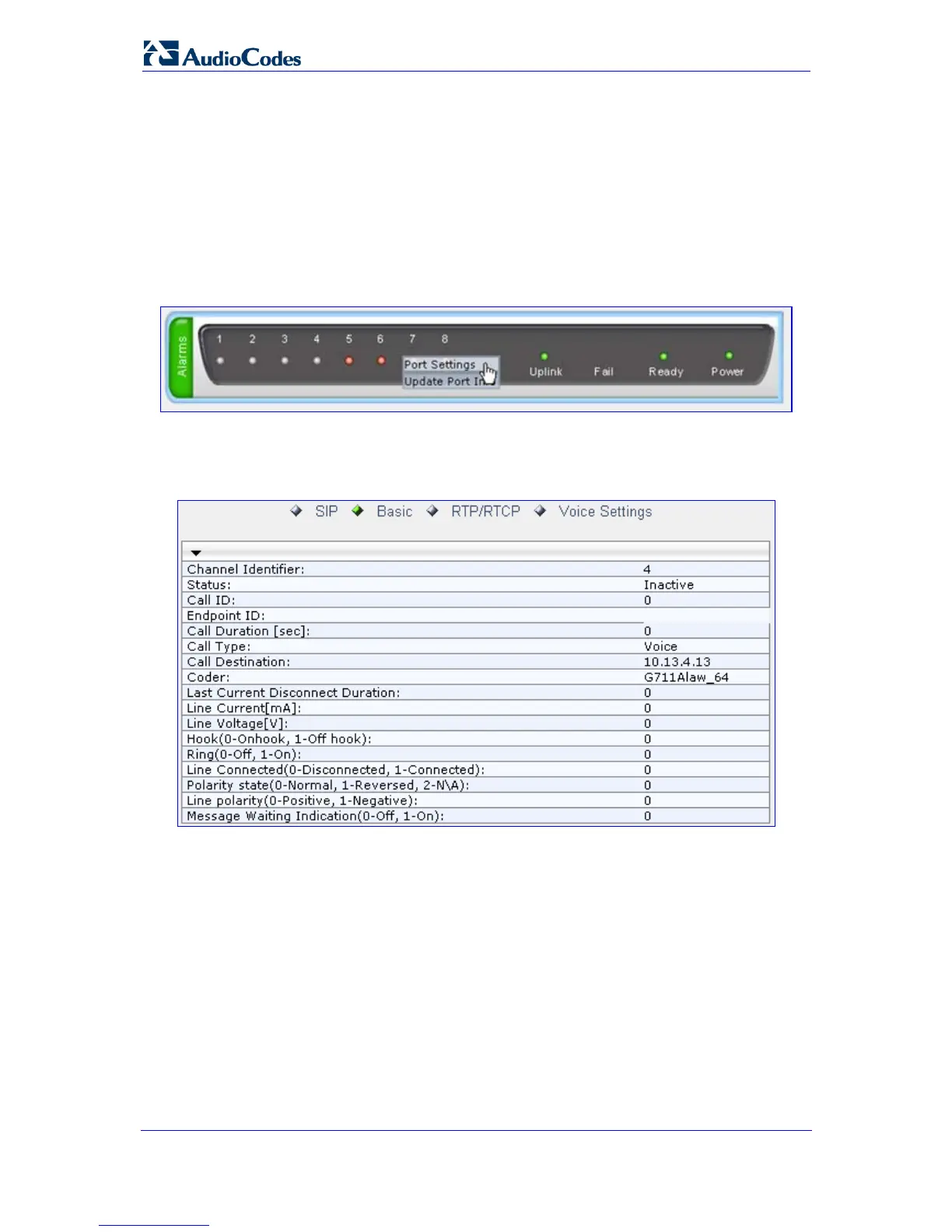

Figure 3-32: Shortcut Menu for Port Settings (e.g. MP-11x Home Page)
2. From the shortcut menu, click Port Settings; the 'Basic Channel Information' screen
appears.
Figure 3-33: Basic Channel Information Page
3. To view RTP/RTCP or voice settings, click the relevant button.
