AudioCodes MP-124 User Manual

Version 5.8 209 September 2009
SIP User's Manual 5. Element Management System (EMS)
5.9 Resetting the Device
When you have completed configuring the device, you need to save your settings to the
device's flash memory and reset the device.
¾ To reset the device:
1. In the MG Tree, select the device that you want to reset.
2. In the Information pane, click the Reset button.

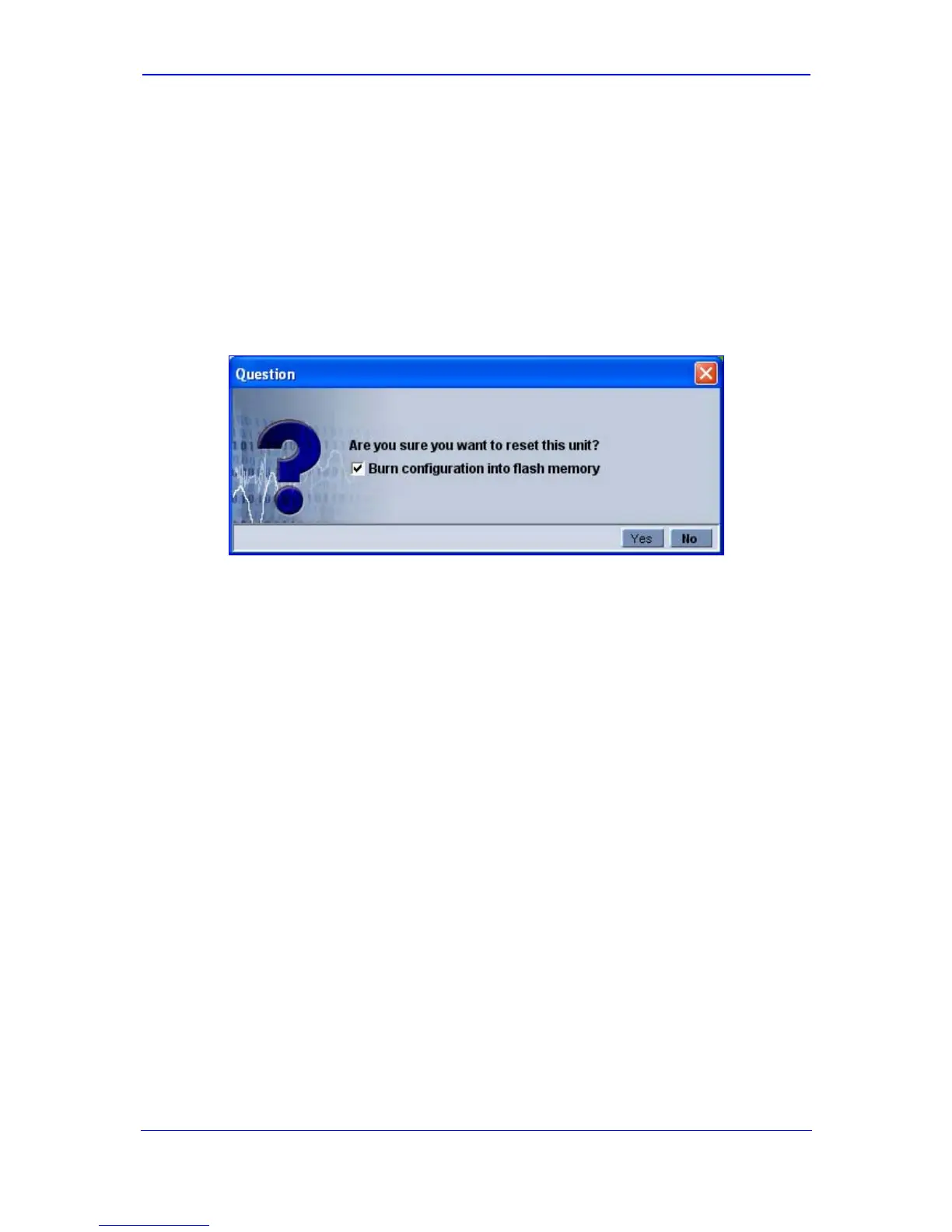

Figure 5-9: Confirmation for Saving Configuration and Resetting Device
3. Ensure that the Burn Configuration into Flash Memory option is selected.
4. Click Yes; the 'Results Table' window appears, displaying the progress of the reset
process.
5. Click Done when complete.

AudioCodes MP-124 Specifications

General

Model	MP-124
Category	Gateway
Analog Ports	24 FXS
Ethernet Ports	2
Protocol Support	SIP, H.323
Fax Support	T.38, G.711 pass-through
Power Supply	100-240VAC, 50-60Hz
Operating Temperature	0°C to 40°C
Voice Codecs	G.711, G.729, G.723.1, G.726
Management	SNMP
Storage Temperature	-20°C to 70°C
Humidity	10% to 90%, non-condensing
Network Interface	10/100Base-T Ethernet
