AudioCodes MP-124 User Manual

Version 5.8 141 September 2009
SIP User's Manual 3. Web-Based Management
¾ To configure the reasons for alternative routing:
1. Open the 'Reasons for Alternative Routing' page (Configuration tab > Protocol
Configuration menu > Routing Tables submenu > Reasons for Alternative
Routing page item).

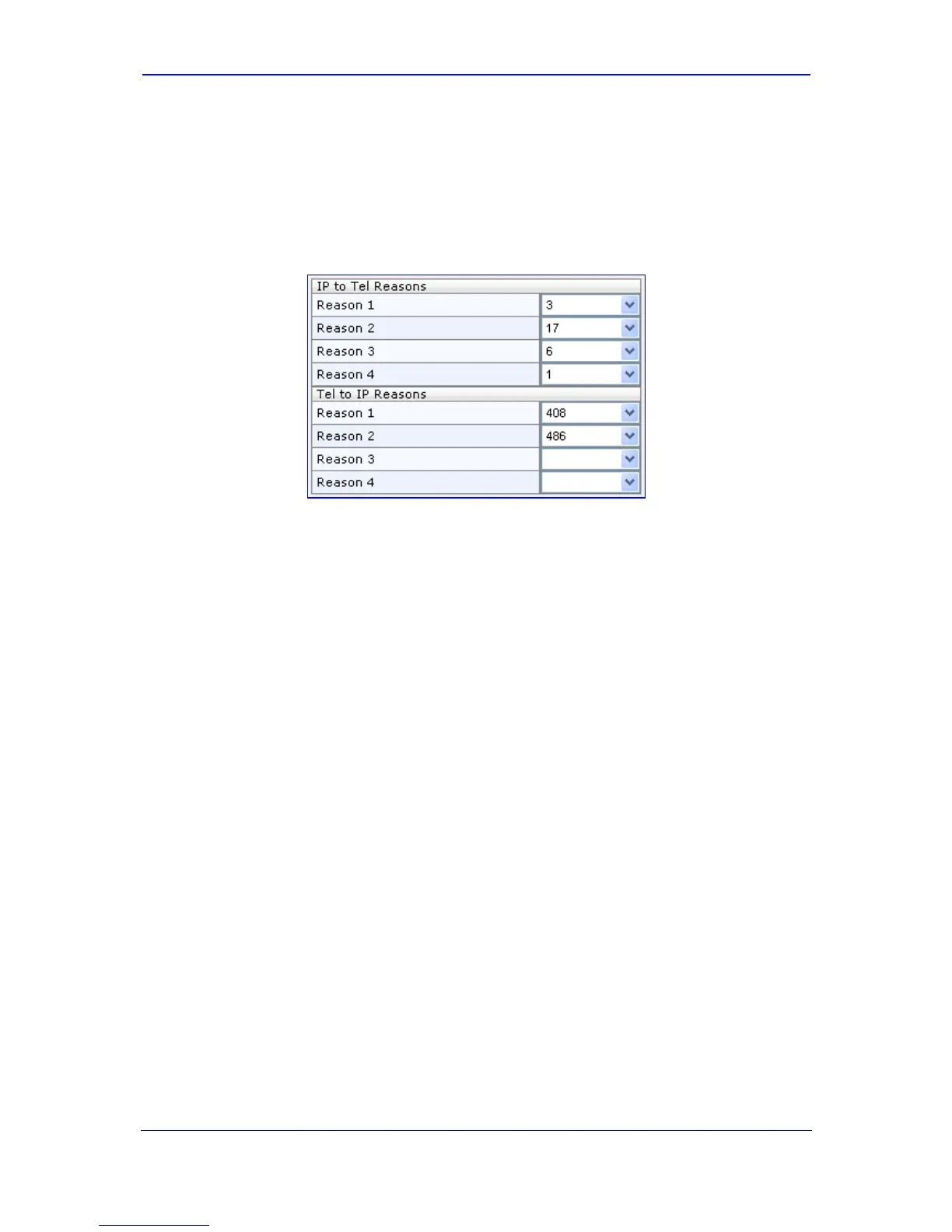

Figure 3-81: Reasons for Alternative Routing Page
2. In the 'IP to Tel Reasons' group, select up to four different call failure reasons that
invoke an alternative IP-to-Tel routing.
3. In the 'Tel to IP Reasons' group, select up to four different call failure reasons that
invoke an alternative Tel-to-IP routing.
4. Click the Submit button to save your changes.
5. To save the changes to flash memory, refer to ''Saving Configuration'' on page 167.

AudioCodes MP-124 Specifications

General

Model	MP-124
Category	Gateway
Analog Ports	24 FXS
Ethernet Ports	2
Protocol Support	SIP, H.323
Fax Support	T.38, G.711 pass-through
Power Supply	100-240VAC, 50-60Hz
Operating Temperature	0°C to 40°C
Voice Codecs	G.711, G.729, G.723.1, G.726
Management	SNMP
Storage Temperature	-20°C to 70°C
Humidity	10% to 90%, non-condensing
Network Interface	10/100Base-T Ethernet
