SIP User's Manual 466 Document #: LTRT-65412
MP-11x & MP-124
10.8.2.2.2 Prefix Length and Subnet Mask Columns
These two columns offer two notations for the mask. You can either enable the Subnet
Mask in dotted-decimal notation, or the CIDR-style representation. Please note that only
one of these is needed. If both are specified, the "Prefix Length" column overrides the
"Subnet Mask" column.

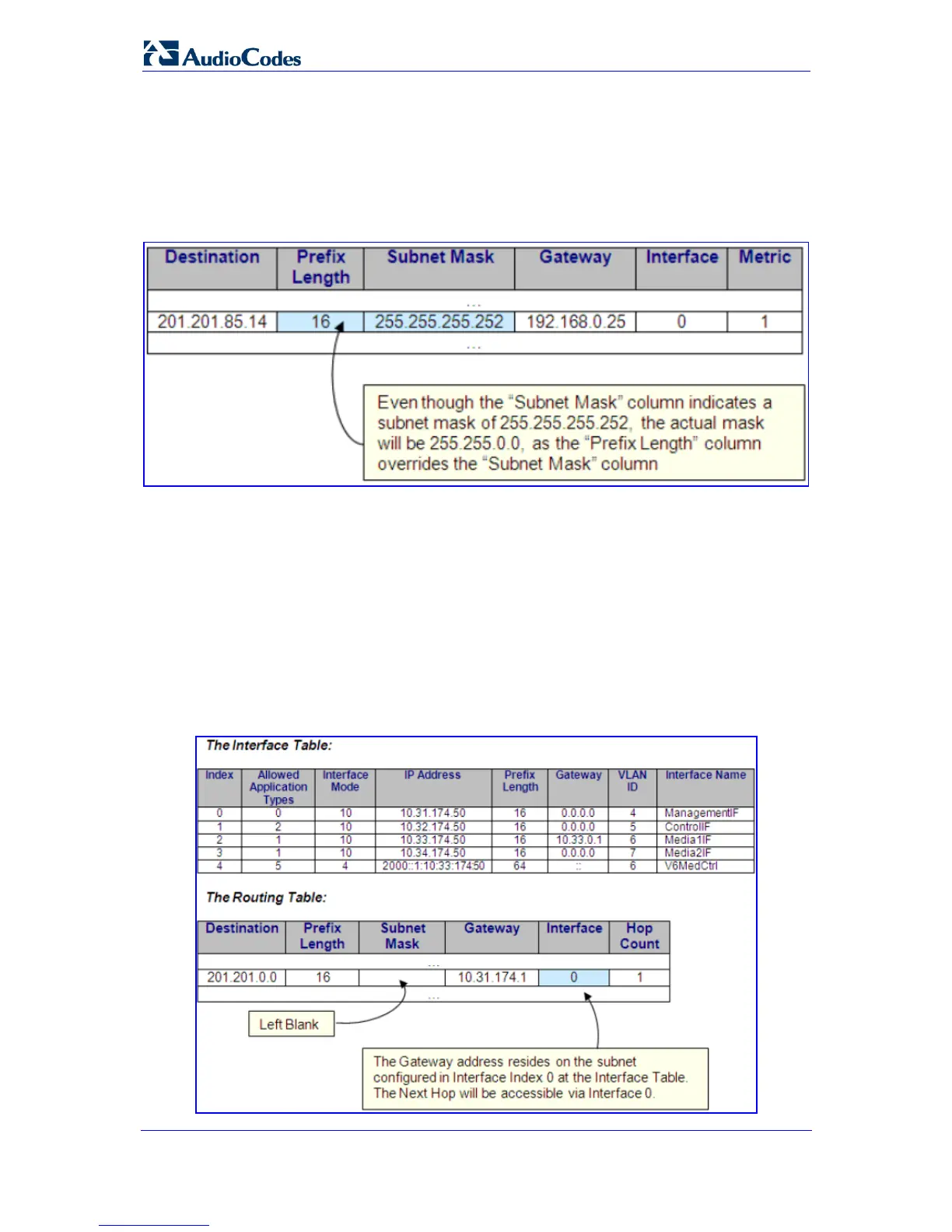

Figure 10-3: Prefix Length and Subnet Masks Columns
10.8.2.2.3 Gateway Column
The Gateway column defines the IP Address of the next hop used for traffic, destined to the
subnet, as specified by the destination/mask columns. This gateway address must be on
one of the subnets on which the address is configured in the Multiple Interface table.
10.8.2.2.4 Interface Column
This column defines the interface index (in the Multiple Interface table) from which the
gateway address is reached.
Equation 1: Interface Column
