ReadoutActive

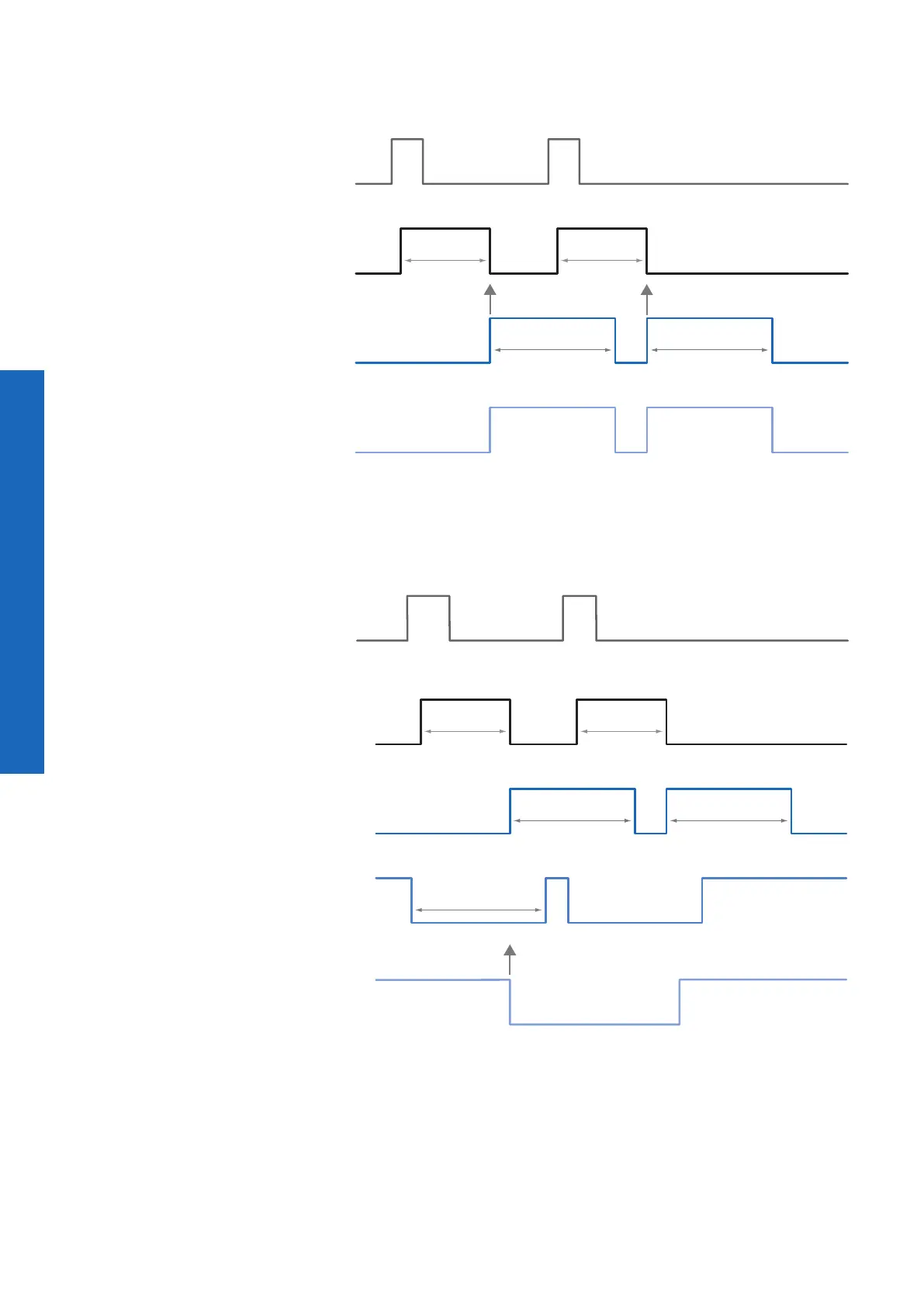

While the sensor is read out, the camera signals this by means of "ReadoutActive".
Exposure
Readout
Event: ReadoutActive
t
exposure(n)
t
readout(n+1)
t
readout(n)
t
exposure(n+1)
Tr
igger
Readout
Active
TransferBu󰀨erFull
This event is issued only in trigger mode. It signals that no bu󰀨er is available.
Exposure
Readout
t
exposure(n)
t
readout(n+1)
t
readout(n)
t
exposure(n+1)
Tr
iggerReady
t
notready
BufferReady
Event: TransferBufferFull
Trigger
