Baumer VCXG Series - Vcxg.I;.Xt;.Ptp; Ethernet Interface; Power Supply and Ios

V4.7 | 06/24/2024 | 11165414
45

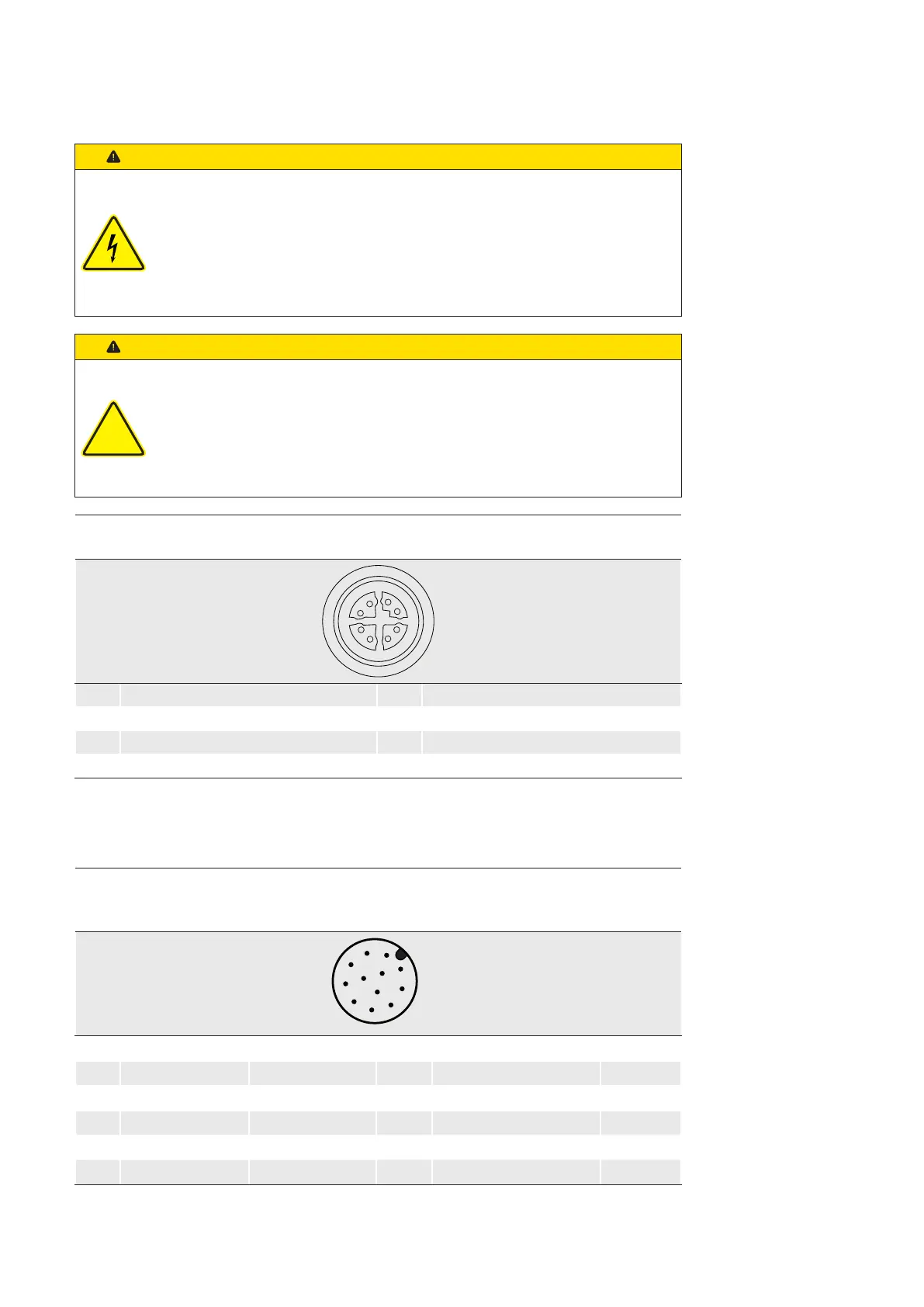

5.2 VCXG.I / .XT / .PTP
5.2.1 Ethernet Interface
Caution!
PowersupplyviaPoEanddigitalIOconnection
The camera supports power supply via PoE (Power over Ethernet) IEEE
802.3af Clause 33, 48V.
Parallel power supply via Ethernet interface and digital IO port is subject to
deviations and toler-ances. These might damage the camera.
Only use a single form of power supply!
Caution!
IP
Protection
In order to achieve the mentioned IP protection level, the M12 connectors
need to be tightened with a torque value of 0.4 Nm.
For that Baumer suggests the use of a torque driver (such as Wiha
TorqueVario
®
-S ESD) in combination with a wrench for assembling sensor/
actuator cables with M12 connector (such as Phoenix Contact SAC BIT
M12-D15).
Ethernet
(SACC-CI-M12FS-8CON-L180-10G)
2
18
7
6
5
4
3
1 MX1+ 5 MX4+
2 MX1- 6 MX4-
3 MX2+ 7 MX3-
4 MX2- 8 MX3+
5.2.2 Power Supply and IOs
Power Supply / Digital-IOs (on camera side)
(SACC-CI-M12MS-12CON-L180)
wire colors of the connecting cable (ordered separately)
8
9
10
11
12
5
7
3
1
4
2
6
1 Power V
CC
brown
7 OUT3 (Line6)
black
2 GND (Power)
blue
8 IN3 (Line2)
grey
3 IN1 (Line0)
white
9 OUT4 (Line7)
red
4 OUT1 (Line4)
green
10 IN4 (Line3)
violet
5 IN2 (Line1)
pink
11 GND (IO) grey-pink
6 OUT2 (Line5)
yellow
12 Power (IO) red-blue
