7.11.6 Category: ImageFormatControl → CalibrationControl (MP cameras
only)
That is the category that contains features to control the calibration of the four polarized
light channels.
The Baumer polarization cameras are based on the Sony IMC250MZR Sensor. This sen-
sor is coated with a metal-mesh which lters the polarization information on 4 adjacent
pixels. The polarization angle is ltered with an alignment of 0°, 45°, 90° and 135°.
With this information the following data can be calculated:
BaumerGAPIv2.9 BaumerGAPIv2.10 BaumerGAPIv2.11 BaumerGAPIv2.12
ADOLP ADOLP ADOLP ADOLP
AOP AOP AOP AOP
DOLP DOLP DOLP DOLP
Intensity Intensity Intensity Intensity
POL0 POL0 POL0
POL45 POL45 POL45
POL90 POL90 POL90
POL135 POL135 POL135
POLMIN POLMIN POLMIN
POLMAX POLMAX POLMAX
POL
UNPOL

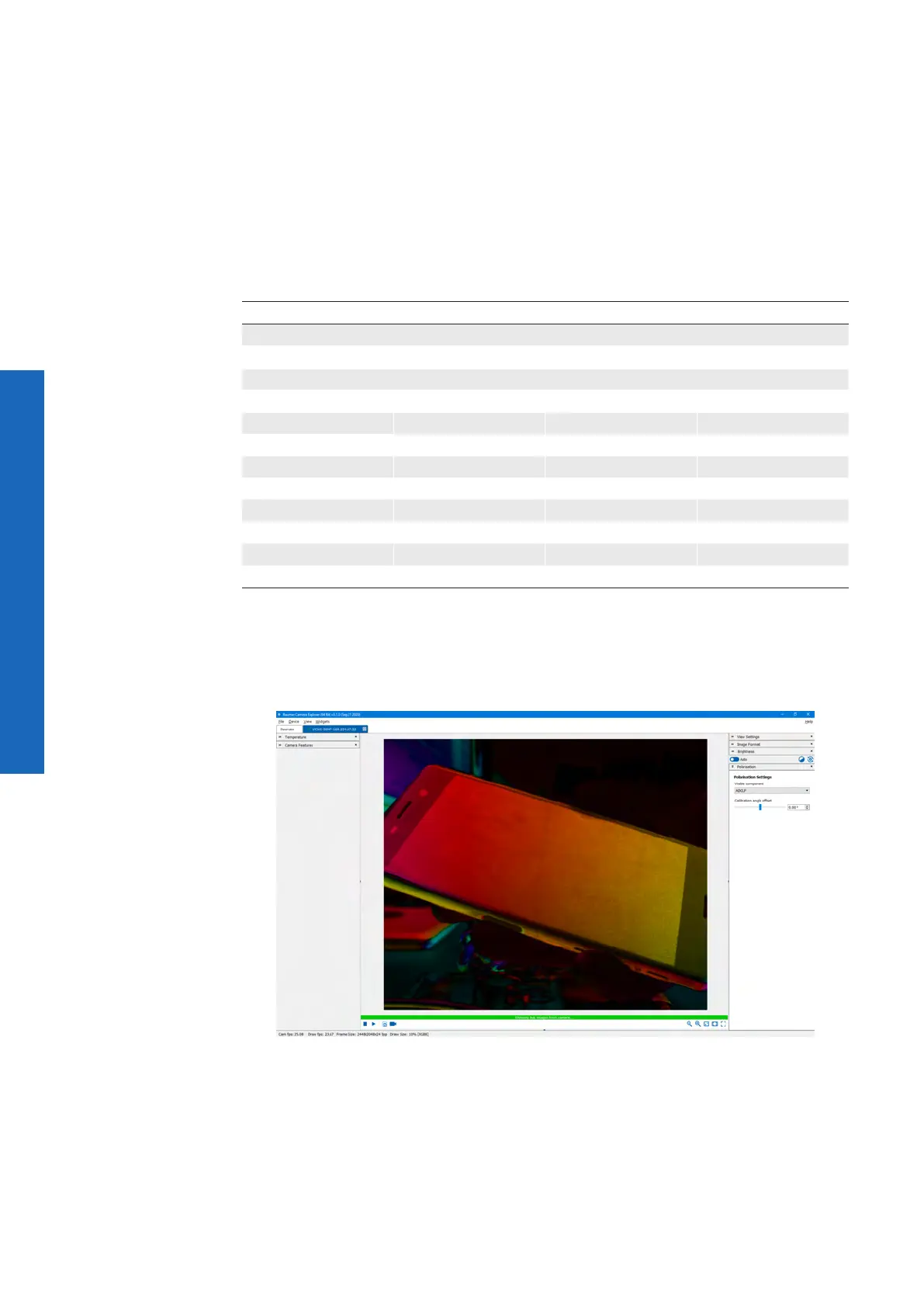

The Camera Explorer can also be used to view and save polarization data in these for-
mats. The conguration is done in the Polarization widget.
