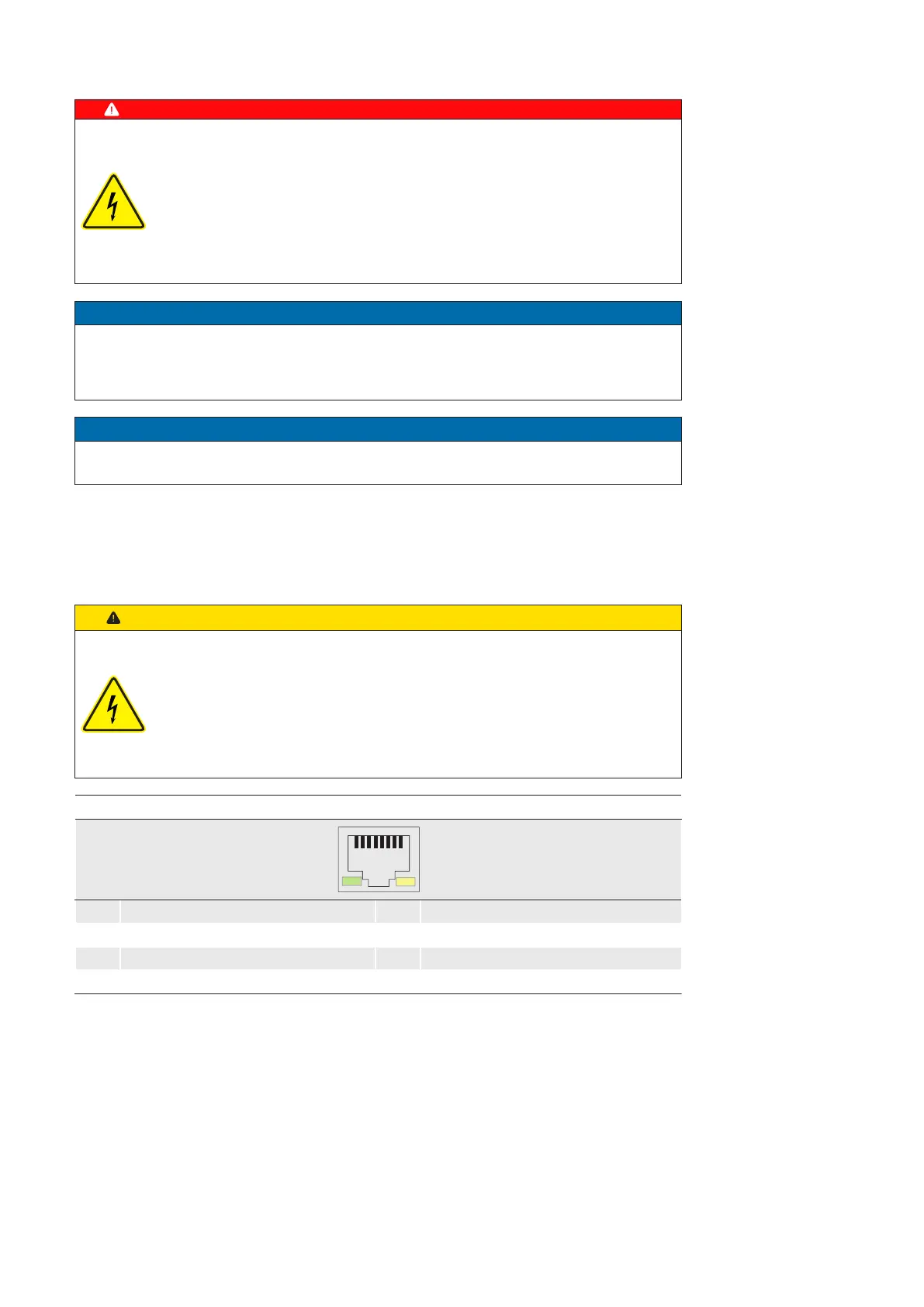

5. Pin-Assignment / LED-Signaling
Danger!
UseinwetenvironmentsrequiringIP67protection
Risk of electric shock. Electric shock can be fatal or cause serious injury.
Use is only permitted under consideration of pollution degree 2 and overvoltage cat-
egory 2.
The M12 connectors must comply with the IEC 61076-2-101 standard.
The dielectric strength and withstand voltage for the plug/socket combination must be
checked according to DIN EN 60664-1:2008-01 for 60 V.
Notice
Class 2 per NEC / Protection Class III
The device is intended to be supplied from an isolated Limited Energy Source per
UL61010-1, 3rd ed cl. 9.4 or Limited Power Source per UL60950-1 or Class 2 per NEC.
Notice
The unit is to be connected only to internal Ethernet networks without exiting a facility
and being subjected to Telecommunication Network Voltages (TNVs).
5.1 VCXG / .PTP / .XC
5.1.1 Ethernet Interface
Caution!
PowersupplyviaPoEanddigitalIOconnection
The camera (except .XC) supports power supply via PoE (Power over Eth-
ernet) IEEE 802.3af Clause 33, 48V.
Parallel power supply via Ethernet interface and digital IO port is subject to
deviations and toler-ances. These might damage the camera.
Only use a single form of power supply!
8P8C Modular Jack (RJ45) with LEDs
1
8
1 MX1+ 5 MX3-
2 MX1- 6 MX2-
3 MX2+ 7 MX4+
4 MX3+ 8 MX4-
