Baumer VCXG Series - Testpatterngeneratorselector; Width

V4.7 | 06/24/2024 | 11165414
173
GreyVerticalRampHorizon-
talLineMoving
Image is lled vertically with an image that goes from the
darkest possible value to the brightest with moving hori-
zontal lines.
GreyVerticalRampVertical-
LineMoving
Image is lled vertically with an image that goes from the
darkest possible value to the brightest with moving verti-
cal lines.
HorizontalAndVerticalL-
ineMoving
Image is lled with moving horizontal and vertical lines.
HorizontalLineMoving Image is lled with moving horizontal lines.
O󰀨 Image is coming from the sensor.
VerticalLineMoving
Image is lled with moving vertical lines.
7.11.23 TestPatternGeneratorSelector
Selects which test pattern generator is controlled by the TestPattern feature.
Name TestPatternGeneratorSelector
Category ImageFormatControl
Interface IEnumeration
Access Read / Write
Unit -
Values
ImageProcessor TestPattern feature will control the image processor.
Sensor Processor
TestPattern feature will control the sensor proces-
sor.

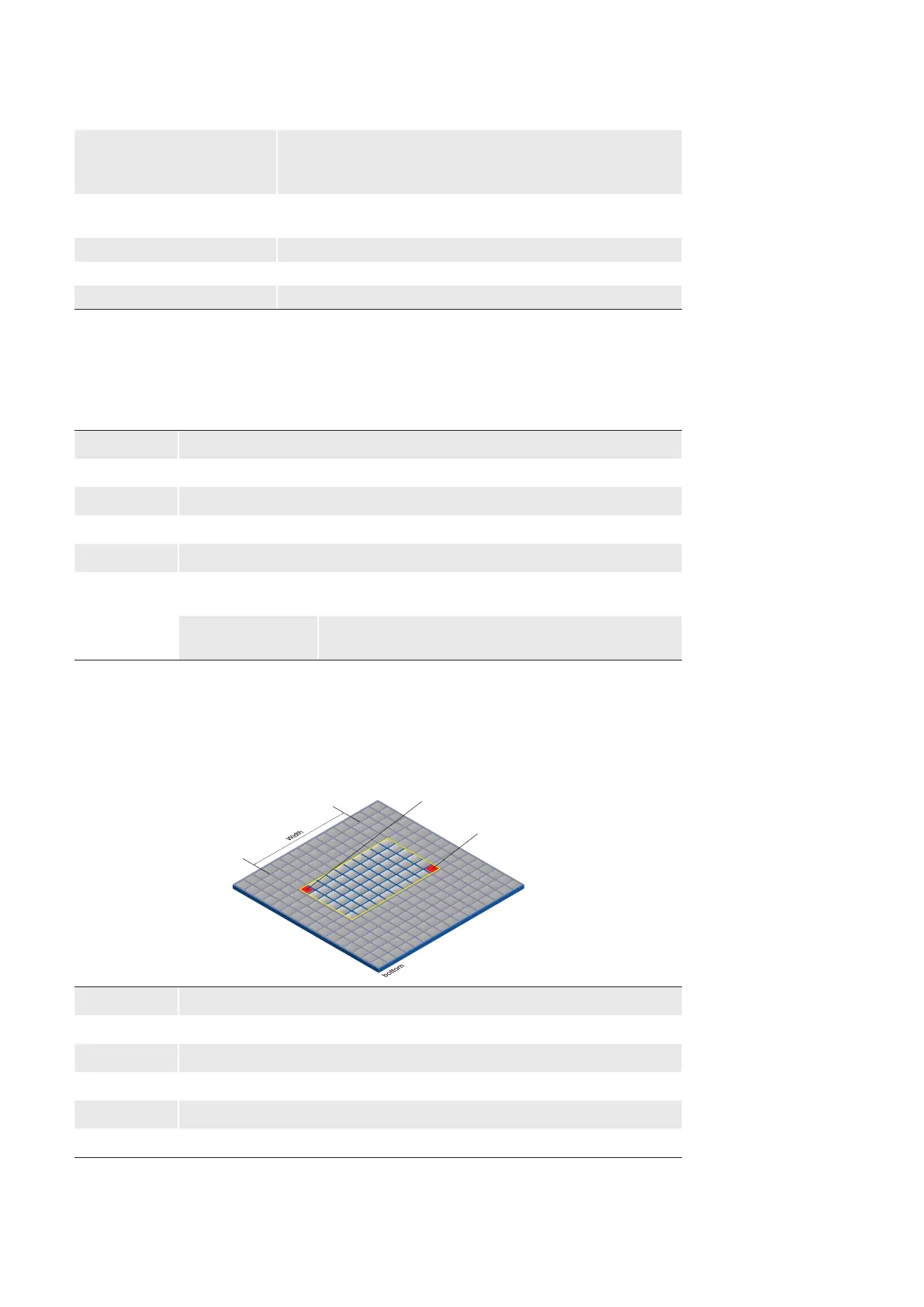

7.11.24 Width
Width of the image provided by the device (in pixels).
Start ROI
End ROI
Name Width
Category ImageFormatControl
Interface IInteger
Access Read / Write
Unit -
Values see tables below
