4.4 IP Protection classes (VCXG.I / .I.XT)
Notice
Denition IP65 / IP67
IP65 say that the camera housing is dust tight and hose-proof. That means it is protect-
ed against water jet that is projected by a nozzle striking the housing from any direction.
IP67 stands for dust tightness besides the protection against submersion into 1 meter
deep water for up to 30 minutes. The desired protection level is given as long as the
di󰀨erence in temperature between camera and water is less than 5 K and the water has
a temperature of 15 °C (+ 59 °F) ... 35 °C (+ 95 °F).
Notice
The IP Protection classes for VCXG, VCXU and VCXG.XC was not evaluated by UL.
Caution
IP
Protection
In order to achieve the mentioned IP protection level, please note the follow-
ing information:

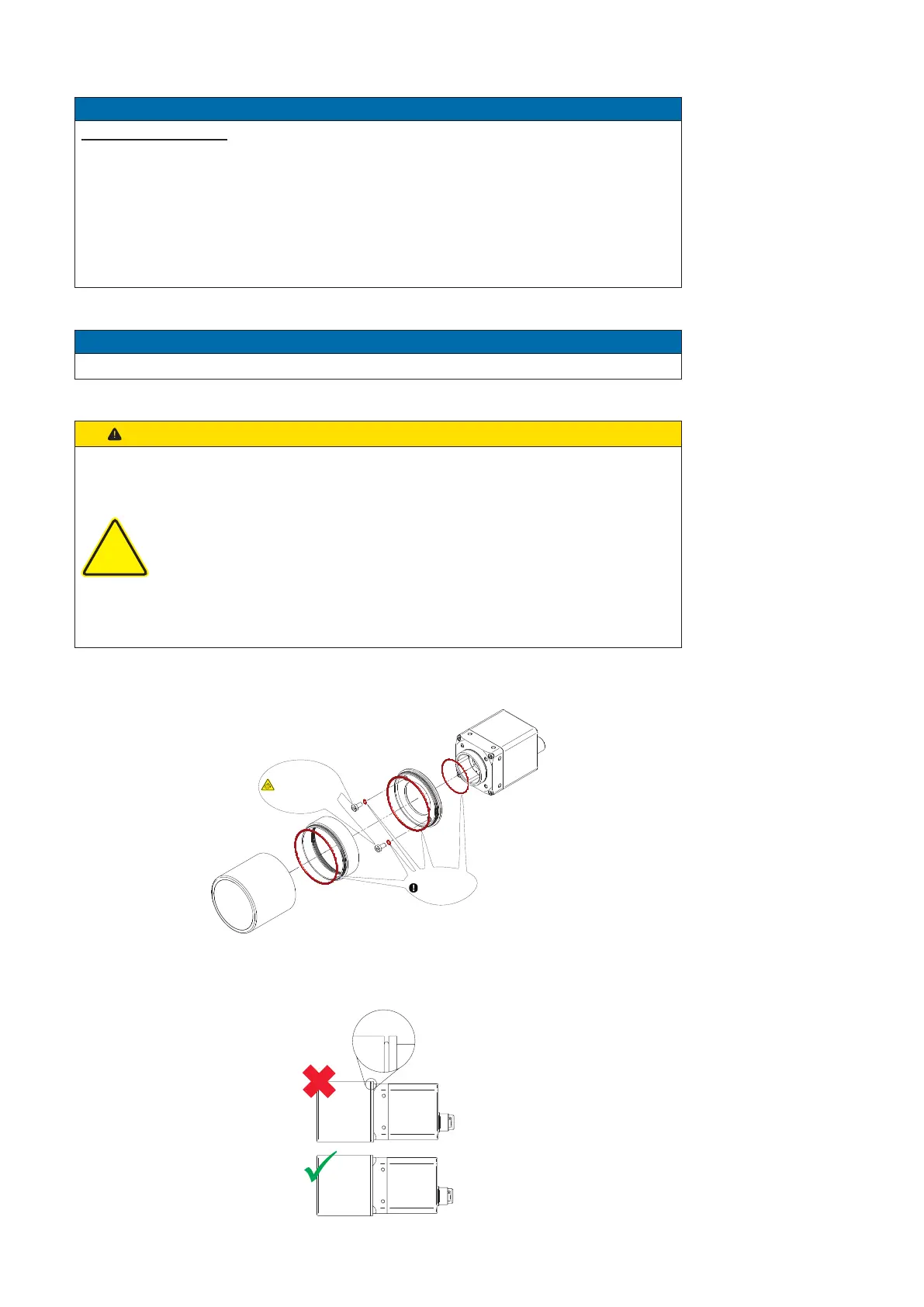

The tube needs to be screwed on gap-free as shown in the gure below.
The M12 connectors need to be tightened with a torque value of 0.4 Nm.
For that Baumer suggests the use of a torque driver (such as Wiha
TorqueVario
®
-S ESD) in combination with a wrench for assembling sensor/
actuator cables with M12 connector (such as Phoenix Contact SAC BIT
M12-D15).
Sealing rings
The peak torque while
tightening the
screws is 0.9 Nm.
Use a torque wrench!
Do not forget the seals!
Recommended grease
for easier installation:
ELKALUB GLS 867
Gap-free assembly
